Repair Procedures

REPLACEMENT

SUNROOF ASSEMBLY REPLACEMENT
1. Remove the follows parts.
A. Front and door scuff trim.
B. Front, center and rear pillar trim.
C. headlining.
D. Sunroof glass.

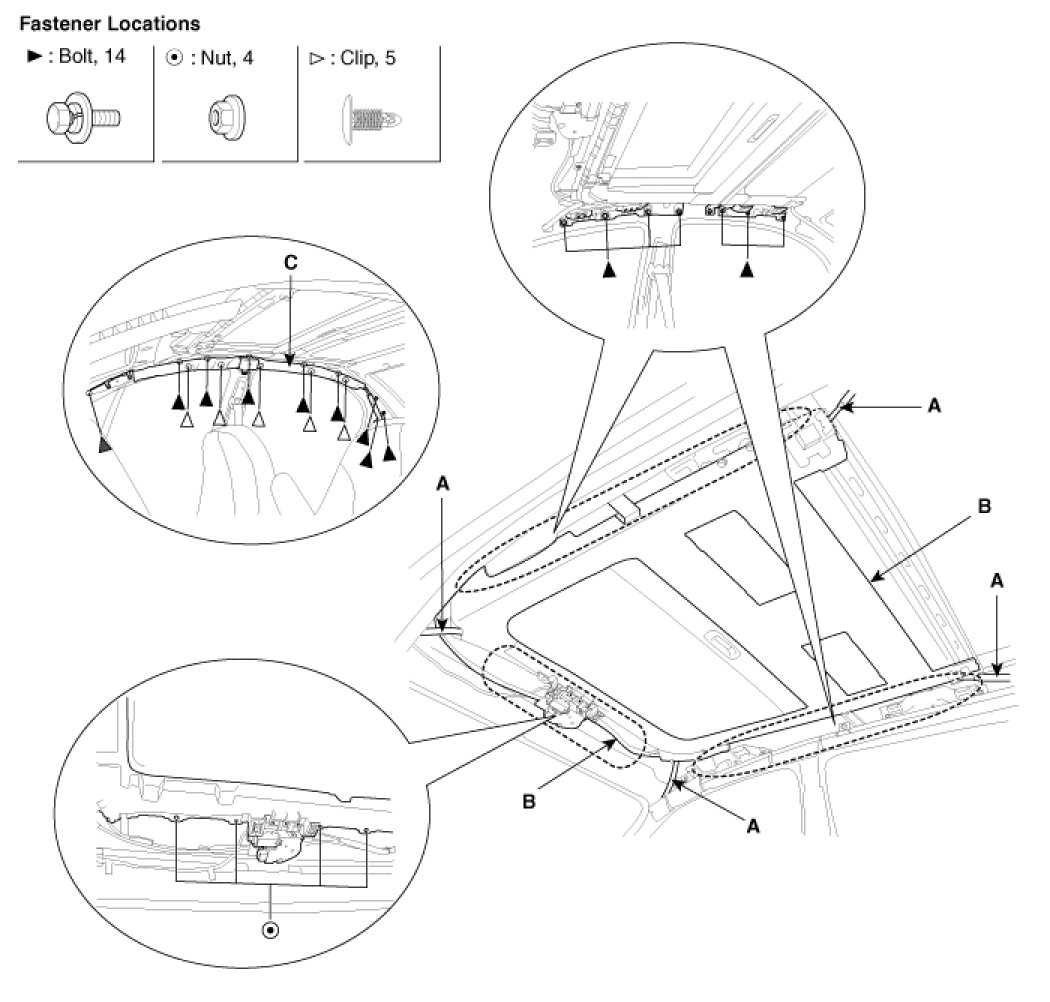

2. Disconnect the drain tubes (A).
3. After loosening the mounding bolts and nuts, remove the sunroof assembly (B).

NOTE:
1) Take care not to scratch the interior trims and other parts.

4. Installation is the reverse of removal.
