Crash Pad Main Replacement

REPLACEMENT

CRASH PAD MAIN REPLACEMENT

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the following items.
A. Front seat assemble.
B. Cluster facia panel, cluster.
C. Lower crash pad.
D. Glove box.
E. Side cover.
F. Front pillar trim.
G. Center facia upper, lower cover.
H. Cowl side trim.

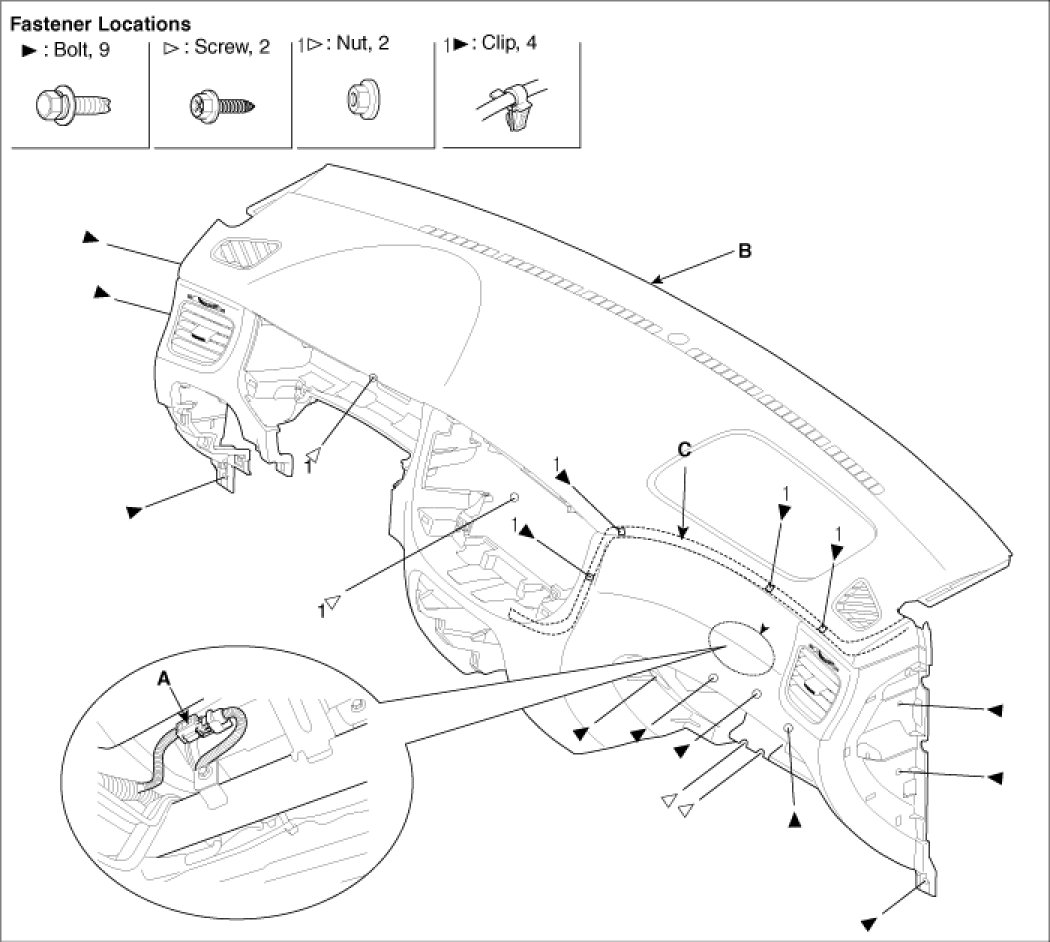

2. Disconnect the passenger's air bag connector(A).
3. Loosen the bolt`s and nuts then remove the main crash pad assemble(B).
4. Installation is the reverse of removal.

NOTE:
- Make sure the crash pad fits on to the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
