General Information

General Description

A barometric pressure sensor is installed within the ECM to permit altitude corrections to be applied to fuel injection quantity calculations.

DTC Description

If the output of ambient pressure sensor is over 4.8 V, PCU sets DTC P2229.

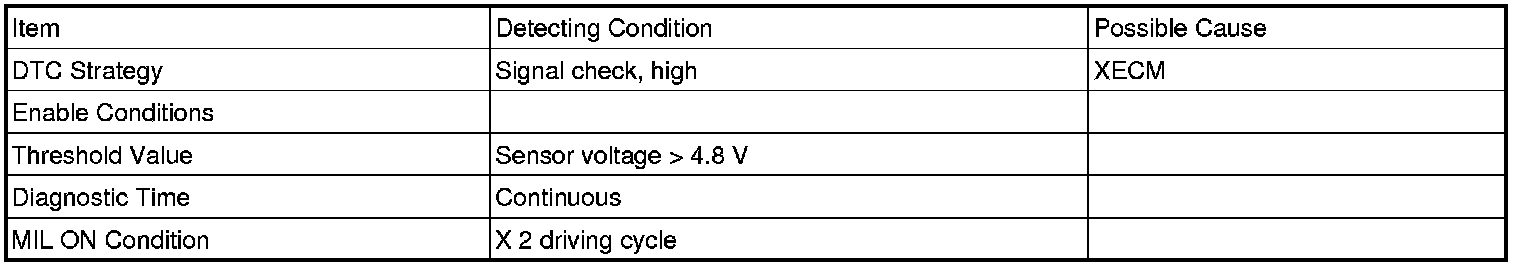

DTC Detecting Condition
