General Information

Component Location





General Description

PCM monitors errors through checksum. Every information consists of the combination of 0 and 1, checksum means summing up all values in a row. Thus, errors are recognized comparing checksum value and the memory value at PCM.

DTC Description

ECM detects the signal exchanges between micro-processor and sensor/actuator.

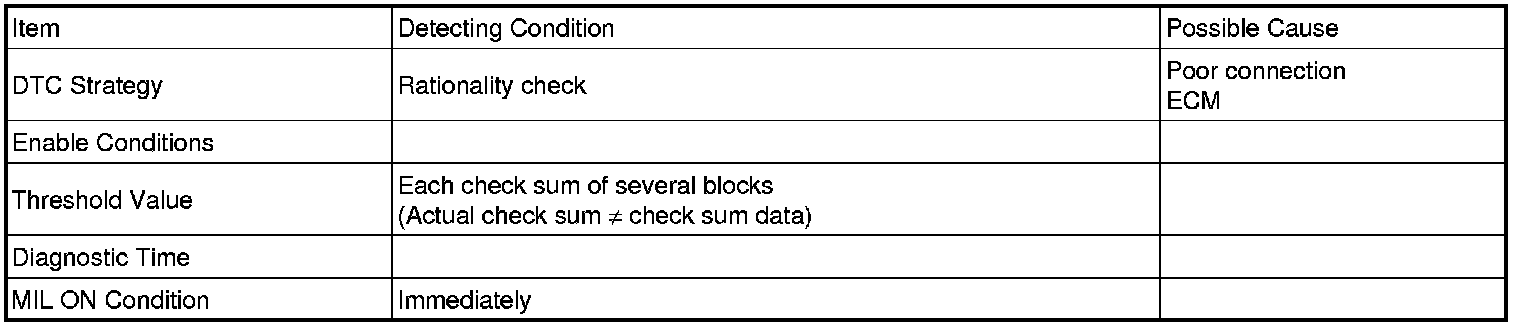

DTC Detecting Condition
