Home >> Kia >> 2007 >> Optima V6-2.7L VIN 4 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution and Passenger Compartment Fuse Details >> Wiring Diagram Index

Wiring Diagram Index

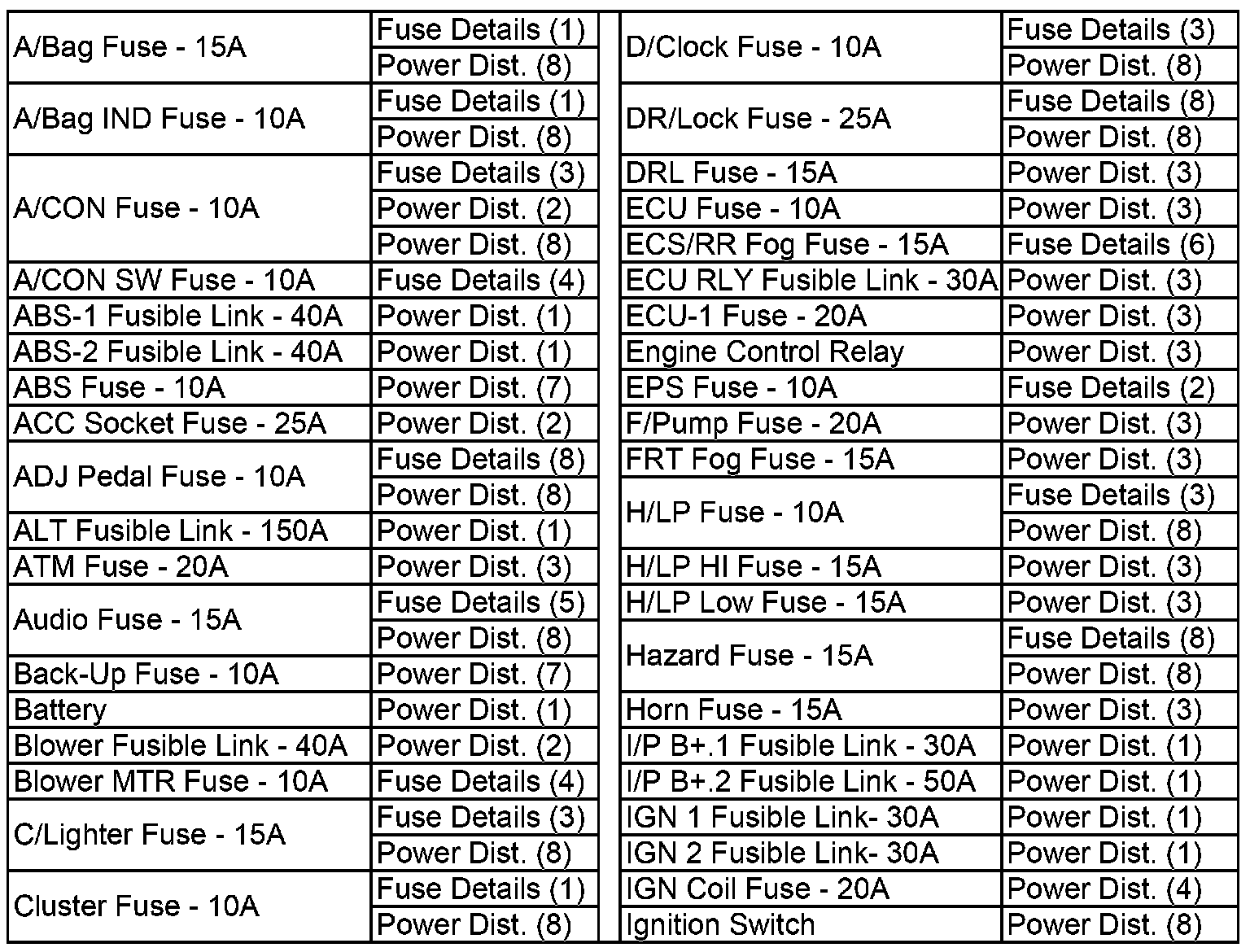

A/Bag Fuse 15A - Ignition Switch:

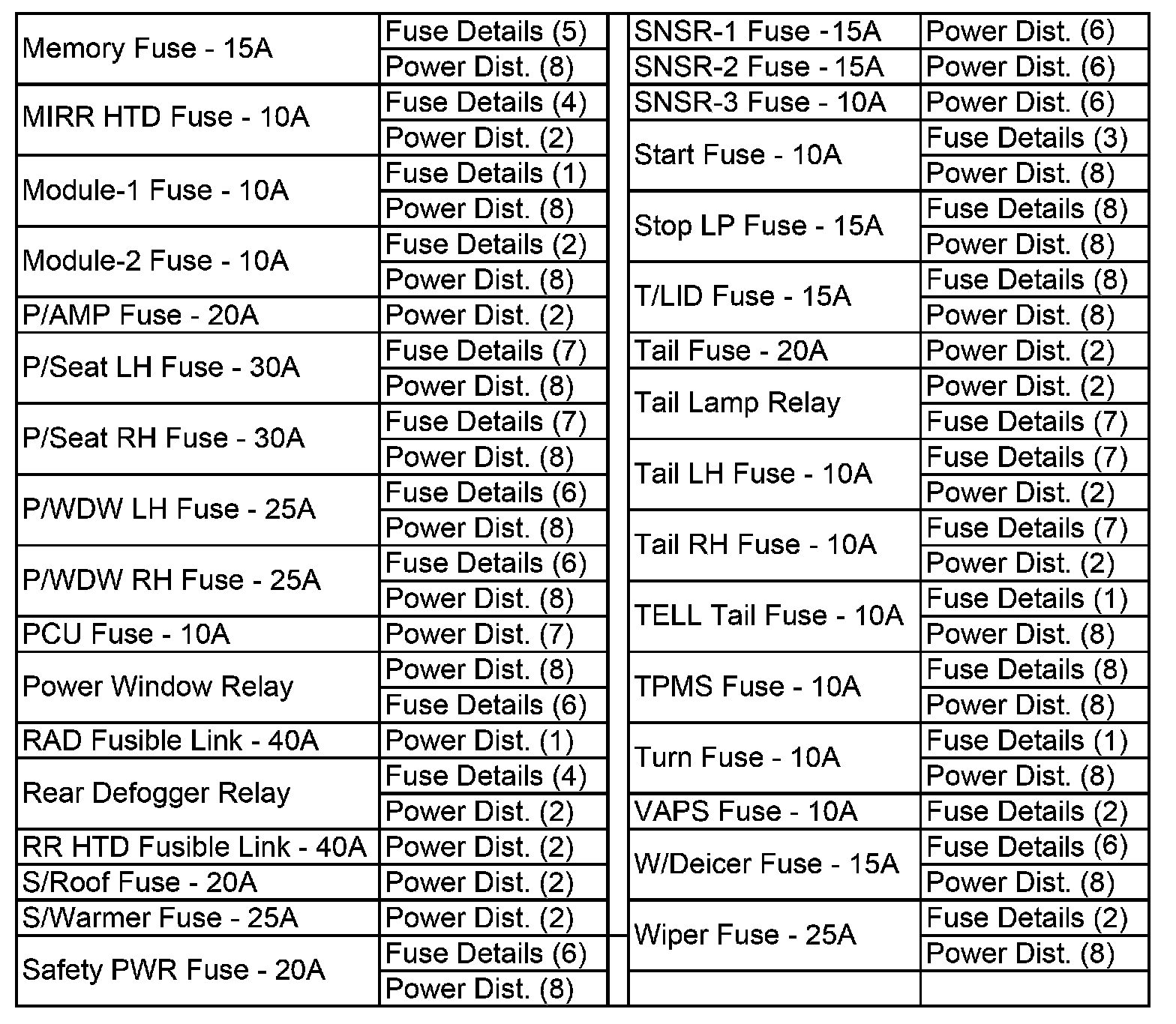

Memory Fuse 15A - Wiper Fuse 25A:
