Variable Induction Control Actuator: Description and Operation

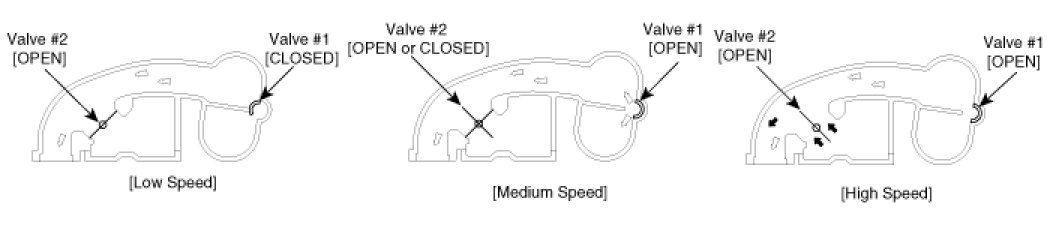

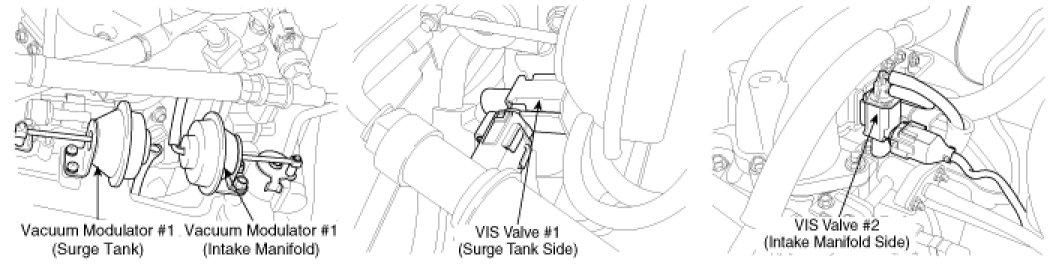

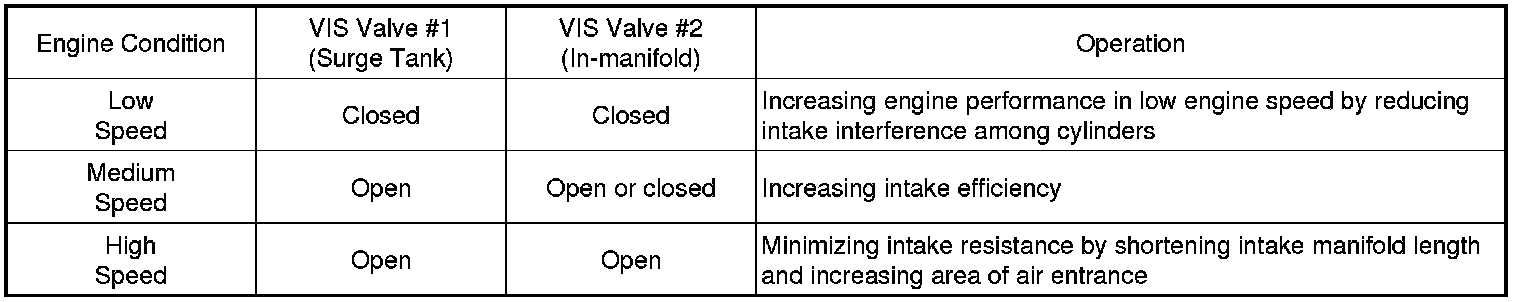

Variable Intake manifold Solenoid (VIS) valves are installed on surge tank (VIS Valve #1) and intake manifold (VIS Valve #2). These VIS valve #1 and #2 control vacuum modulators which activate valves in surge tank and intake manifold. These valves are opened or closed by PCM according to engine condition (Refer to below table).
