Lighting and Horns: Service and Repair
INSPECTION
1.
The Auto Light system will activate if the
headlamp switch

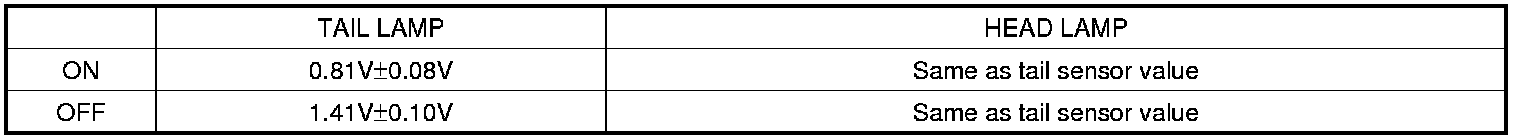

is in the AUTO position; the chart shows the ON/OFF thresholds of the system.

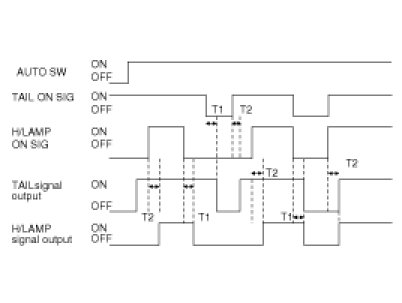

T1/T2 : 2.0 ± 0.2sec.
