Intake Manifold: Specifications

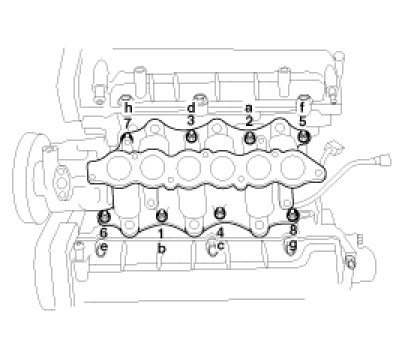

Install the intake manifold assembly with a new gasket to a cylinder head assembly. Tighten the bolts in two steps.

Tightening torque: Step 1(a-h): 3.9-5.9Nm (0.4-0.6kgf.m, 2.9-4.3lb-ft) / Step 2(1-8): 18.6-23.5Nm (1.9-2.4kgf.m, 13.7-17.4lb-ft)





CAUTION:
When installing the gasket on the cylinder head, check the identification marks(LH/RH) not to be installed wrong.
