Antitheft Antenna: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

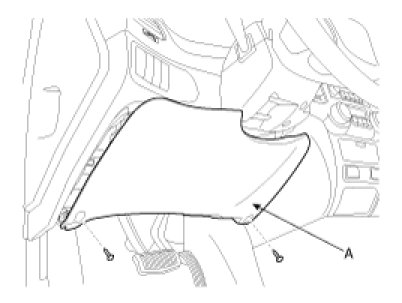

2. Remove the driver lower crash pad panel (A).




3. Remove the steering column cover.

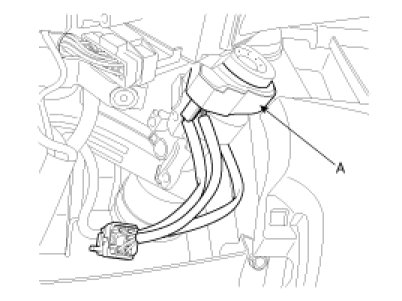

4. Disconnect the 6P connector of the coil antenna and then remove the coil antenna (A) after loosening the screw.




5. Installation is the reverse of removal procedure.
