General Information





Component Location





General Description

The idle speed is controlled by the Electrical Throttle Control (ETC) System. ETC system is composed of the throttle motor to operate the throttle valve and the throttle position sensor to detect the opening angle of the throttle valve, the accelerator pedal position sensor to detect the accelerator pedal position and the one valve type throttle body. The PCM controls the throttle motor to provide the proper throttle valve opening angle for the target idle speed.

DTC Description

Checking idle RPM under detecting condition, if the idle speed is more than 200 RPM above desired idle speed, PCM sets P0507. MIL (Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle

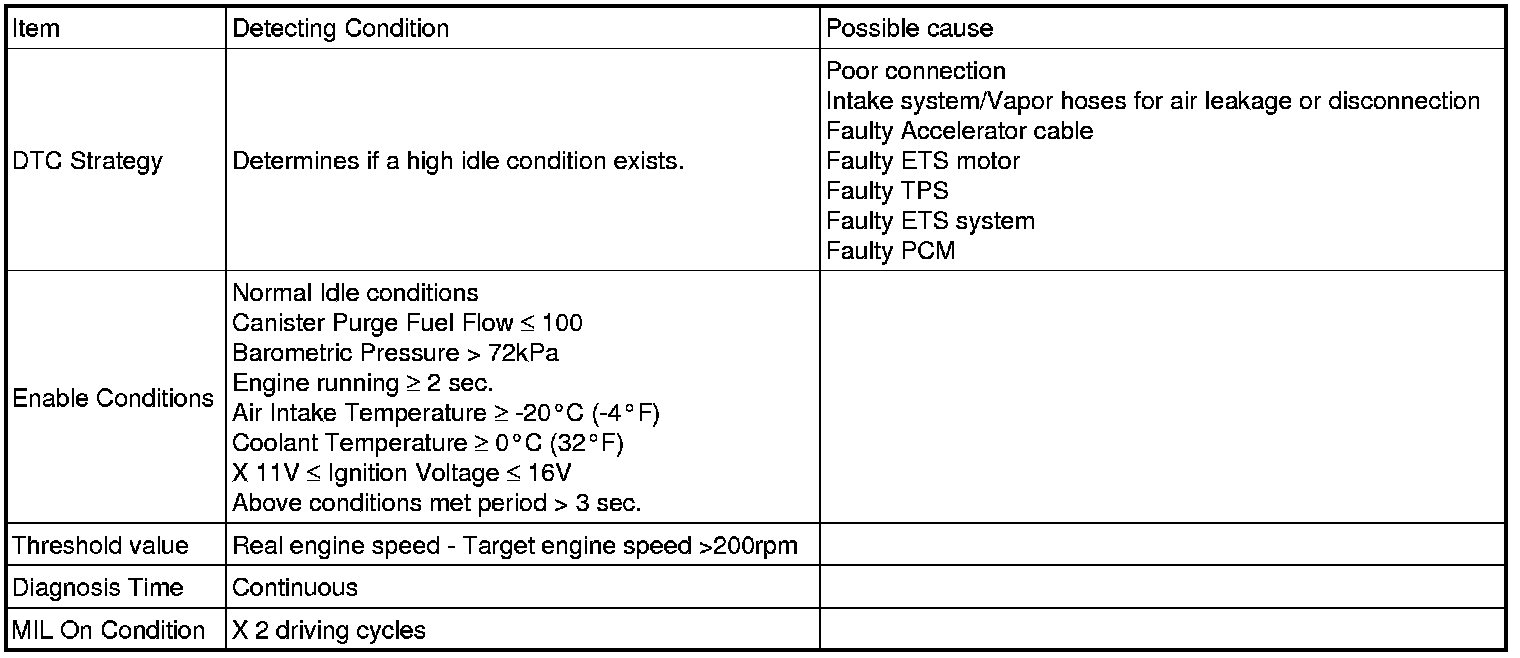

DTC Detecting Condition





Schematic Diagram
