Home >> Kia >> 2007 >> Optima V6-2.7L VIN 4 >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Engine Control System

Engine Control System

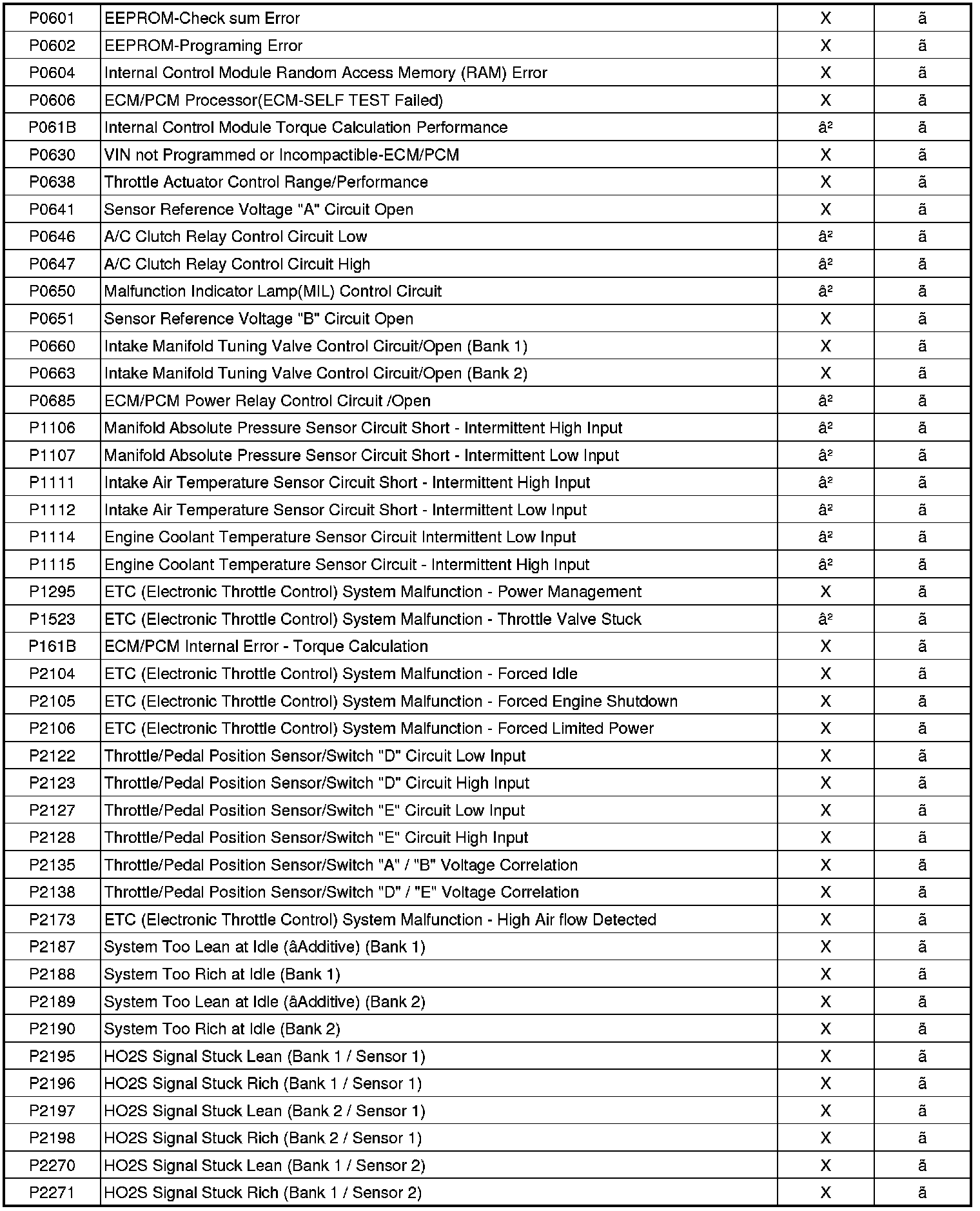

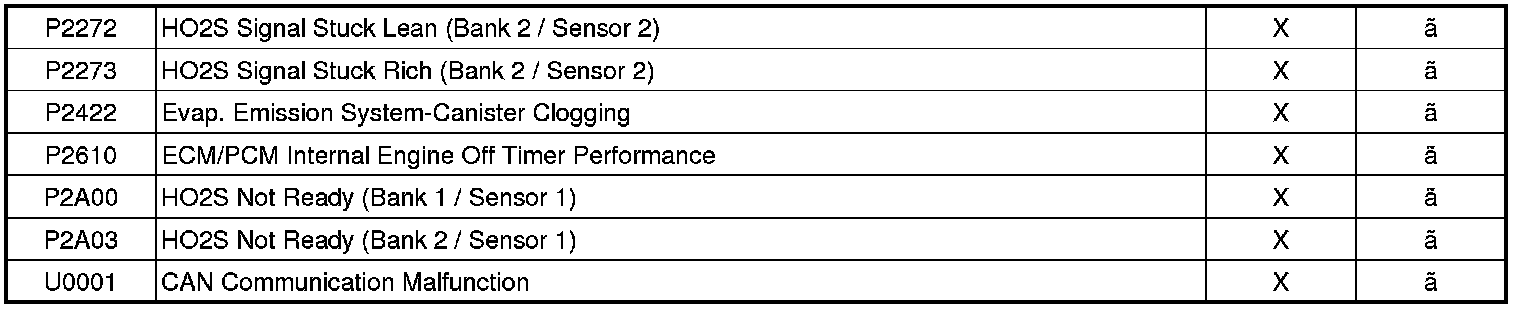

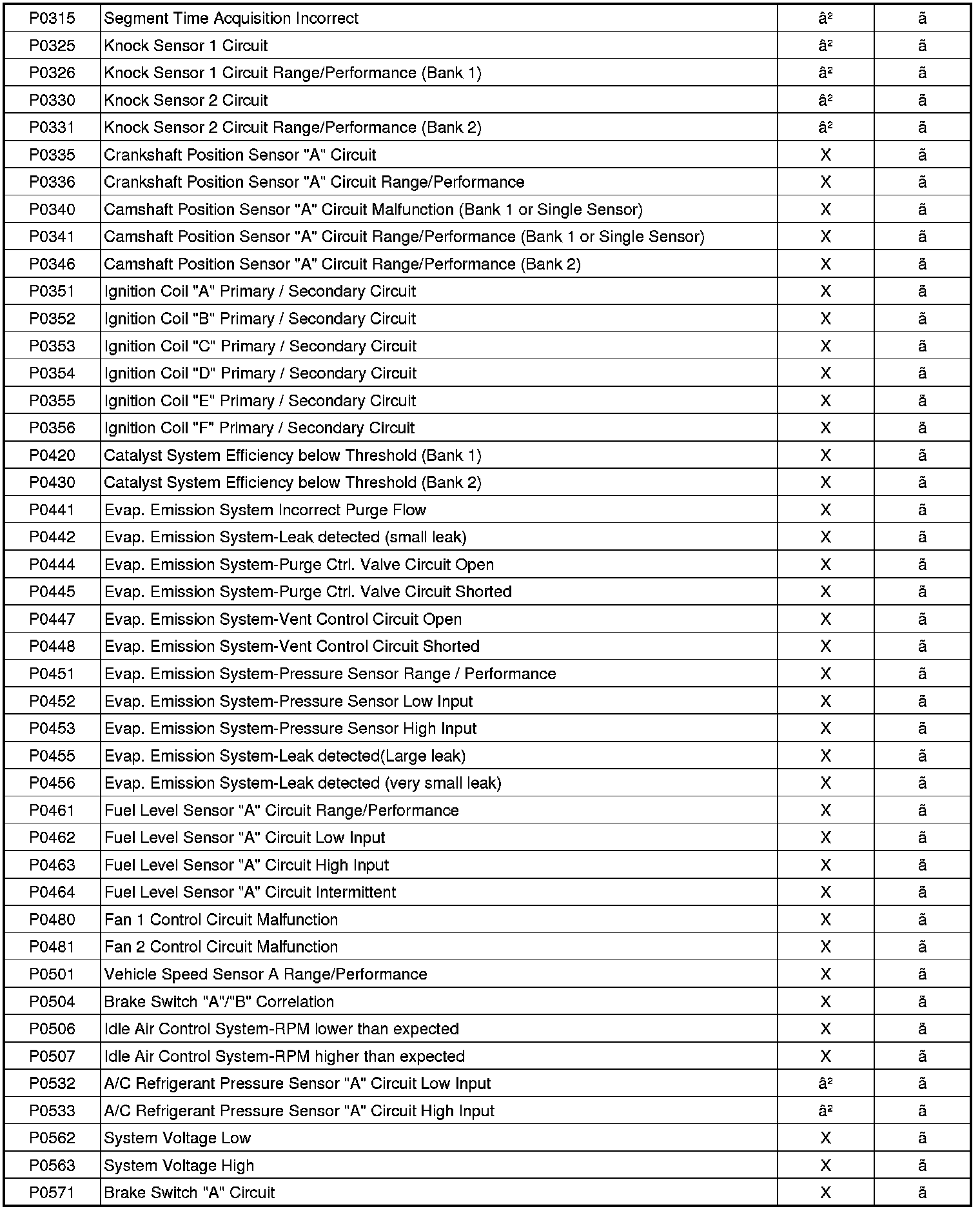

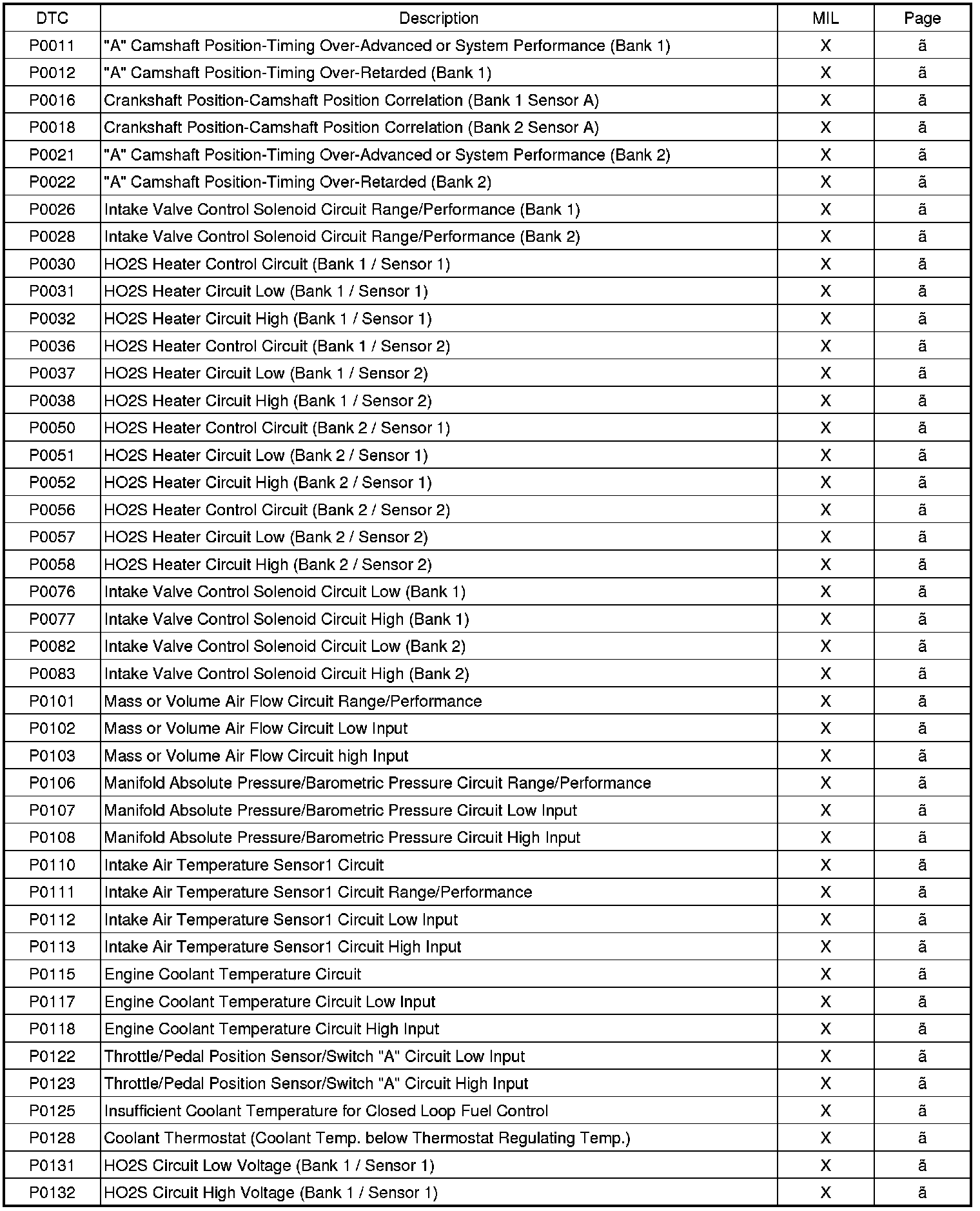

INSPECTION CHART FOR DIAGNOSTIC TROUBLE CODES (DTC)






















NOTE:
X: MIL ON & MEMORY
▲: MIL OFF & MEMORY
