Home >> Kia >> 2007 >> Magentis (CANADA) V6-2.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection

Automatic Transmission/Transaxle: Testing and Inspection

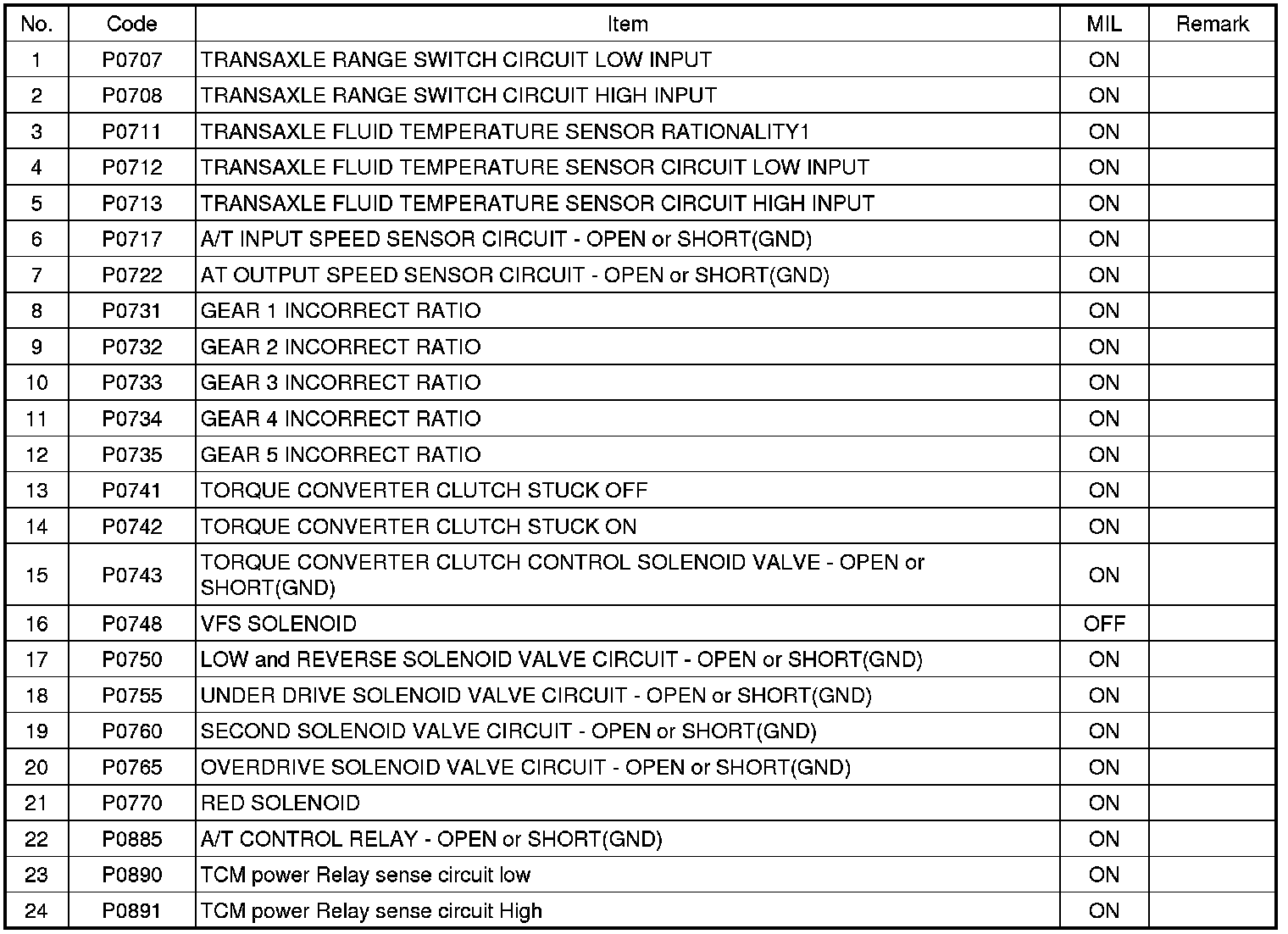

INSPECTION CHART FOR DIAGNOSIS TROUBLE CODES (DTC)

[2.4 GSL]





[2.7 GSL]

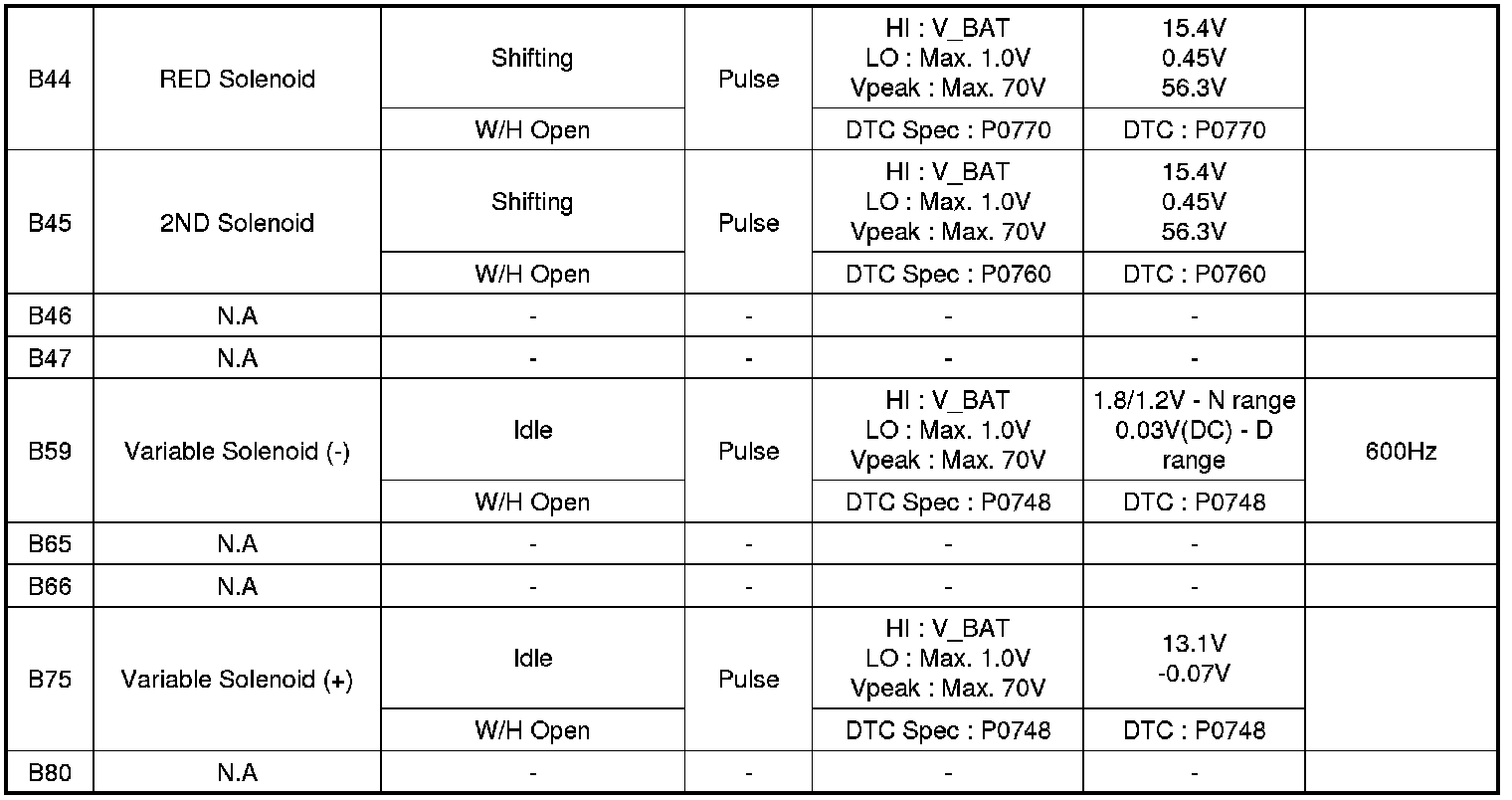

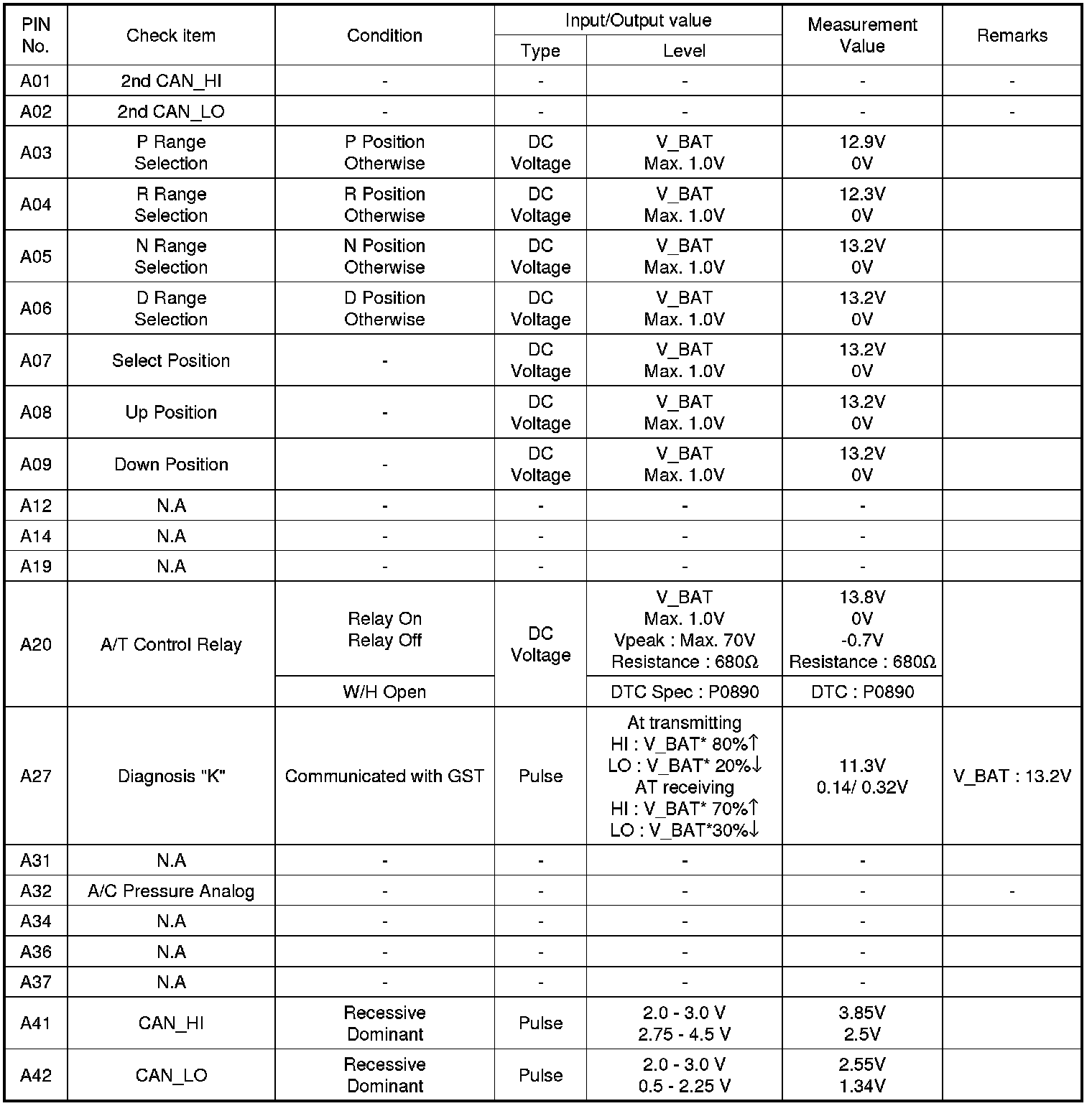

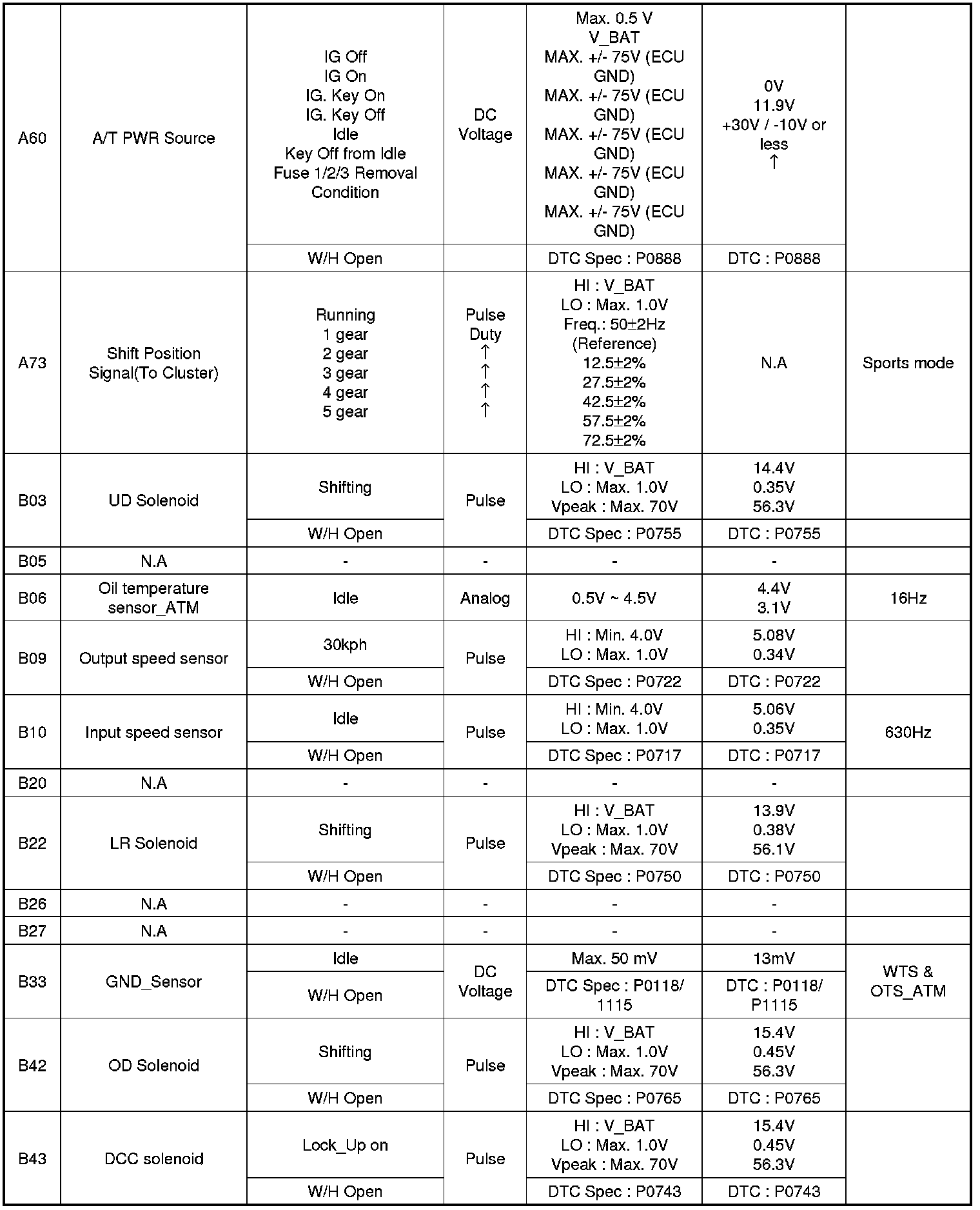

INPUT/OUTPUT SIGNAL VOLTAGE CHECK SHEET
