Seat Position Sensor: Service and Repair




REMOVAL

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
2. Remove the front seat assembly.

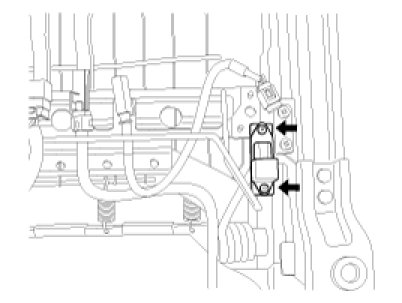

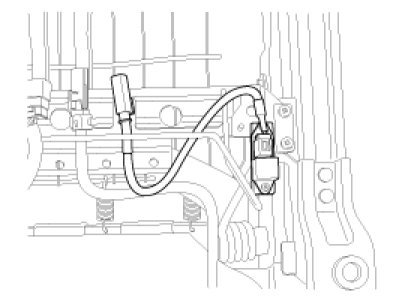

3. Disconnect the STPS connector and loosen the two STPS screws.






INSTALLATION

CAUTION:
Ensure that the harness is installed and routed properly to prevent damage to the wiring.

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
2. Remove the ignition key from the vehicle.
3. Install the STPS with two screws.




4. Install the front seat assembly.
5. Reconnect the battery negative cable.
6. After installing the Seat Track Position Sensor, confirm proper system operation:
Turn the ignition switch ON, the SRS indicator should be turned on for about six seconds and then go off.
