Fuel Tank Pressure Sensor: Specifications


FUEL TANK PRESSURE SENSOR (FTPS)

- Type: Piezo-Resistivity type

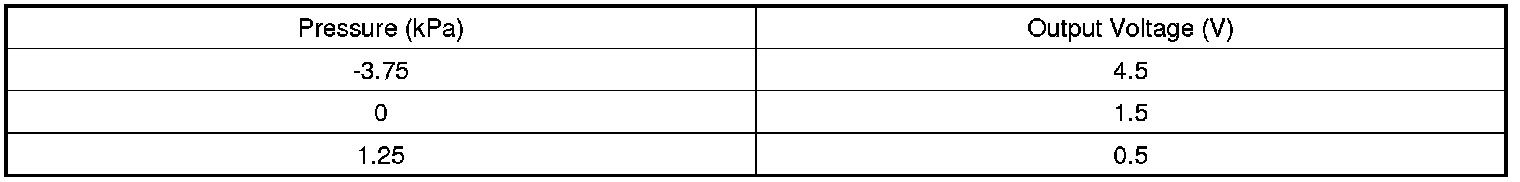

- Specification
