Repair Procedures

REPLACEMENT

FRONT DOOR AND REAR DOOR SCUFF TRIM REPLACEMENT

NOTE:
a. Put on gloves to protect your hands.
b. When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
c. Take care not to bend or scratch the trim and panels.

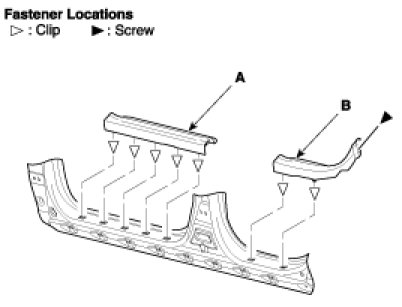

1. Remove the front door scuff trim (A).
2. Remove the rear door scuff trim (B).




3. Installation is the reverse of removal.

NOTE:
a. Replace any damaged clips.

FRONT PILLAR TRIM REPLACEMENT

NOTE:
a. Put on gloves to protect your hands.
b. When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
c. Take care not to bend or scratch the trim and panels.

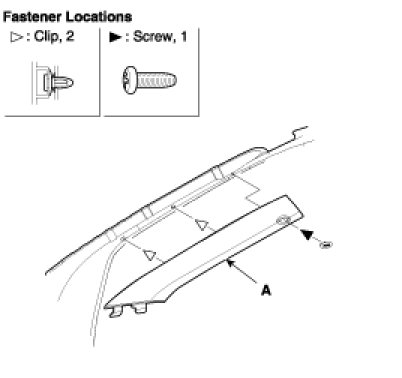

1. Remove the front pillar trim (A).




2. Installation is the reverse of removal.

NOTE:
a. Replace any damaged clips.

COWL SIDE TRIM REPLACEMENT

NOTE:
a. Put on gloves to protect your hands.
b. When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
c. Take care not to bend or scratch the trim and panels.

1. Remove the front door scuff trim.

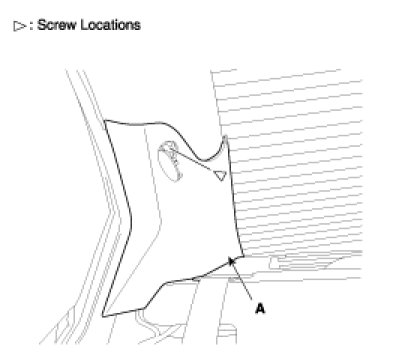

2. Remove the cowl side trim (A).




3. Installation is the reverse of removal.

NOTE:
a. Replace any damaged clips.

CENTER LOWER AND UPPER PILLAR TRIM REPLACEMENT

NOTE:
a. Put on gloves to protect your hands.
b. When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
c. Take care not to bend or scratch the trim and panels.

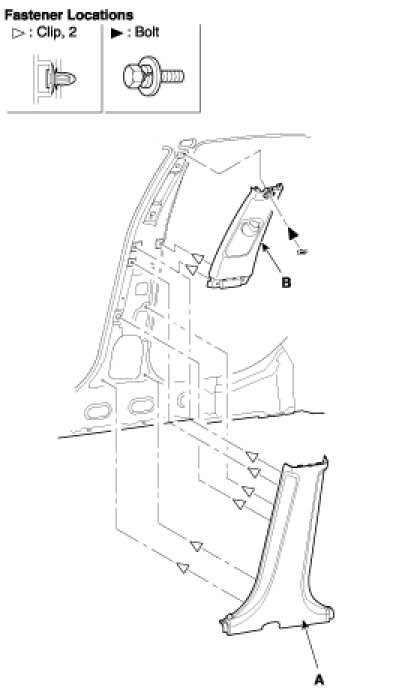

1. Remove the center lower pillar trim(A).
2. Remove the center upper pillar trim(B).




3. Installation is the reverse of removal.

NOTE:
a. Replace any damaged clips.

REAR PILLAR TRIM REPLACEMENT

NOTE:
a. Put on gloves to protect your hands.
b. When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
c. Take care not to bend or scratch the trim and panels.

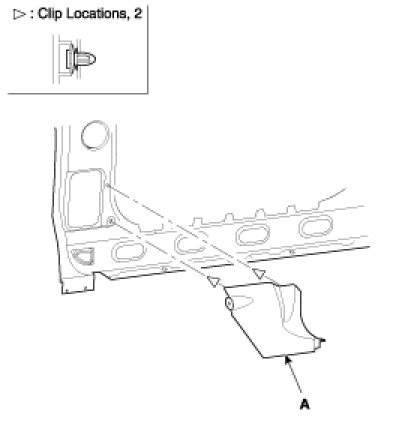

1. Remove the rear pillar lower trim (A).




2. Installation is the reverse of removal.

NOTE:
a. Replace any damaged clips.
