Headliner: Service and Repair

REPLACEMENT

SUNVISOR REPLACEMENT

NOTE:
a. When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
b. Put on gloves to protect your hands.

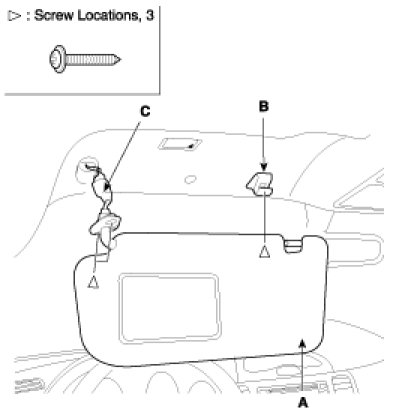

1. Remove the sunvisor (A) and holder (B) from each side.
2. Disconnected the connector (C).




3. Installation is the reverse of removal.

OVERHEAD CONSOLE LAMP REPLACEMENT

NOTE:
a. When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
b. Put on gloves to protect your hands.

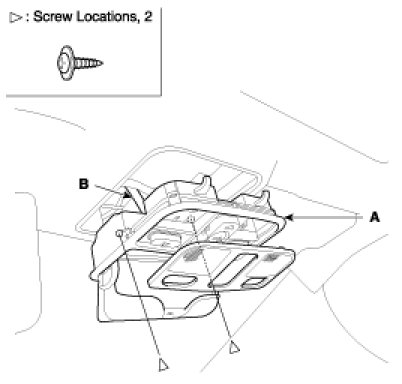

1. Remove the overhead console.
a. Remove the screw.
b. Pull out the roof console (A).
c. Disconnect the connector (B).




2. Installation is the reverse of removal.

ROOM LAMP AND REPLACEMENT

NOTE:
a. When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
b. Put on gloves to protect your hands.

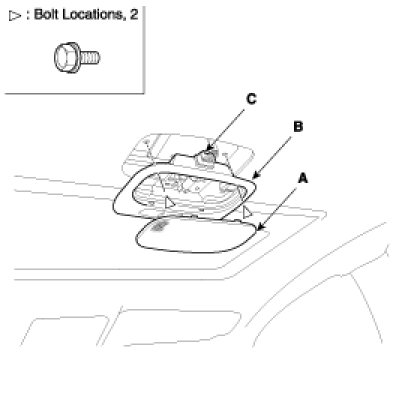

1. Remove the room lamp.
a. Remove the lens (A).
b. Remove the screws.
c. Pull out the room lamp (B).
d. Disconnect the connector (C).




2. Installation is the reverse of removal.

VANITY LAMP REPLACEMENT

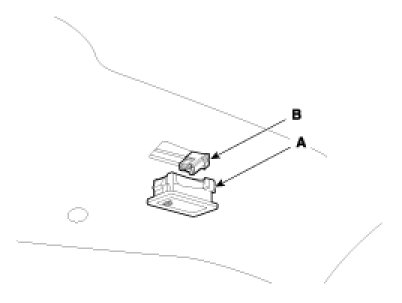

1. Remove the vanity lamp (A).
2. Disconnect the connector (B).




3. Installation is the reverse of removal.

ASSIST HANDLE REPLACEMENT

NOTE:
a. When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
b. Put on gloves to protect your hands.

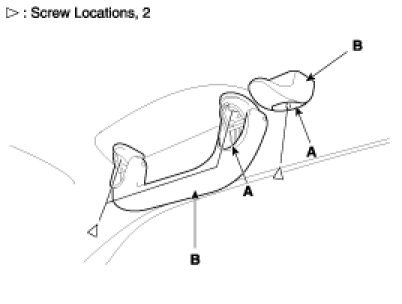

1. Remove the covers (A), and remove the screws, then remove the assist handle (B).




2. Installation is the reverse of removal.

ROOF TRIM REPLACEMENT

NOTE:
a. Put on gloves to protect your hands.
b. When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
c. Take care not to bend or scratch the trim and panels.

1. Remove the following items.
a. Front seat, rear seat assembly.
b. Front, rear door scuff trim.
c. Front pillar trim.
d. Center lower, upper pillar trim.
e. Rear pillar trim.
f. Overhead console.
g. Room lamp.
h. Sunvisor, assist handle.
i. Vanity lamp and hands free mic.

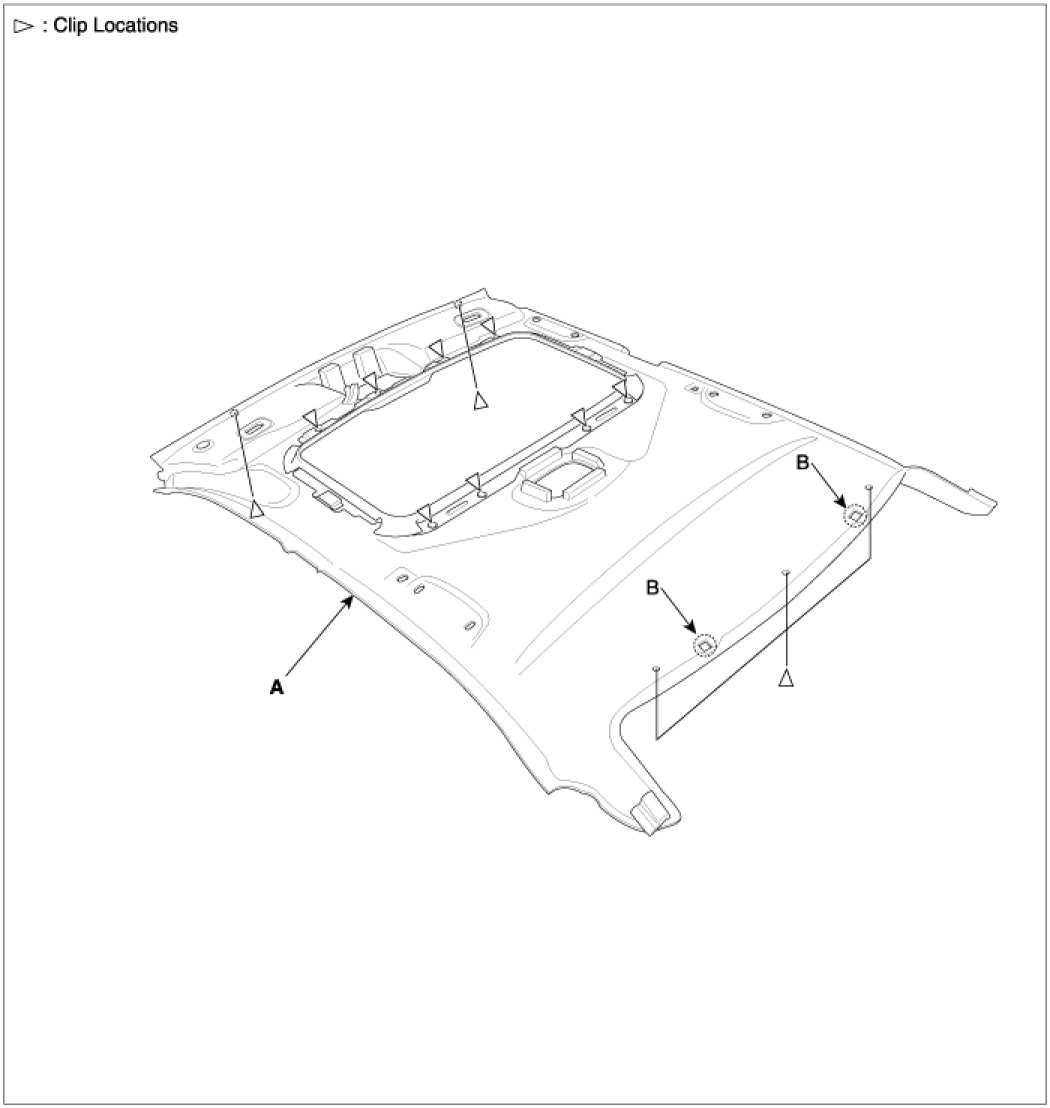

2. Remove the connector (B).
3. Remove the roof trim (A).
4. Installation is the reverse of removal.

NOTE:
a. Replace any damaged clips.
