General Information

Component Location





General Description

The Electronic Throttle Control (ETC) system is made of the components throttle body, Throttle Position Sensor (TPS) 1 & 2 and Accelerator Position Sensor (APS) 1 & 2. The throttle body contains the actuator, the throttle plate and the throttle position sensor (potentiometer), which are integrated in one housing. The actuator consists of a DC motor with a two-stage gear. The opening angle of the throttle valve is detected by the throttle position sensor which is mounted on the throttle body. And it provides feedback to the PCM to control the throttle motor in order to control the throttle valve opening angle properly in response to the driving condition.

DTC Description

If PCM recognizes vehicle state as forced idle under detecting condition, it sets P2104 and MIL (Malfunction Indication Lamp) turns on.

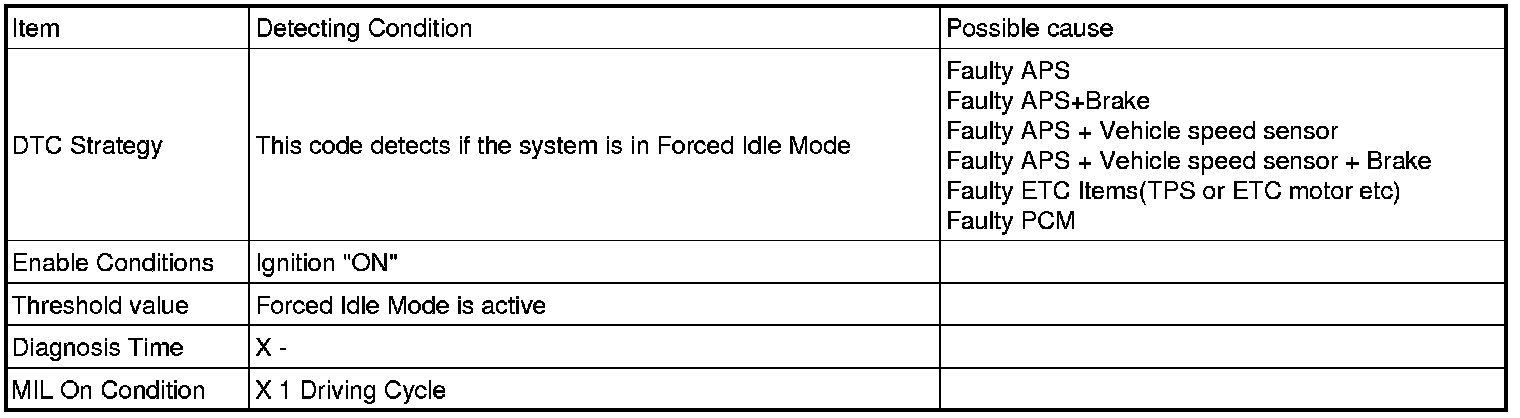

DTC Detecting Condition





[Tip 1]
- If P2104 and P1295 occur at the same time, first check APS and ETC items (TPS or ETC motor etc).
** DTC Name
- P1295 Throttle Actuator Control System - Power Management
