General Information

Component Location





General Description

The PCM provides ground to one side of the coil of the main relay and the other side is connected to the battery. The PCM monitors battery voltage and the voltage after the main relay.

DTC Description

System Voltage is the ignition voltage potential at the Powertrain Control Module (PCM). PCM measures and compares voltage from ignition key and each relay. With this mechanism, PCM knows if the main relay switch turns on after IG on or if turns OFF after IG off.
During engine running, if battery voltage is above 16V, PCM sets P0563. MIL (Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.

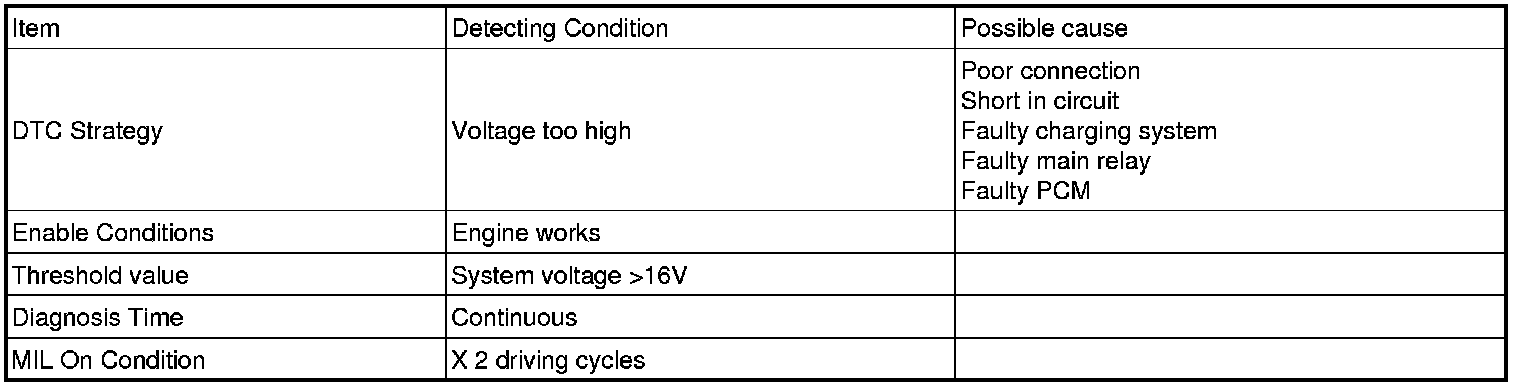

DTC Detecting Condition





Specification





Schematic Diagram
