Manual Transaxle System

SERVICE ADJUSTMENT PROCEDURE

Transmission oil inspection and replacement
1. After parking the vehicle on a level surface, stop the engine.
2. After removing the oil filler plug and washer, inspect the manual transaxle fluid condition and quantity.
3. If the manual transaxle fluid is contaminated, drain it out by removing the oil drain plug.
4. Tighten the new oil drain plug and feed manual transaxle fluid to a proper level.

TORQUE: 29.4 - 34.4 Nm (300 - 350Kgf.cm, 21.7 - 25.3lb-ft) / Oil type: SAE 75W/85Oil quantity: 1.9 liter(2.0077 US qt, 1.6718 lmp qt)

5. Retighten the oil filler plug with a new washer.

TORQUE: 29.4 - 34.3 Nm (300 - 350Kgf.cm, 21.7 - 25.3lb-ft)

Back up lamp switch inspection

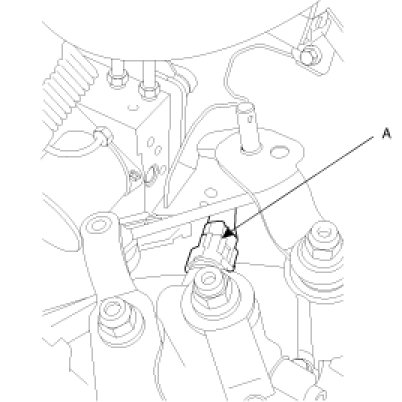

1. Disconnect the back up lamp switch connector(A).




2. Inspect the continuity of the switch. The switch terminals should show continuity with the shift lever in "R" range and should show open circuit (infinite resistance) with the shift lever in any other position.
3. Replace the back up lamp switch, if necessary.

TORQUE: 29.4 - 34.3 Nm (300 - 350Kgf.cm, 21.7 - 25.3lb-ft)
