Engine Control Module: Testing and Inspection




ENGINE CONTROL MODULE

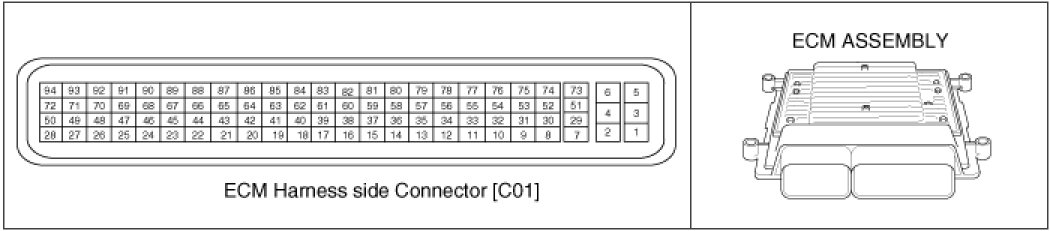

1. ECM HARNESS CONNECTOR

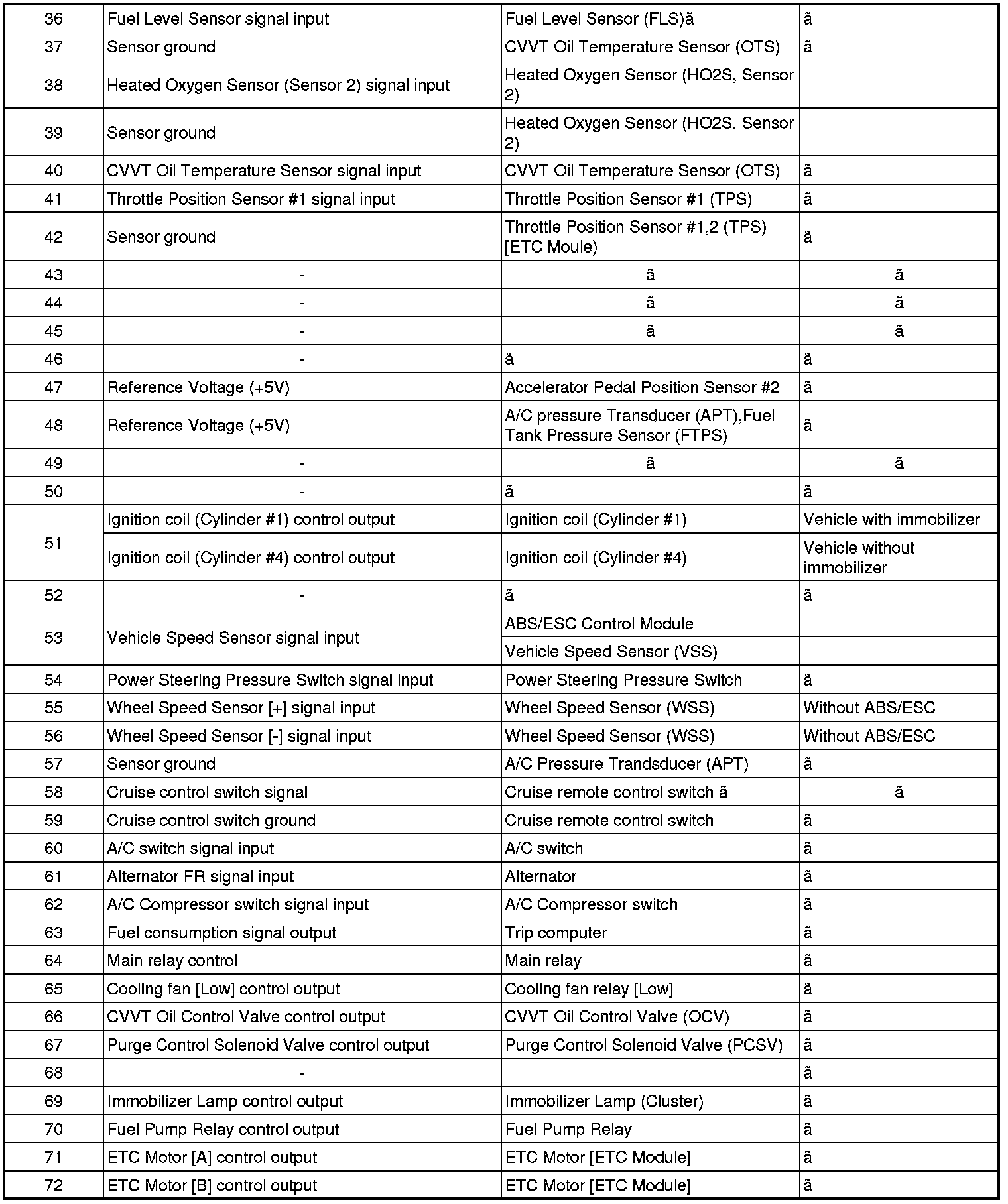

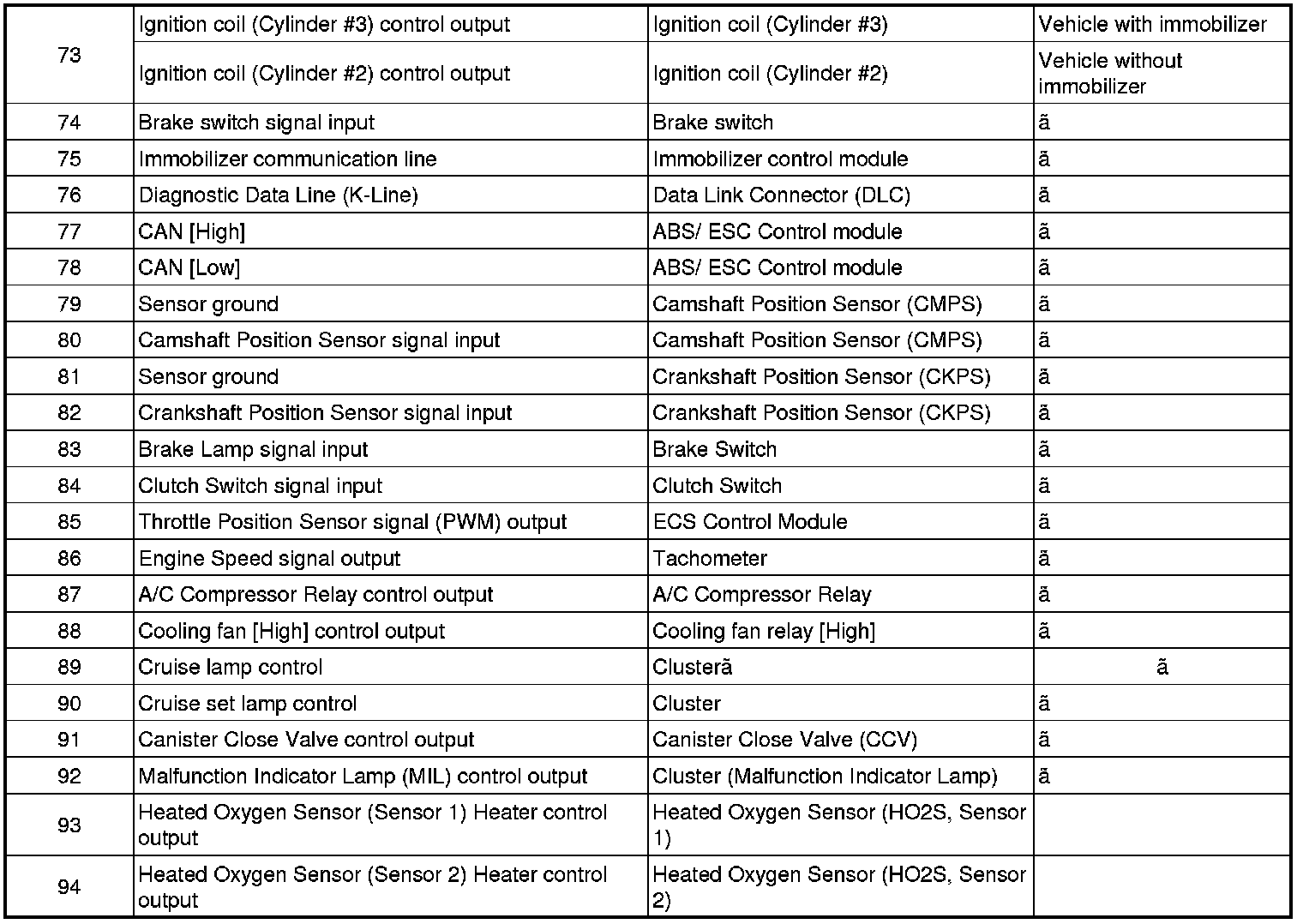

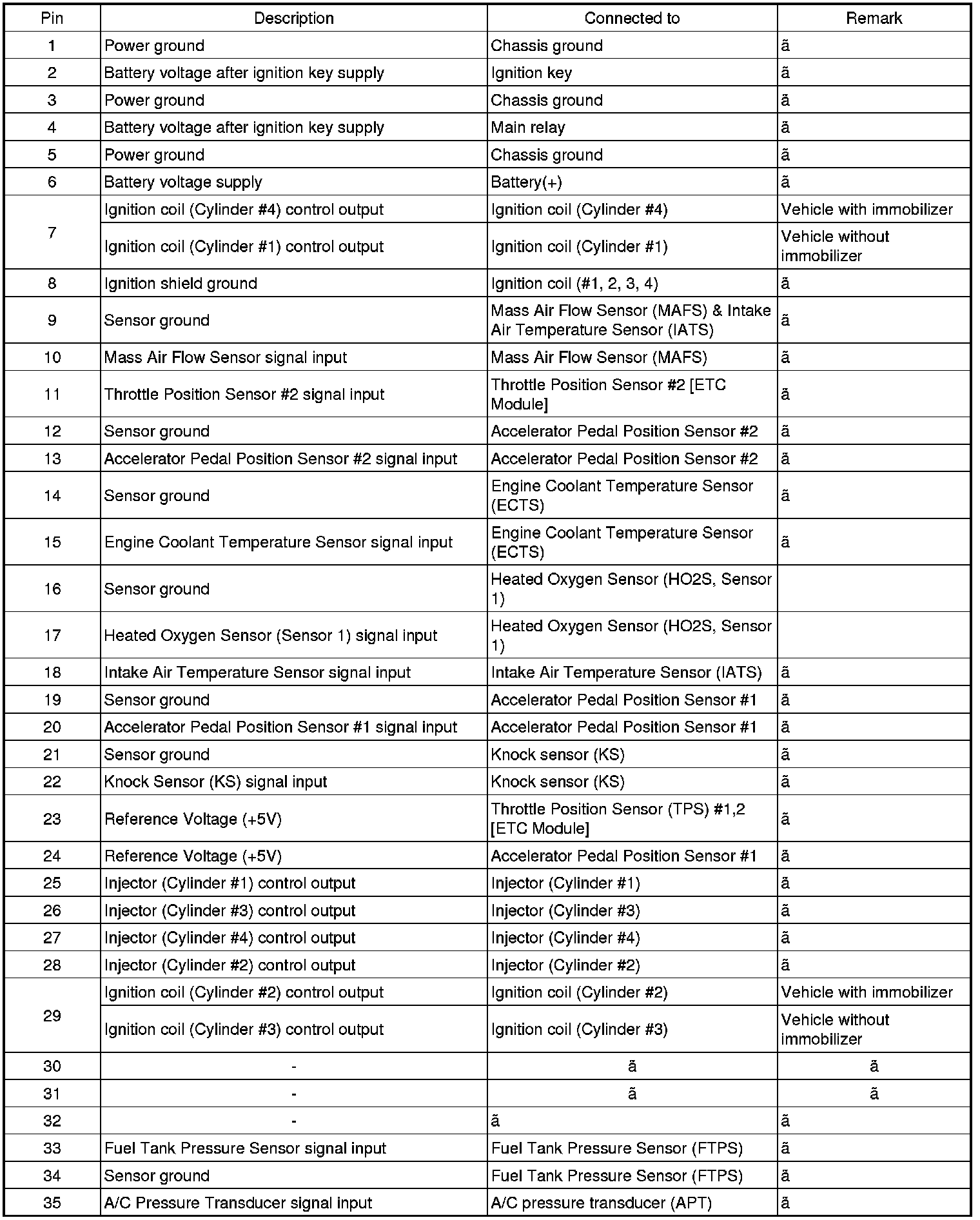

2. ECM TERMINAL FUNCTION
CONNECTOR [C01]

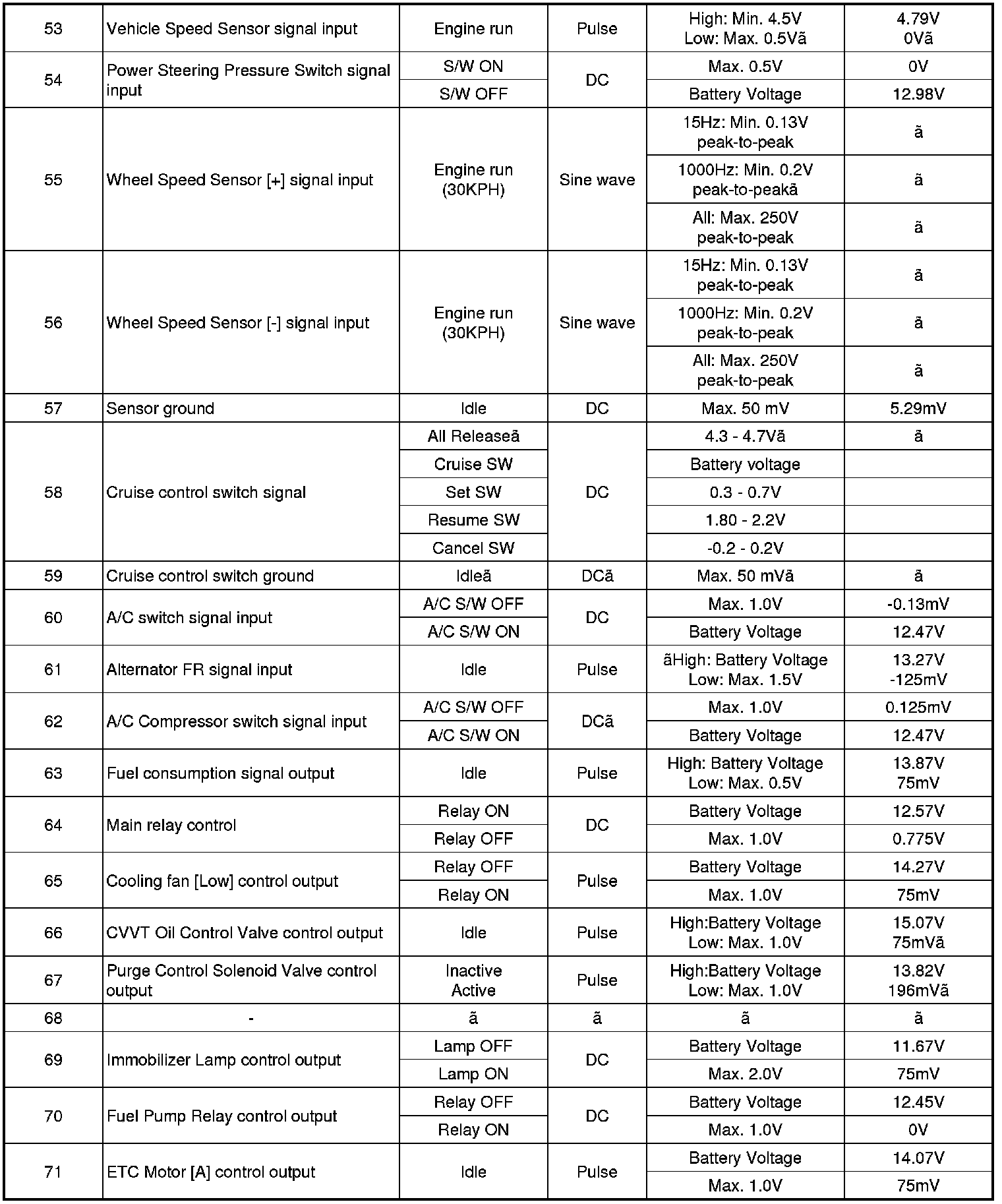

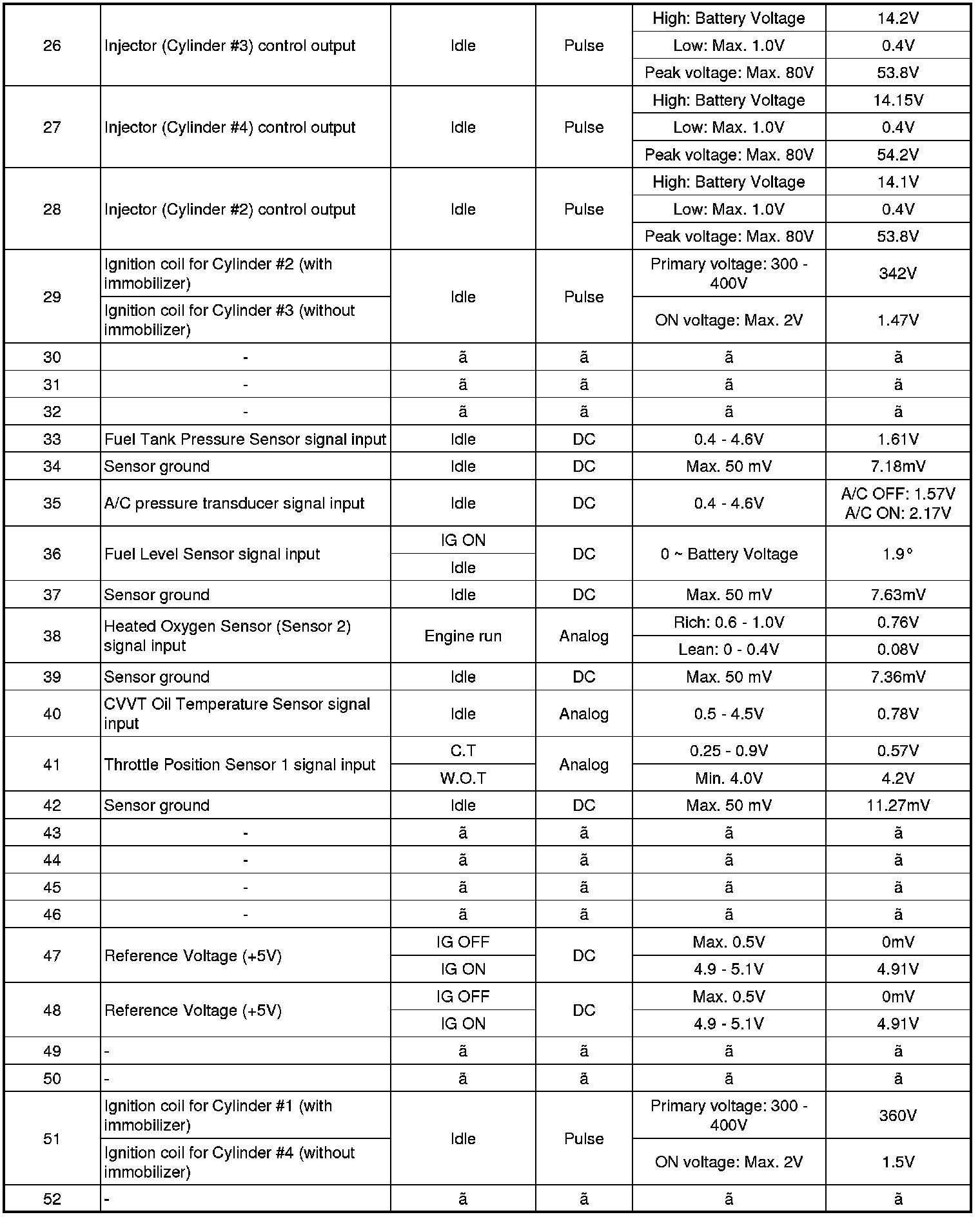

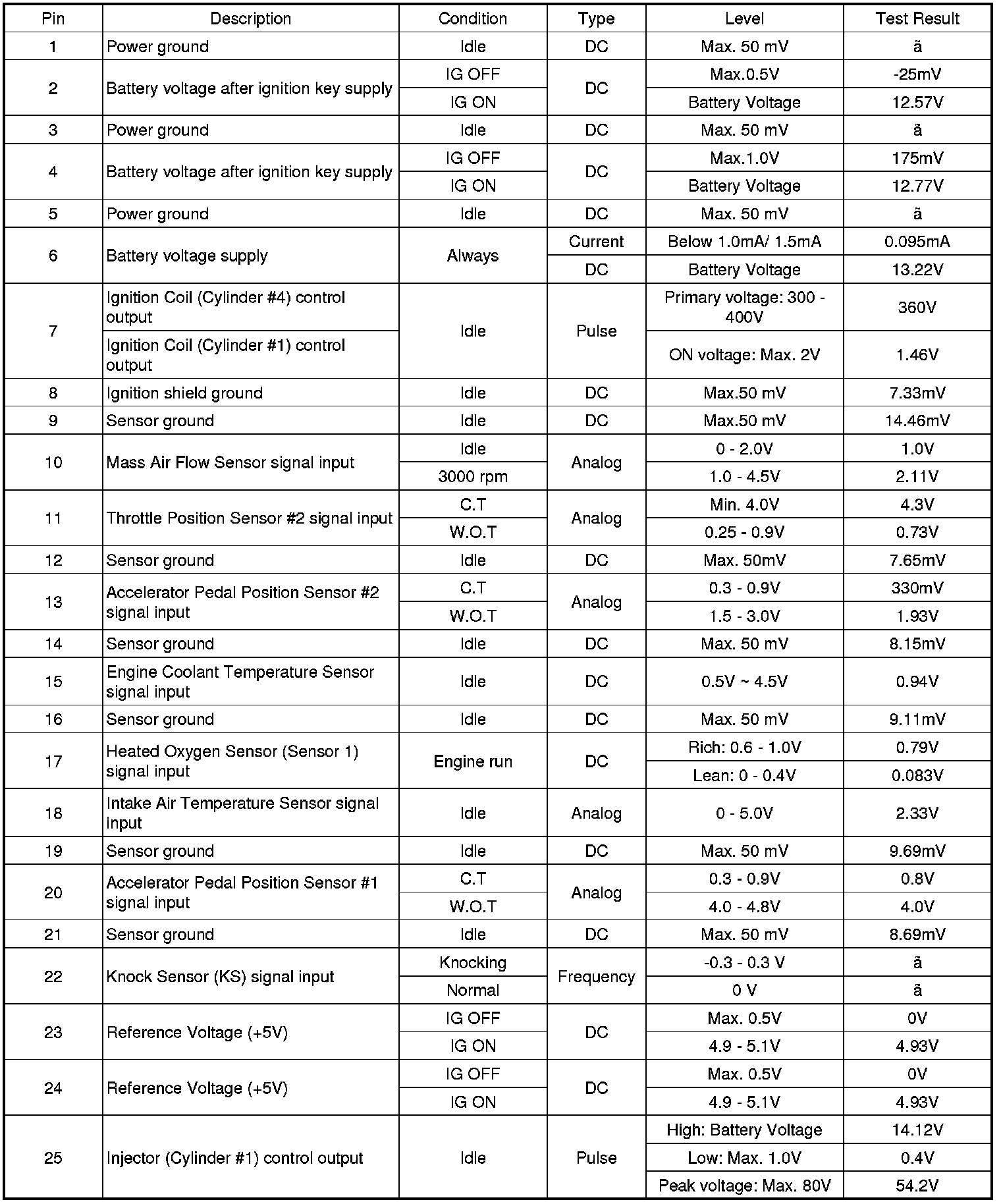

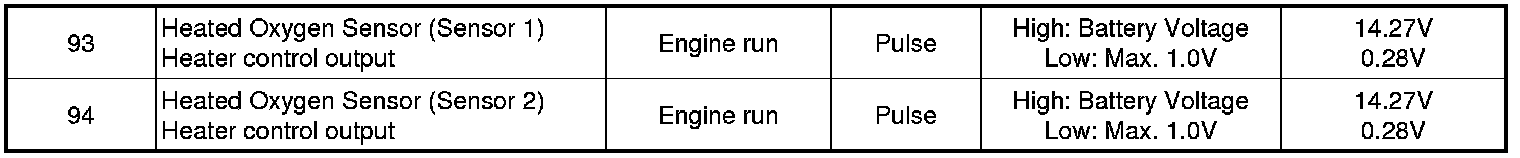

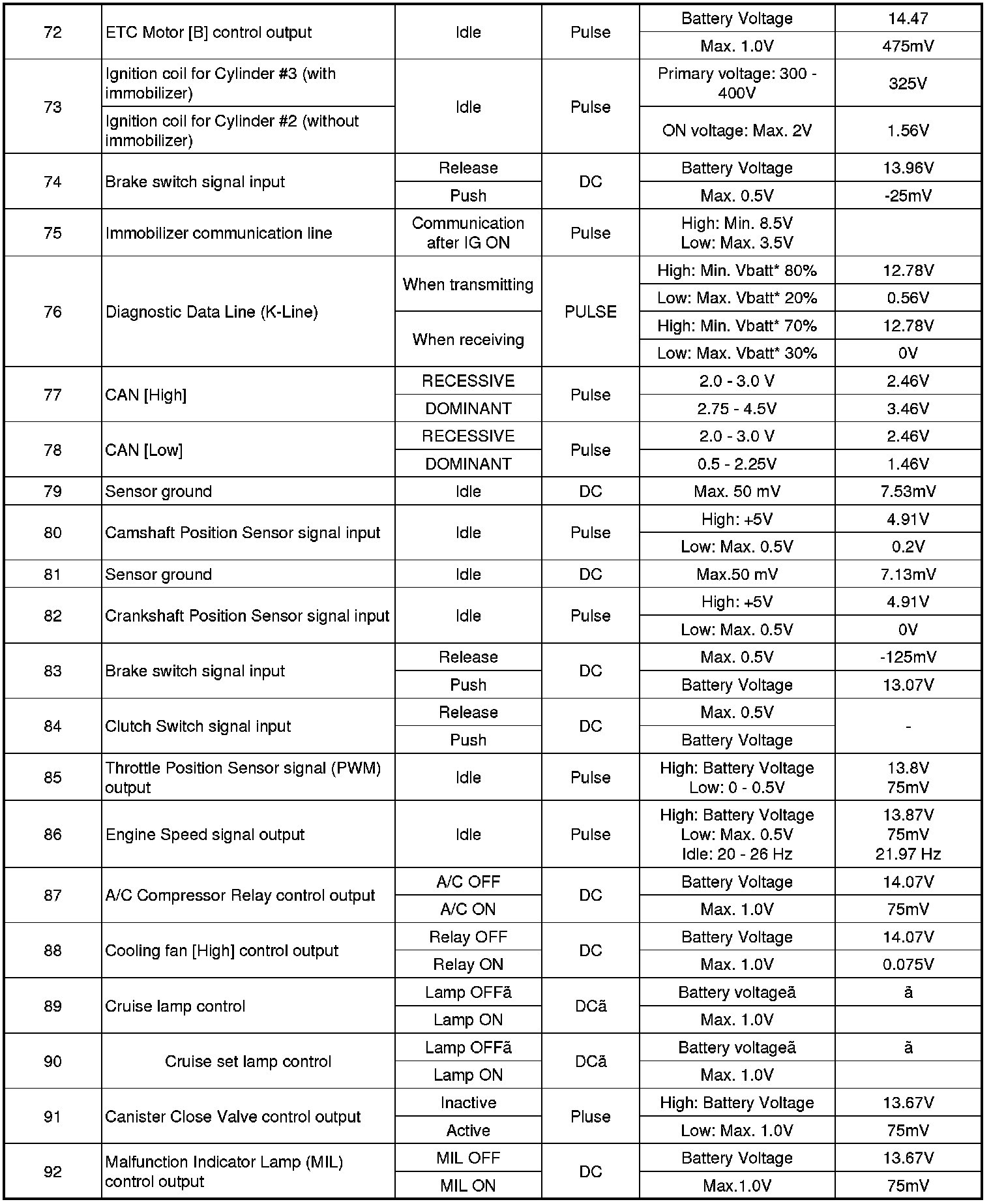

3. ECM TERMINAL INPUT/OUTPUT SIGNAL
CONNECTOR [C01]
