Compass: Description and Operation

DESCRIPTION

The compass feature is designed to be integrated into an electrochromic interior rearview mirror.

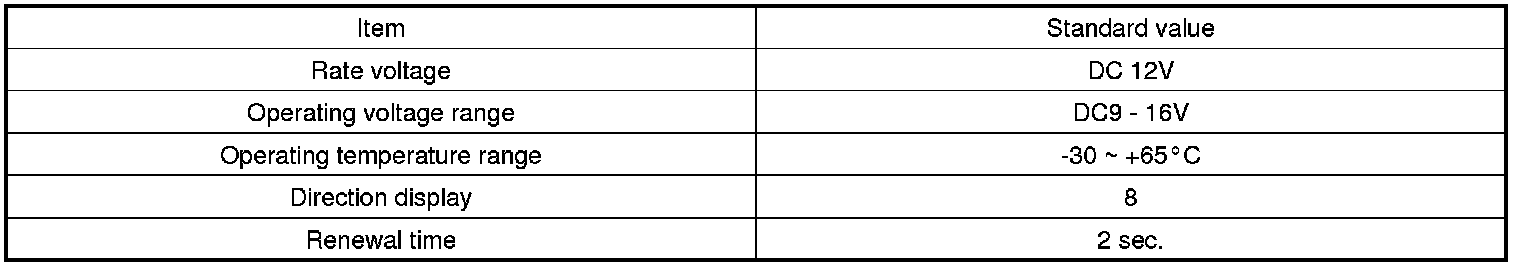

Specification

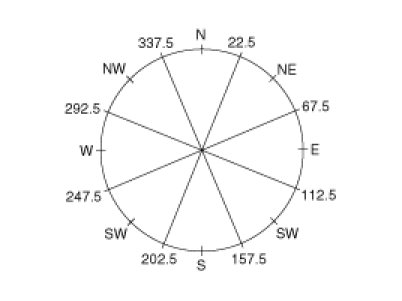

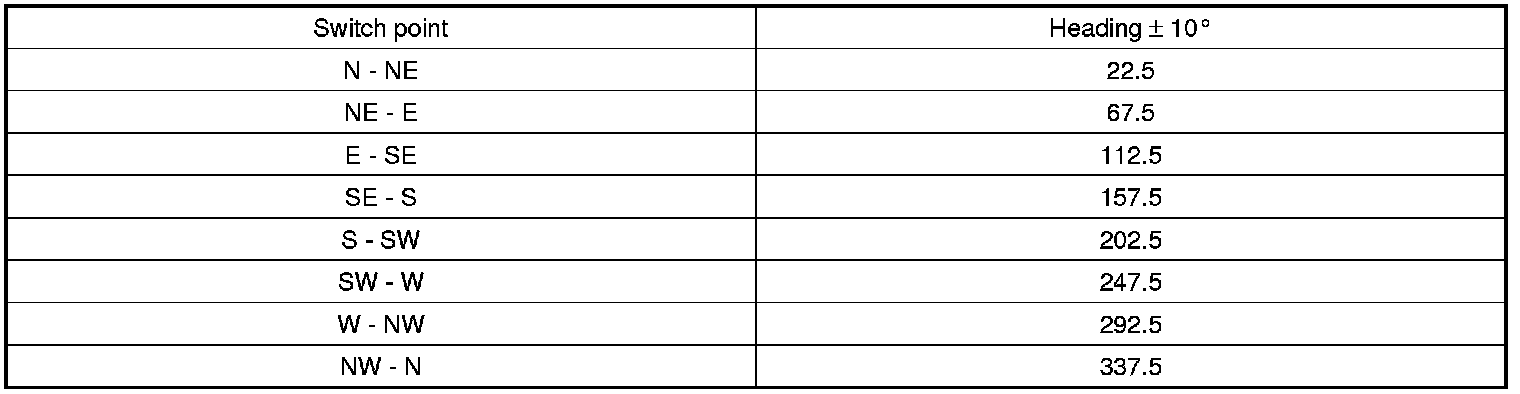

[Switch points]










Compass display interval
Compass display should be updated at every two seconds.
