Power Door Lock Actuator: Testing and Inspection

INSPECTION

FRONT DOOR LOCK ACTUATOR INSPECTION

1. Remove the front door trim.

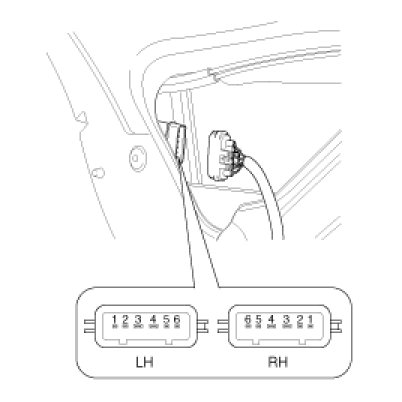

2. Disconnect the 6P connector from the actuator.




3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





REAR DOOR LOCK ACTUATOR INSPECTION
1. Remove the rear door trim panel.

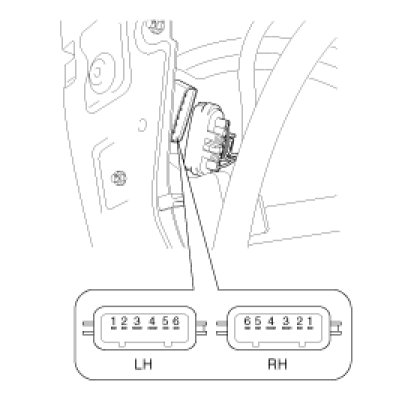

2. Disconnect the 6P connector from the actuator.




3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





TRUNK LID RELEASE ACTUATOR INSPECTION
1. Remove the trunk lid trim panel.
2. Disconnect the 3P connector from the actuator.




3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





FRONT DOOR LOCK SWITCH INSPECTION
1. Remove the front door trim panel.
2. Disconnect the 6P connector from the actuator.




3. Check for continuity between the terminals in each switch position according to the table.





REAR DOOR LOCK SWITCH INSPECTION
1. Remove the rear door trim panel.
2. Disconnect the 6P connector from the actuator.




3. Check for continuity between the terminals in each switch position according to the table.





TRUNK LID OPEN SWITCH INSPECTION
1. Remove the trunk lid trim panel.
2. Disconnect the 3P connector from the actuator.




3. Check for continuity between the terminals in each switch position according to the table.
