Component Inspection

Component Inspection

1. Check transponder and ECU status
1. IGN "ON" & Engine "OFF"
2. Connect scantool to Data Link Connector (DLC).

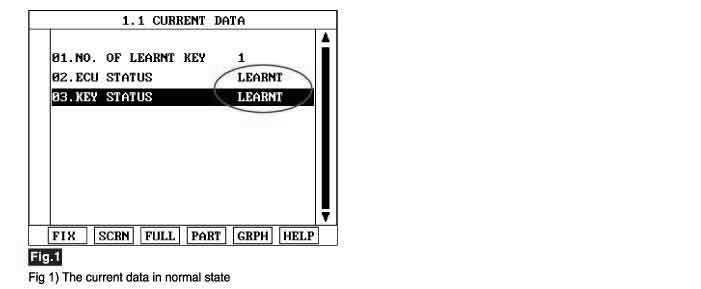

3. Erase the DTC and Monitor the "ECU STATUS" Parameter on the Scantool.
A. Specification: 'LEARNT'




4. Is "ECU STATUS" Parameter "Locked" ?
YES
1) Keep "KEY ON" status for 1 hours to withdraw "Locked by Timer" status. Then register transponder and go to "Verification of Vehicle Repair" procedure.
NO
1) Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
