Component Inspection

Component Inspection

1. Check transponder and ECU status
1. IGN "ON" & Engine "OFF"

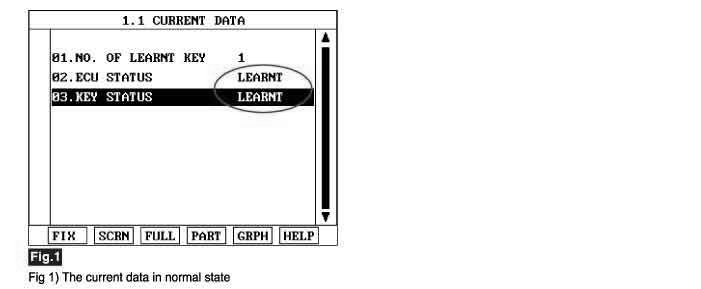

2. Monitor the "KEY STATUS" and "ECU STATUS" Parameter on the Scantool.
A. Specification: 'LEARNT'




3. Are "KEY STATUS" and "ECU STATUS" Parameter within specifications ?
YES
1) Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
1) Register as necessary and then go to "Verification of Vehicle Repair" procedure.
CASE 1. KEY STATUS "VIRGIN" : Register transponder key now inserted
CASE 2. KEY STATUS "INVALID" : Register all transponder key
