Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. IGN "ON" & Engine "OFF"

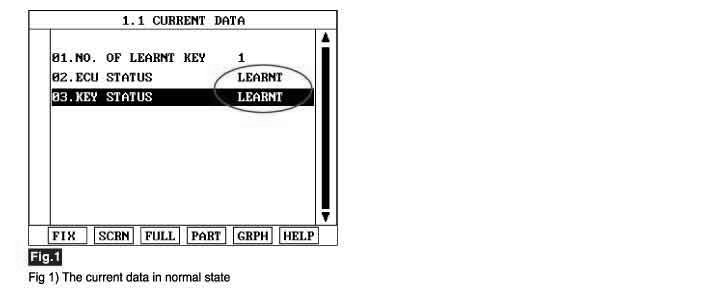

3. Monitor the "KEY STATUS" and "ECU STATUS" Parameter on the Scantool.
A. Specification: 'LEARNT'




4. Are "KEY STATUS" and "ECU STATUS" Parameter within specifications ?
YES
1) Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
NO
1) Go to "W/Harness Inspection" procedure
