General Information

Component Location





General Description

The ECM provides a 5volt reference voltage to the Acceleration Position Sensor 1 (APS 1). The ECM monitors reference voltage deviation from the power supply circuit of the APS 1

DTC Description

ECM sets DTC P0698 if the ECM detects reference voltage lower than threshold value

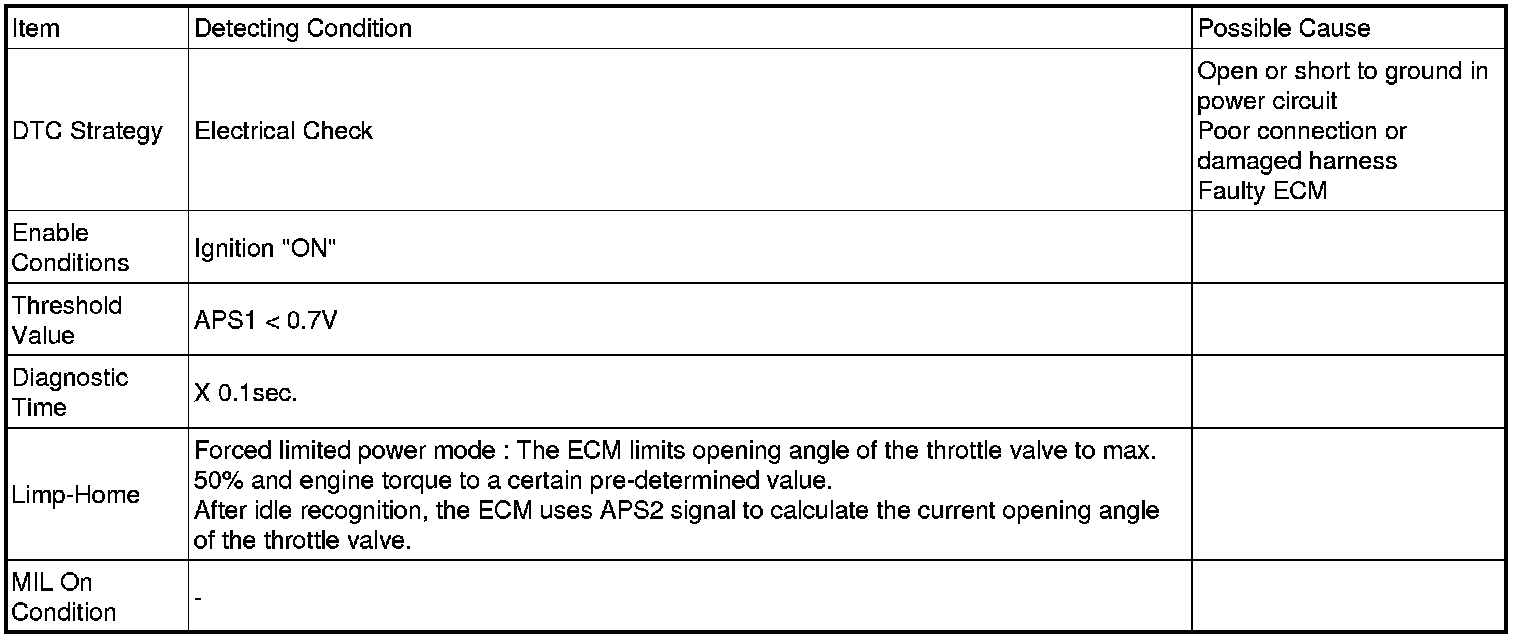

DTC Detecting Condition





Schematic Diagram
