General Information

General Description

The ECM (Engine Control Module) receives pressure signal in the A/C refrigerant high pressure side from the A/C refrigerant pressure sensor. This input indicates how much load the A/C compressor is putting on the engine and is one of the factors used by the ECM in order to determine the idle air control position for the idle speed. The circuits consist of a 5V reference and a ground, both provided by the ECM, and a signal from the sensor. The signal is a voltage which is proportional to the A/C pressure from 0 to 5V. Low pressure produces a low voltage signal and high pressure a high-voltage signal.

DTC Description

ECM sets DTC P0533 if the ECM detects signal voltage higher than the possible range of a properly operating A/C refrigerant pressure sensor.

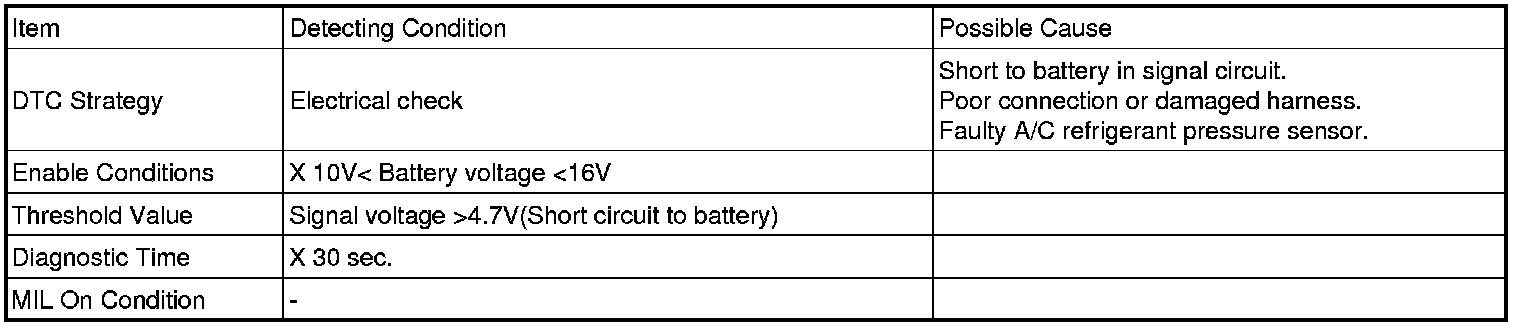

DTC Detecting Condition





Schematic Diagram
