General Information

Component Location





General Description

The Fuel Level Sensor (FLS) measures the fuel level in fuel tank and its information is used to supply the ECM with information regarding the monitoring condition of the EVAP canister purge system for leak detection. If the fuel level sensor is monitored for high or low stuck or difference between voltage of fuel level sensor and voltage deviation of fuel level sensor is exceeds limited value while driving, this is interpreted by the ECM as a fault

DTC Description

The ECM monitors the fuel level in the tank by means of Fuel Level Sensor (FLS). The ECM sets DTC P0464 if ECM detects that Signal fluctuation is lower than threshold value.

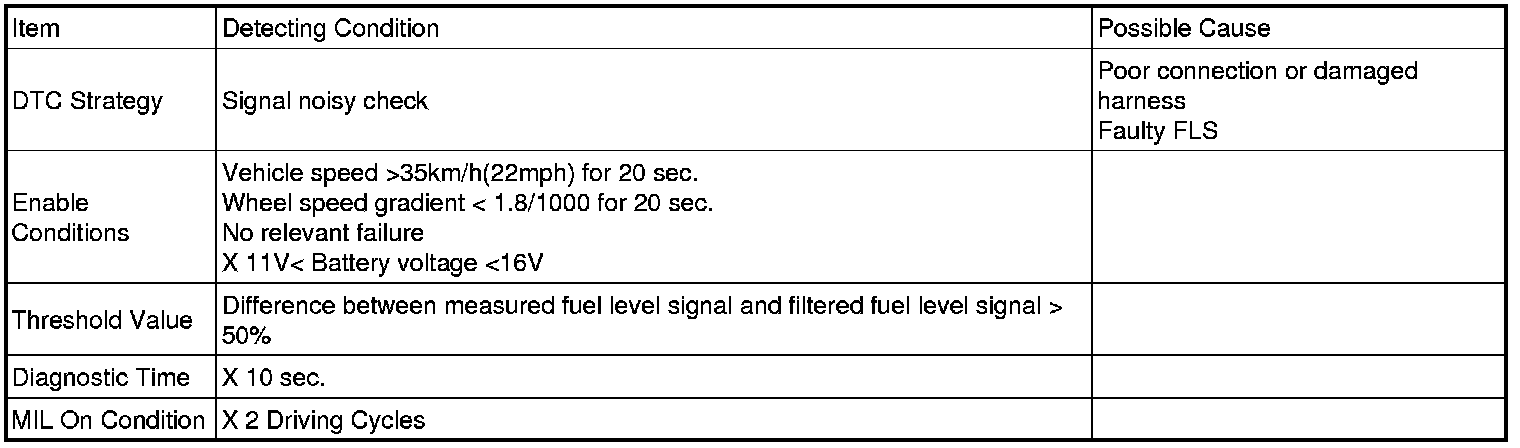

DTC Detecting Condition

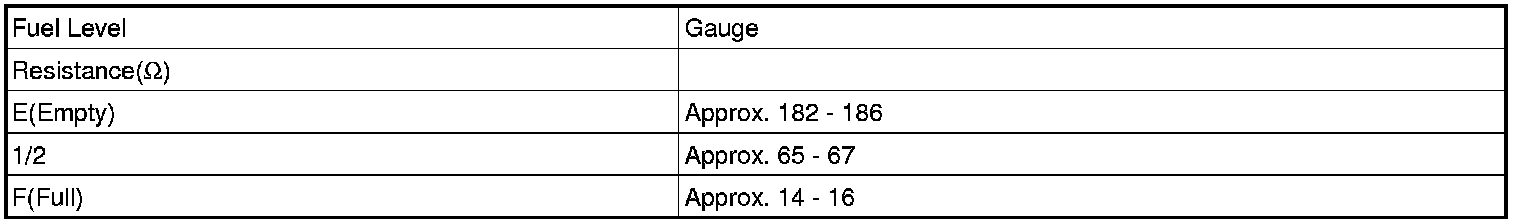

Specification





Schematic Diagram
