General Information

Component Location





General Description

The Fuel Level Sensor (FLS) measures the fuel level in fuel tank and its information is used to supply the ECM with information regarding the monitoring condition of the EVAP canister purge system for leak detection. If the fuel level sensor is monitored for high or low stuck or difference between voltage of fuel level sensor and voltage deviation of fuel level sensor is exceeds limited value while driving, this is interpreted by the ECM as a fault

DTC Description

ECM sets DTC P0463 if the ECM detects signal voltage higher than the possible range of a properly operating FLS.

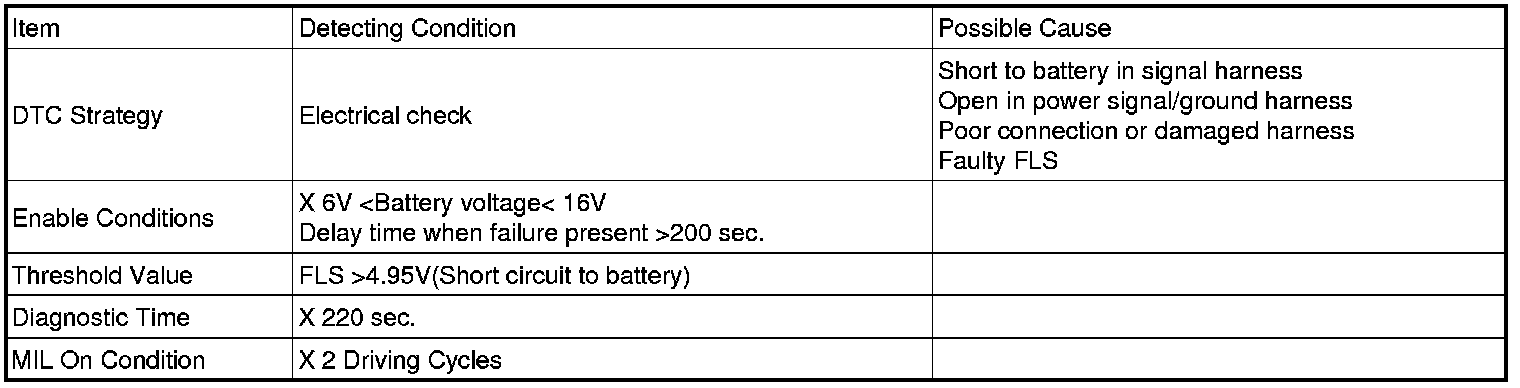

DTC Detecting Condition

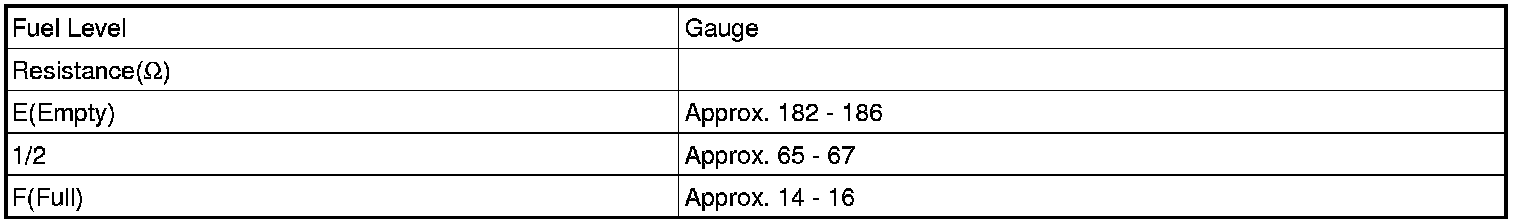

Specification





Schematic Diagram
