General Information

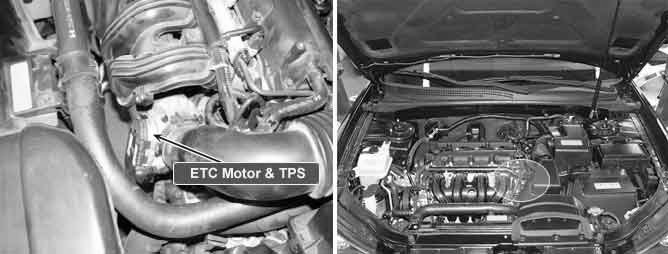

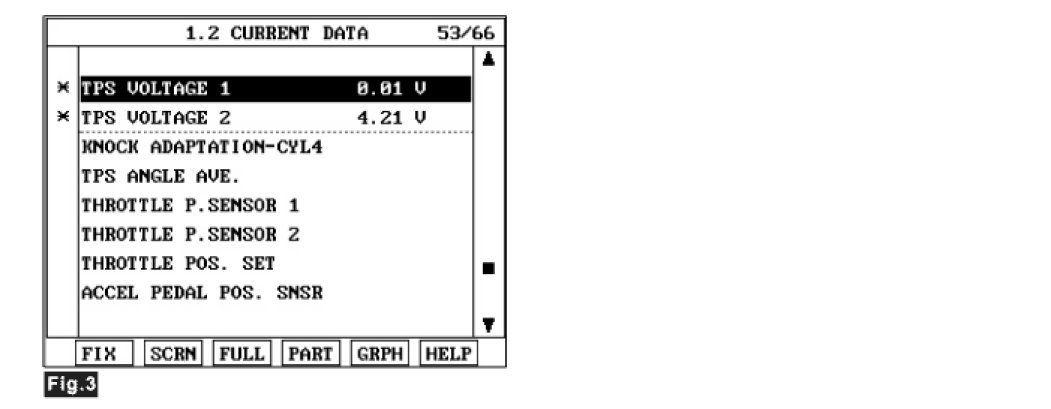

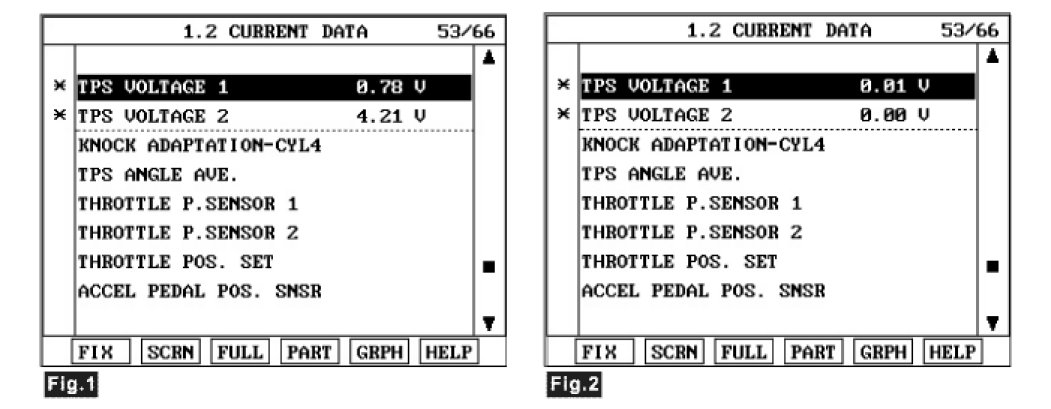

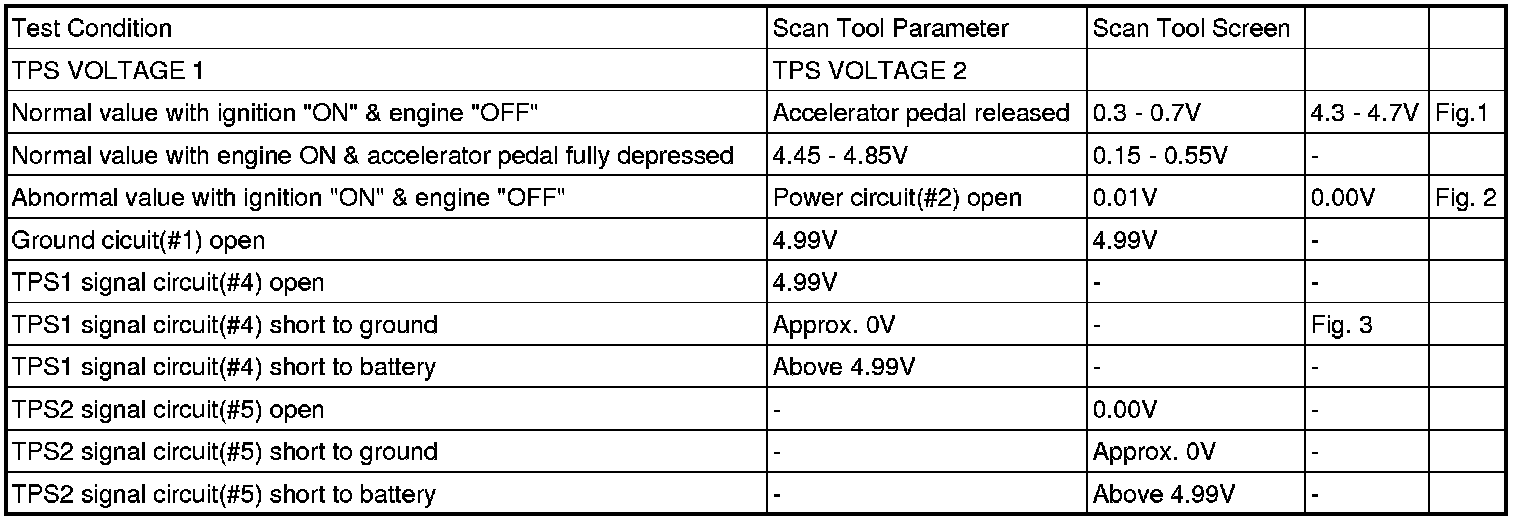

Component Location





General Description

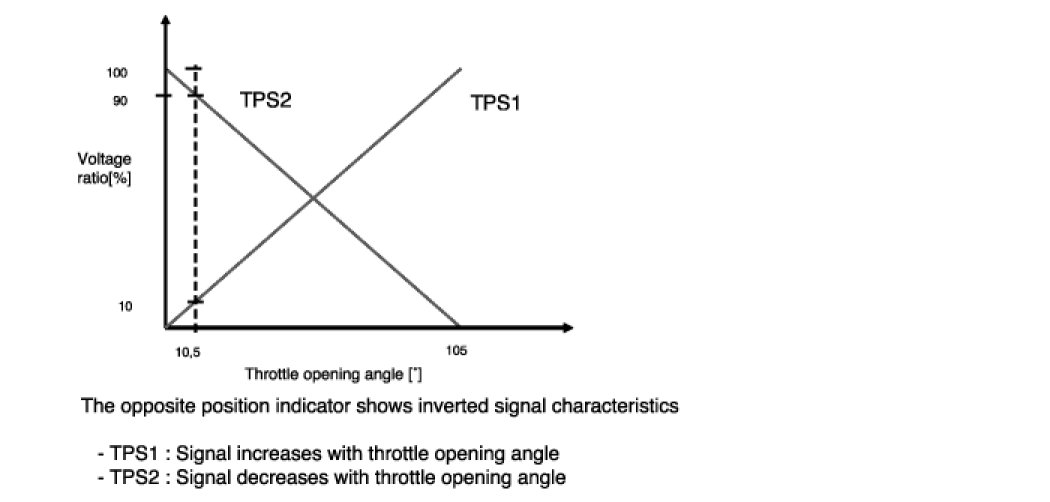

The Electronic Throttle Control (ETC) system is made of the components throttle body, Throttle Position Sensor (TPS) 1 & 2 and Accelerator Position Sensor (APS) 1 & 2. TPS 1 & 2 are sharing the same source voltage and ground.The throttle valve opening is control by throttle motor which is controlled by Engine Control Module (ECM).The opposite position indicator shows inverted signal characteristics.TPS 1 output voltage increases smoothly in proportion with the throttle valve opening angle after starting. TPS 2 output voltage decreases in inverse proportion with the throttle valve opening angle after starting. TPS provides feedback to the ECM to control the throttle motor in order to control the throttle valve opening angle properly in response to the driving condition.

DTC Description

ECM sets DTC P0122 if the ECM detects signal voltage lower than the possible range of a properly operating TPS 1.

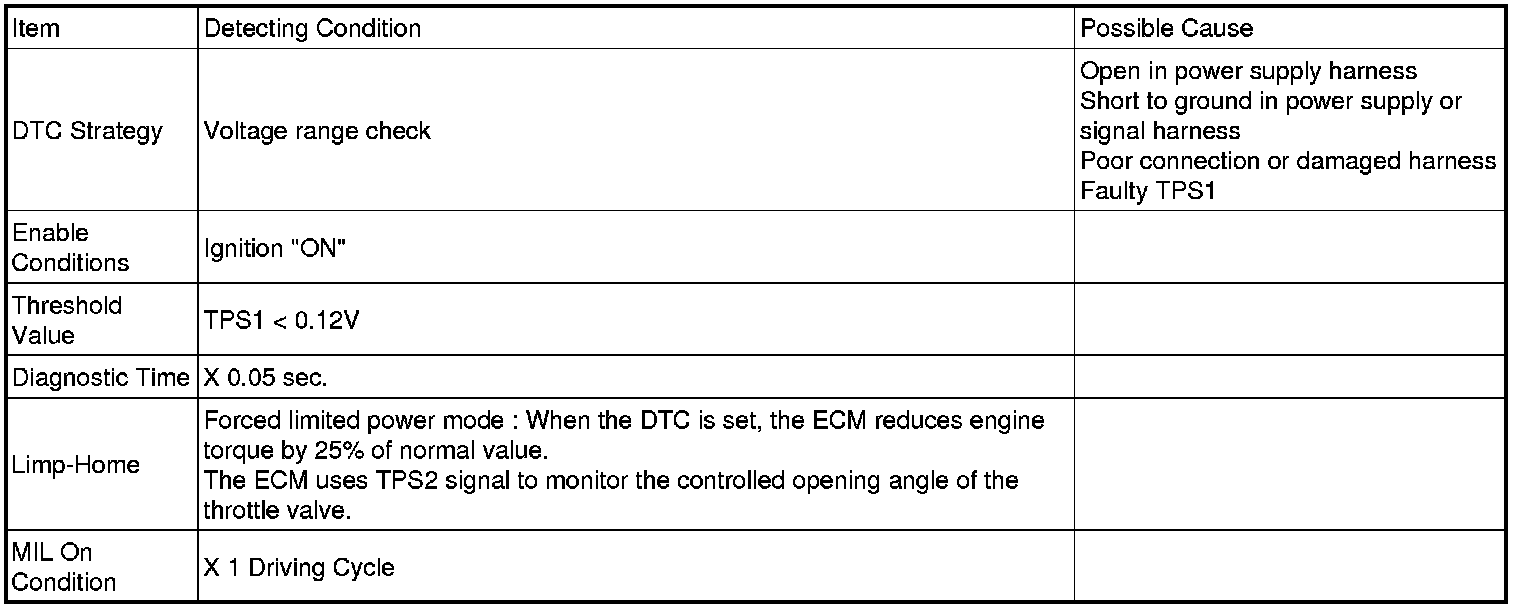

DTC Detecting Condition





Schematic Diagram





Signal Waveform
