General Information

Component Location





General Description

CAN communication is applied just for FTCSs (Full Traction Control Systems) installed in the vehicle for sending requirement data, such as Torque reduction, the number of fuel cut cylinders, and TCS control requests, to the Engine PCM (ECM & TCM).
The Engine PCM (ECM) performs fuel cut functions according to requests from the ABS ECU and retards ignition timing by torque reduction requests.
The PCM (TCM) maintains current gear positions during TCS control time, by not increasing power which causes a Kickdown shift.

DTC Description

The HECU checks the CAN RAM for normal TCS control, and sets this code if a CAN RAM malfunction is detected.

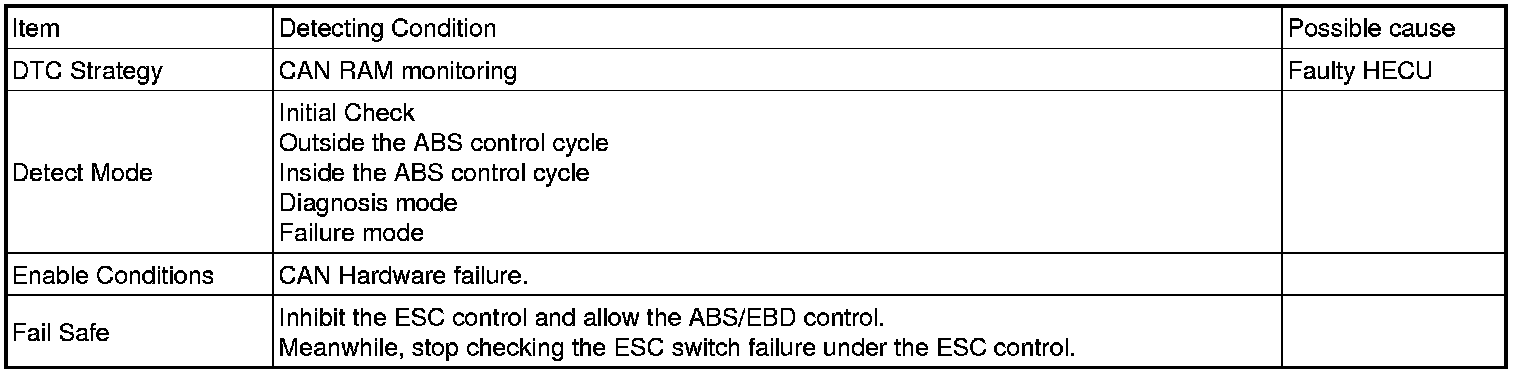

DTC Detecting Condition
