Component Inspection

Component Inspection

1. Check evaporator sensor
1. Ignition "OFF"
2. Disconnect evaporator sensor.

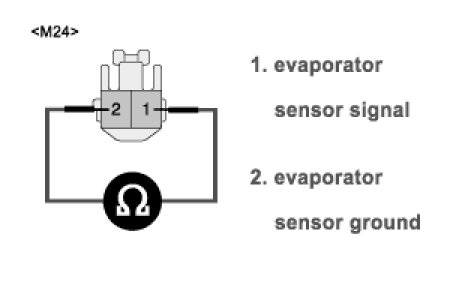

3. Measure resistance between terminal "1" and "2" of evaporator sensor.

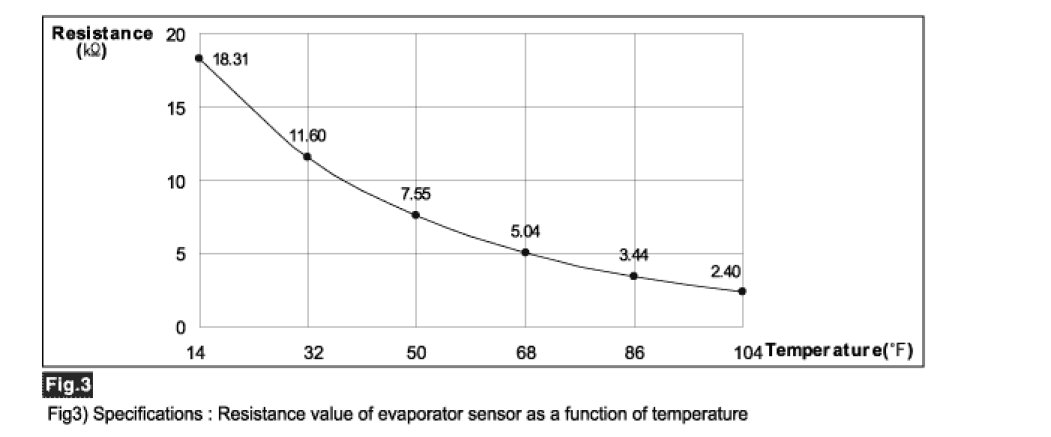

A. Specification: Refer the specifications in fig 3)








4. Is the measured resistance within specifications in fig 3) ? (tolerance limits ± 3%)
YES
1) Go to "Check A/C Control Unit" procedure.
NO
1) Substitute with a known-good evaporator sensor and check for proper operation.
If the problem is corrected, replace evaporator sensor and then go to "Verification of Vehicle Repair" procedure.
