General Information

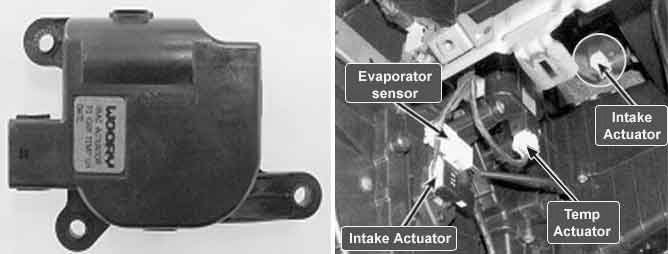

Component Location





General Description

Intake door located at heater unit controls the inlet of car. It contains intake motor that changes intake door position and potentiometer that monitors position of intake door. When driver operates the intake switch, ECU receives mode signal from intake switch and operates intake door motor to turn intake door to intended position. (with FRE mode signal, intake door is closed and with REC mode signal, intake door is opened)
In operation, potentiometer delivers intake door position transformed into voltage value to A/C ECU.

DTC Description

The ECM sets DTC B1209 if there is a short to power in the Intake actuator signal harness.

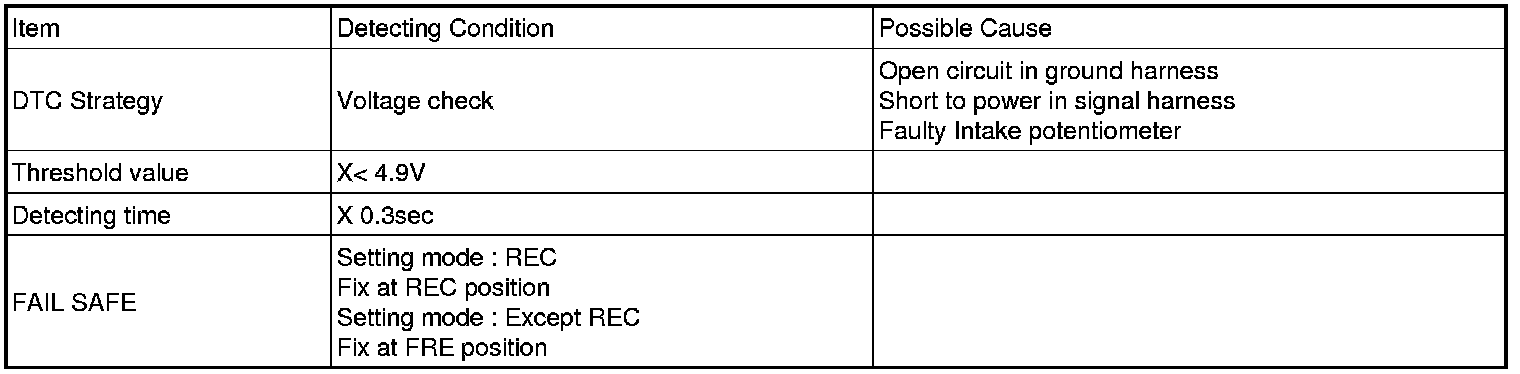

DTC Detecting Condition





Schematic Diagram

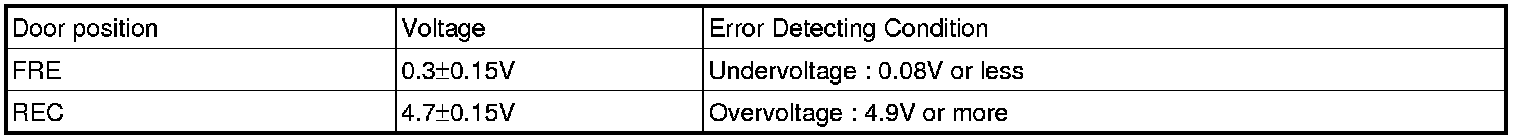

Signal Waveform

** Voltage value of Intake potentiometer as a function of position of Intake door.
