Input Speed Sensor

INPUT SPEED SENSOR

REMOVAL
1. Remove the battery terminal.
2. Remove the battery and battery tray.
3. Remove the air cleaner assembly. (see the automatic transaxle-Removal/Installation procedures)
4. Remove the input shaft speed sensor connector.

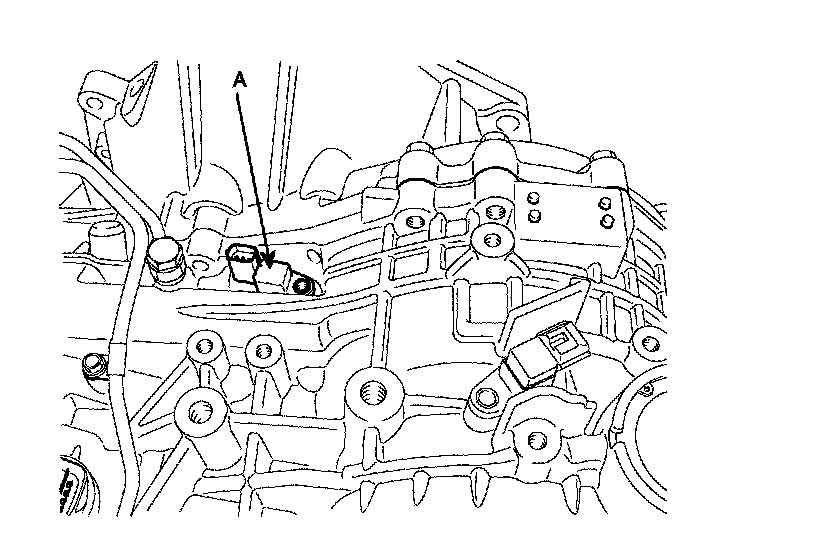

5. Remove the input shaft speed sensor(A).





INSTALLATION
1. Install the new 0-ring to the input shaft speed sensor.
2. Install the input shaft speed sensor.

TORQUE: 10-12 Nm (1.0-1.2 kgf.m, 7-8 lb-ft)

CAUTION
While installing the input shaft speed sensor, do not allow dust or other foreign particles to enter the transaxle.

3. Check the connector for dust, dirt, or oil, and then connect the connector securely.
4. Installation is the reverse of removal.
