Drive Axles, Bearings and Joints: Specifications

Driveshaft and Axle

GENERAL

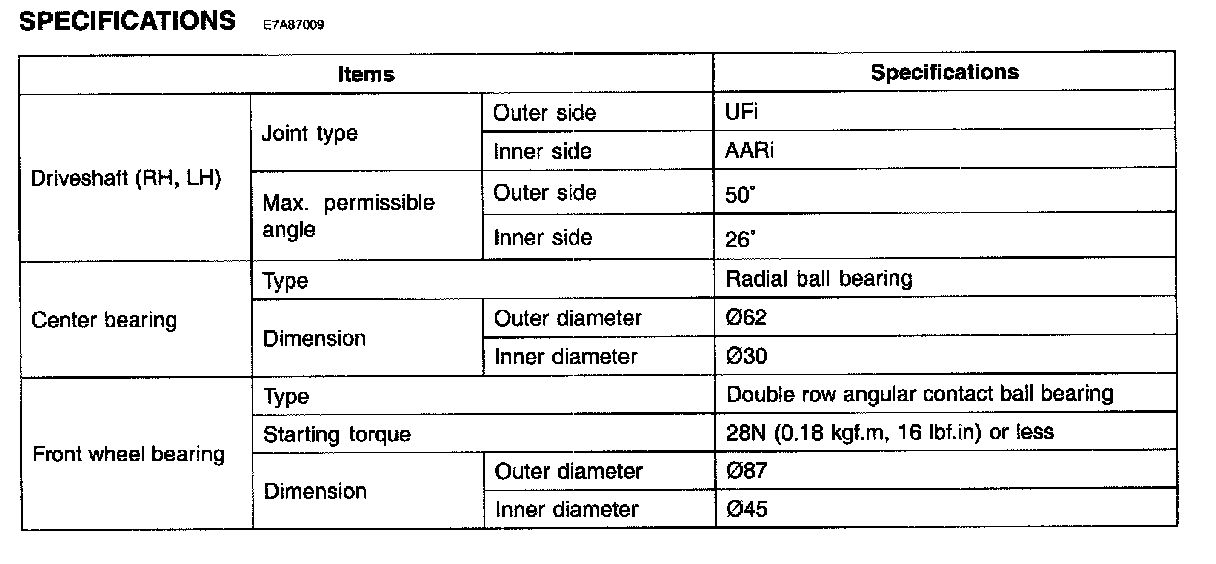

SPECIFICATIONS:

NOTE
Inner side : On Transaxle side
Outer side : On Tire side
Ufi : Under Cut Free improved (GKN)
AARi : Angular Adjusted Roller improved (GKN)

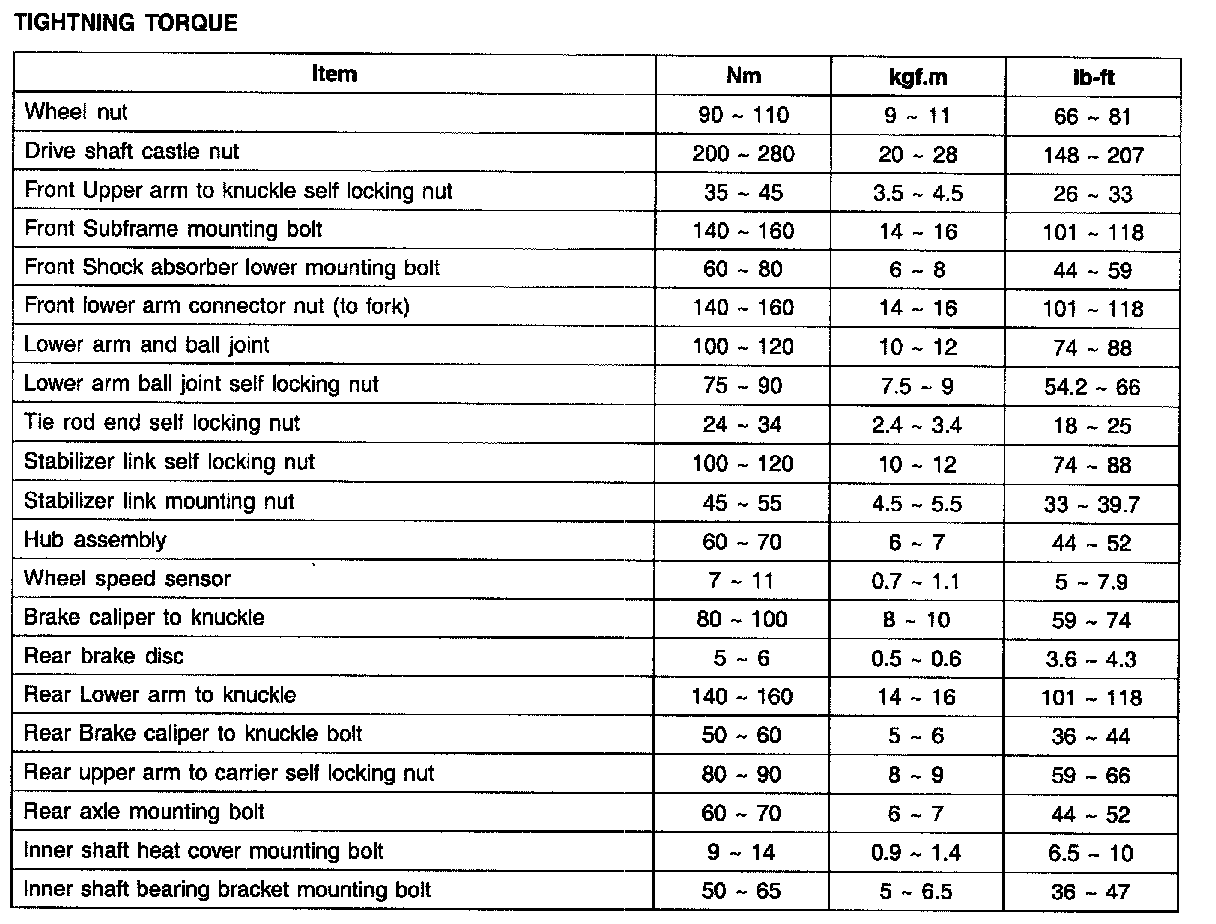

TIGHTNING TORQUE:

CAUTION
Replace self-locking nuts with new ones after removal.
