Installation

FRONT DRIVESHAFT ASSEMBLY

INSTALLATION

CAUTION
Replace the circlip with new ones after removal.

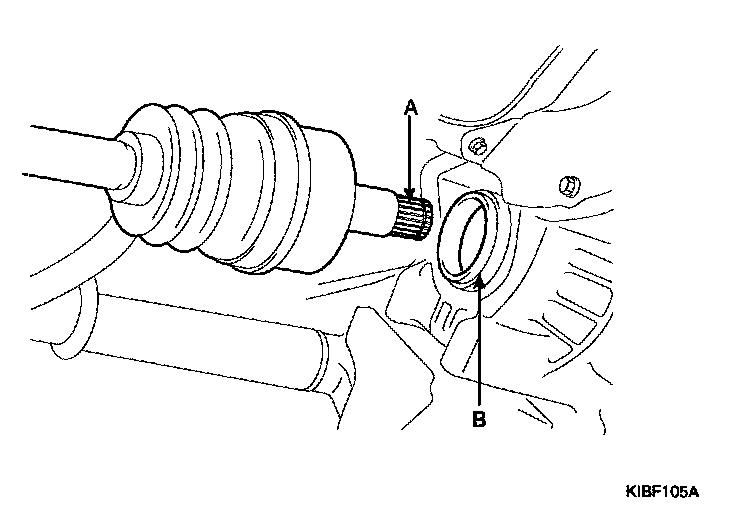

1. Apply gear oil on the drive shaft splines (A) and the contacting surface of differential case oil seal (B).





2. After installation, check if the drive shaft cannot be removed.
[RH]
a. Install the inner shaft bearing bracket mounting bolt (A).

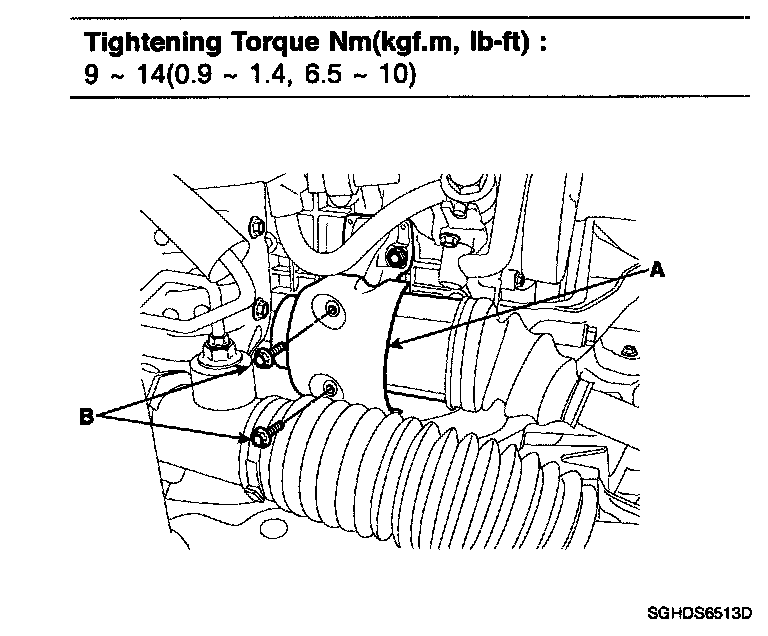

b. Install the inner shaft heat cover (A) by installing the heat cover mounting bolts (B).

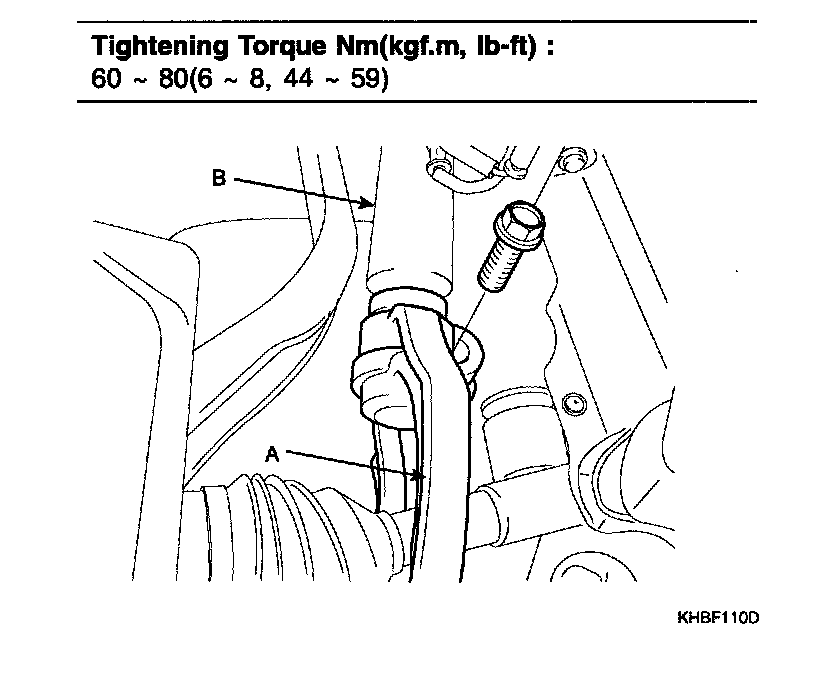

c. Install the fork (A) to the front strut assembly (B).

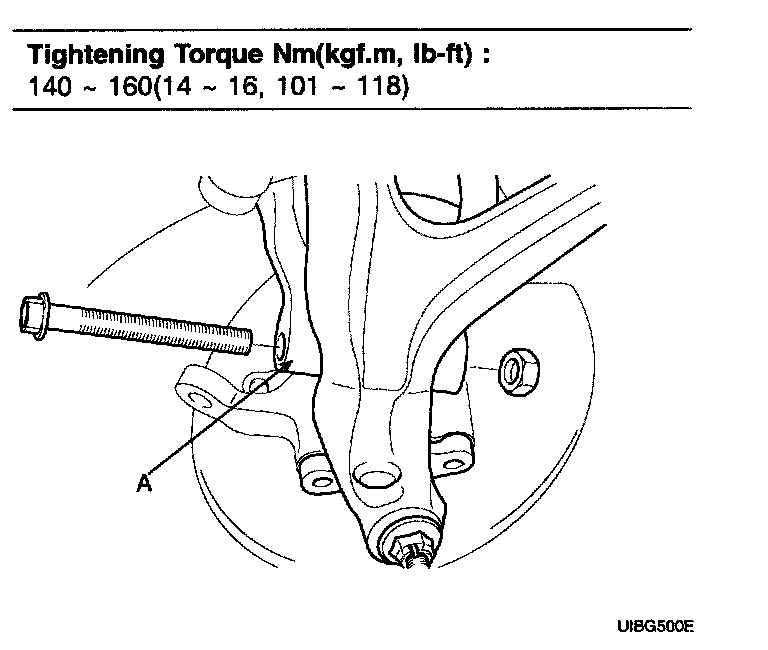

d. Install the connecting bolt between the fork (A) and the lower arm.

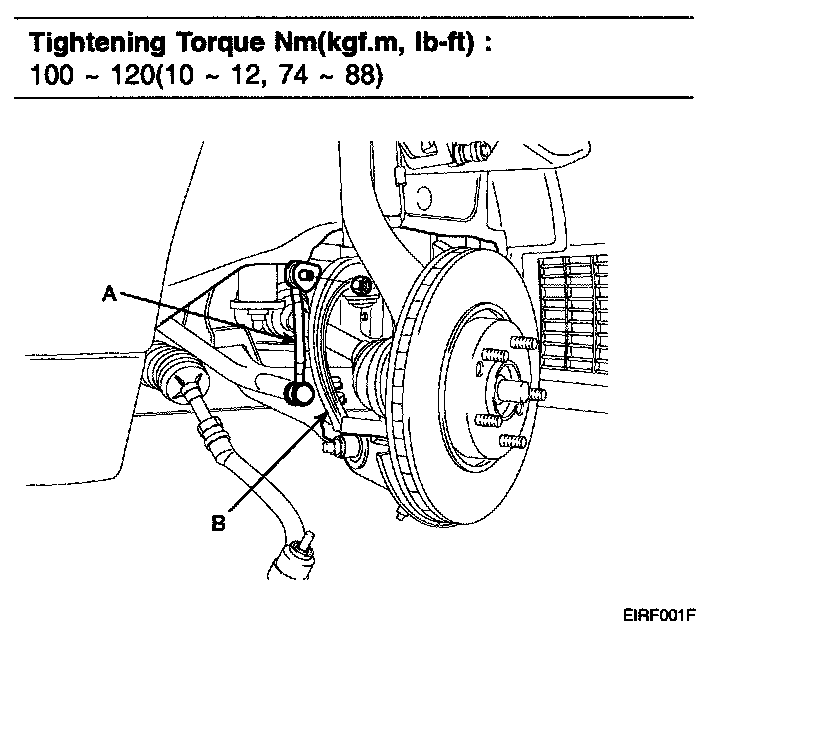

e. Install the stabilizer link (A) to the fork (B).





3. Install the drive shaft (A) into the front axle assembly (B).

CAUTION
Be careful not to damage the boot.

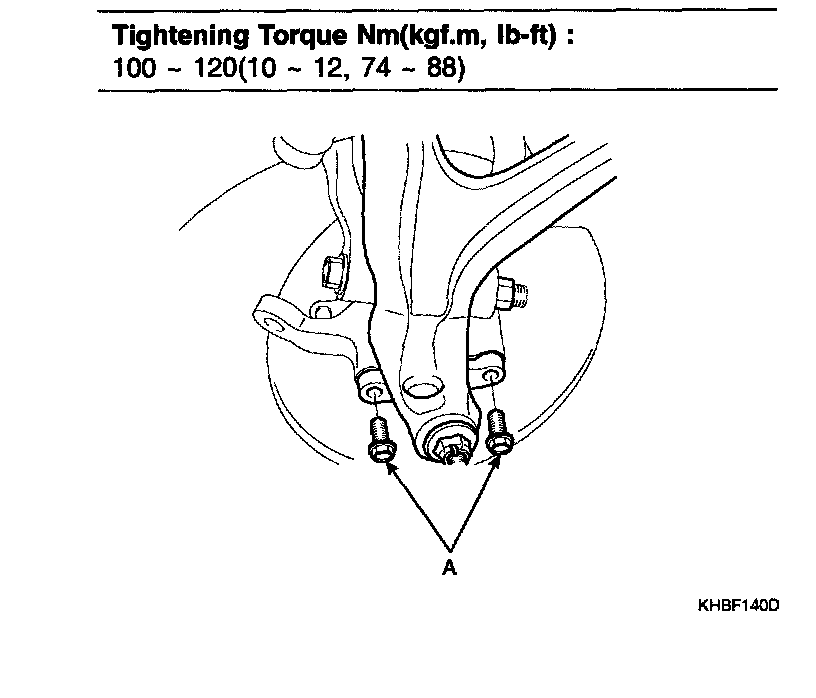

4. Install the knuckle in the lower arm assembly and tighten the bolts (A).

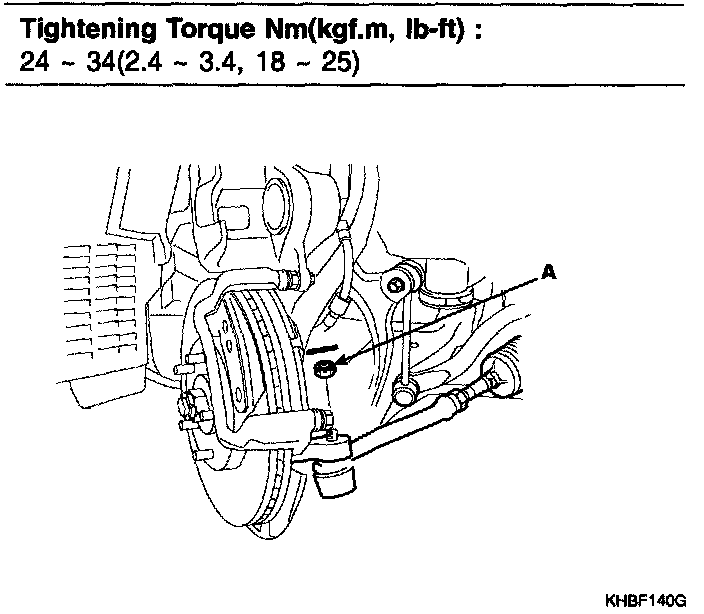

5. Install the tie rod end (A) in the knuckle.

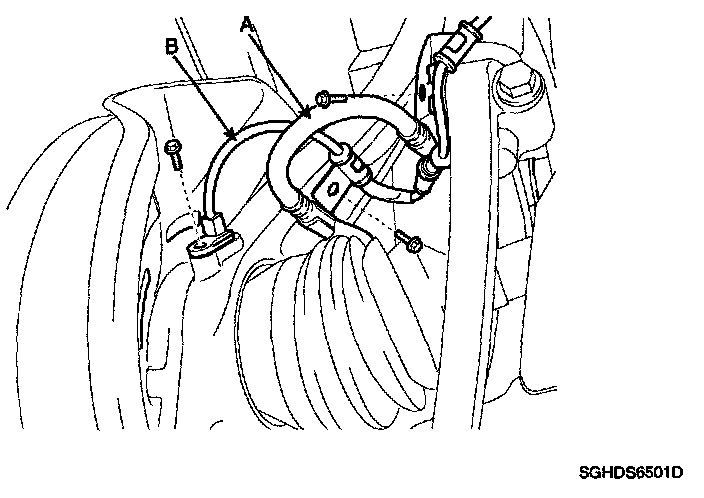

6. Install the brake hose (A) bracket and wheel speed sensor cable (B) bracket to the front strut assembly and knuckle.

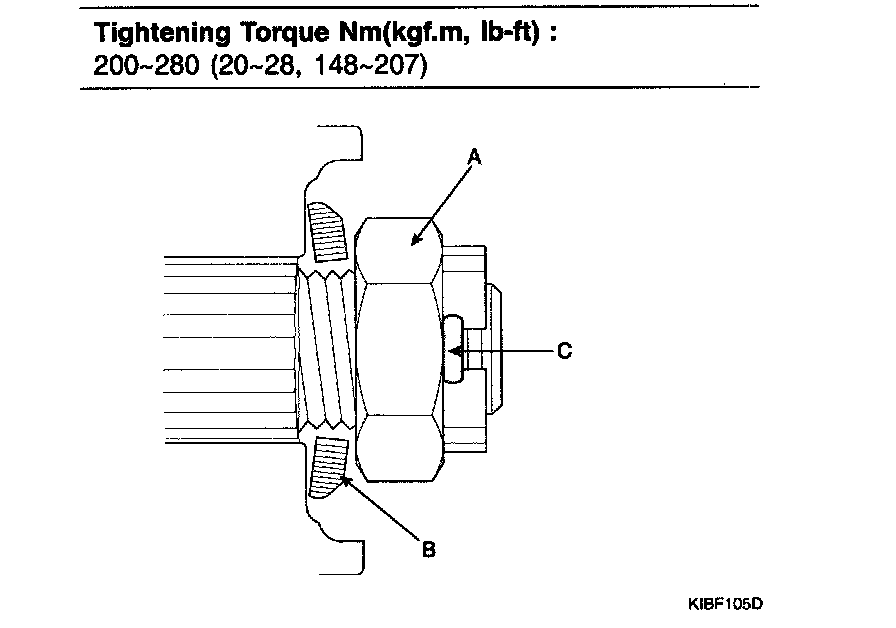

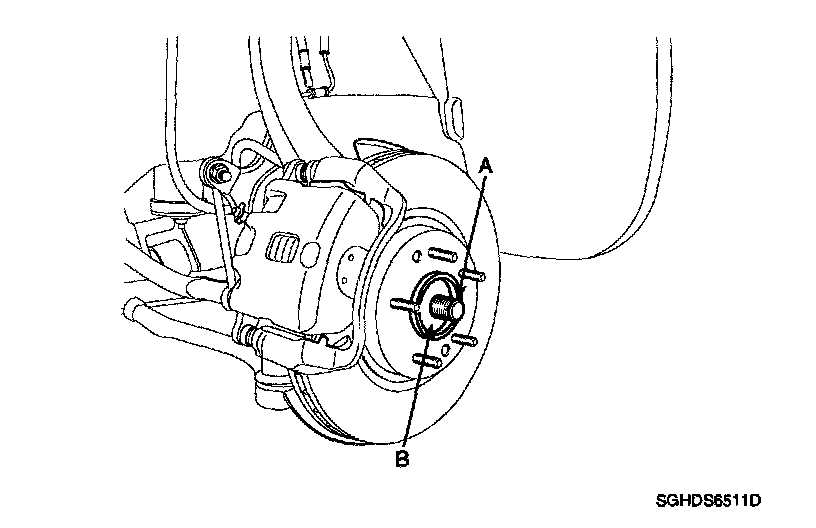

7. After installing the washer (B) with convex surface out-ward, install the castle nut (A) and the spilt pin (C).





8. Install the wheel & tire assembly.
