Overhaul

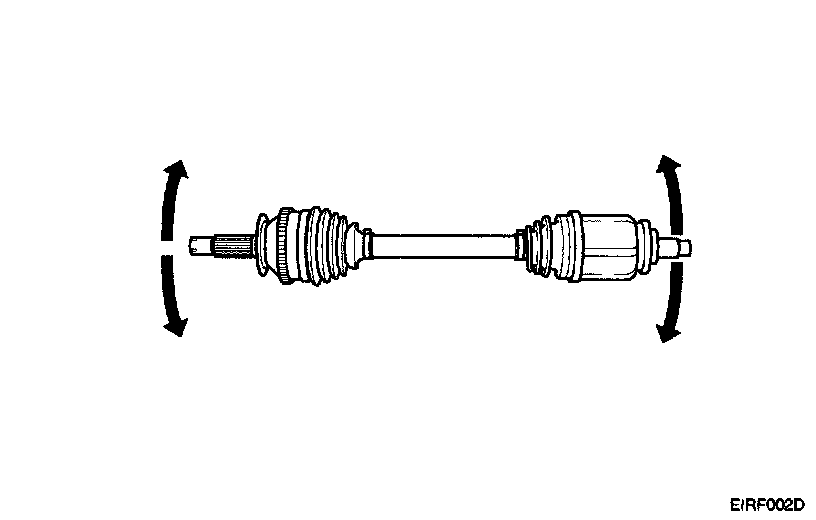

FRONT DRIVESHAFT ASSEMBLY

INSPECTION
1. Check the driveshaft boots for damage and deterioration.
2. Check the splines for wear and damage.
3. Check the ball joints for wear and operating condition.
4. Check the boots for damage and deterioration.





5. If the driveshaft is damaged, replace the driveshaft assembly.
