Automatic Transmission/Transaxle: Testing and Inspection

INPUT/OUTPUT SIGNAL VOLTAGE CHECK SHEET

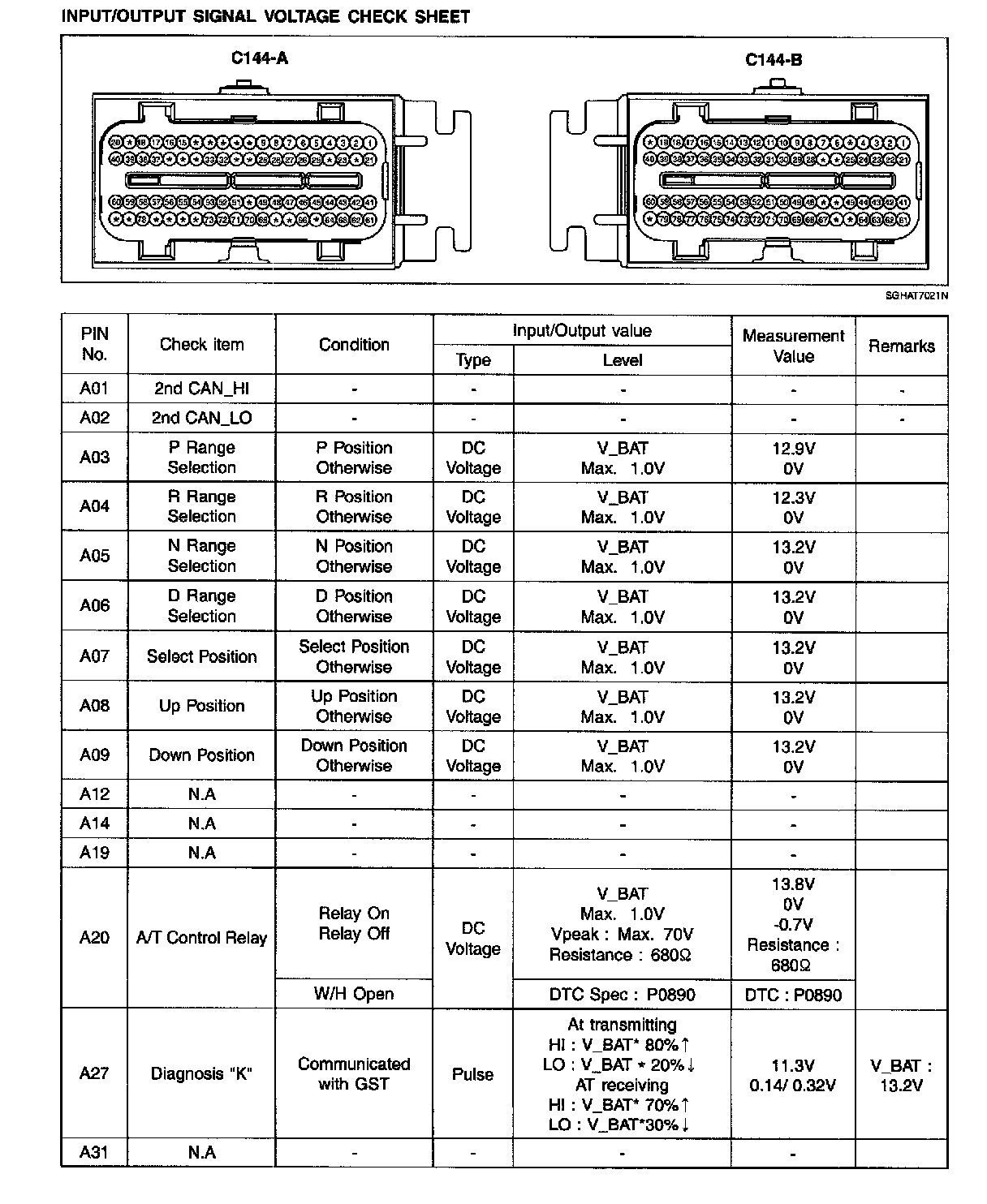

INPUT/OUTPUT SIGNAL VOLTAGE CHECK SHEET (Part 1):

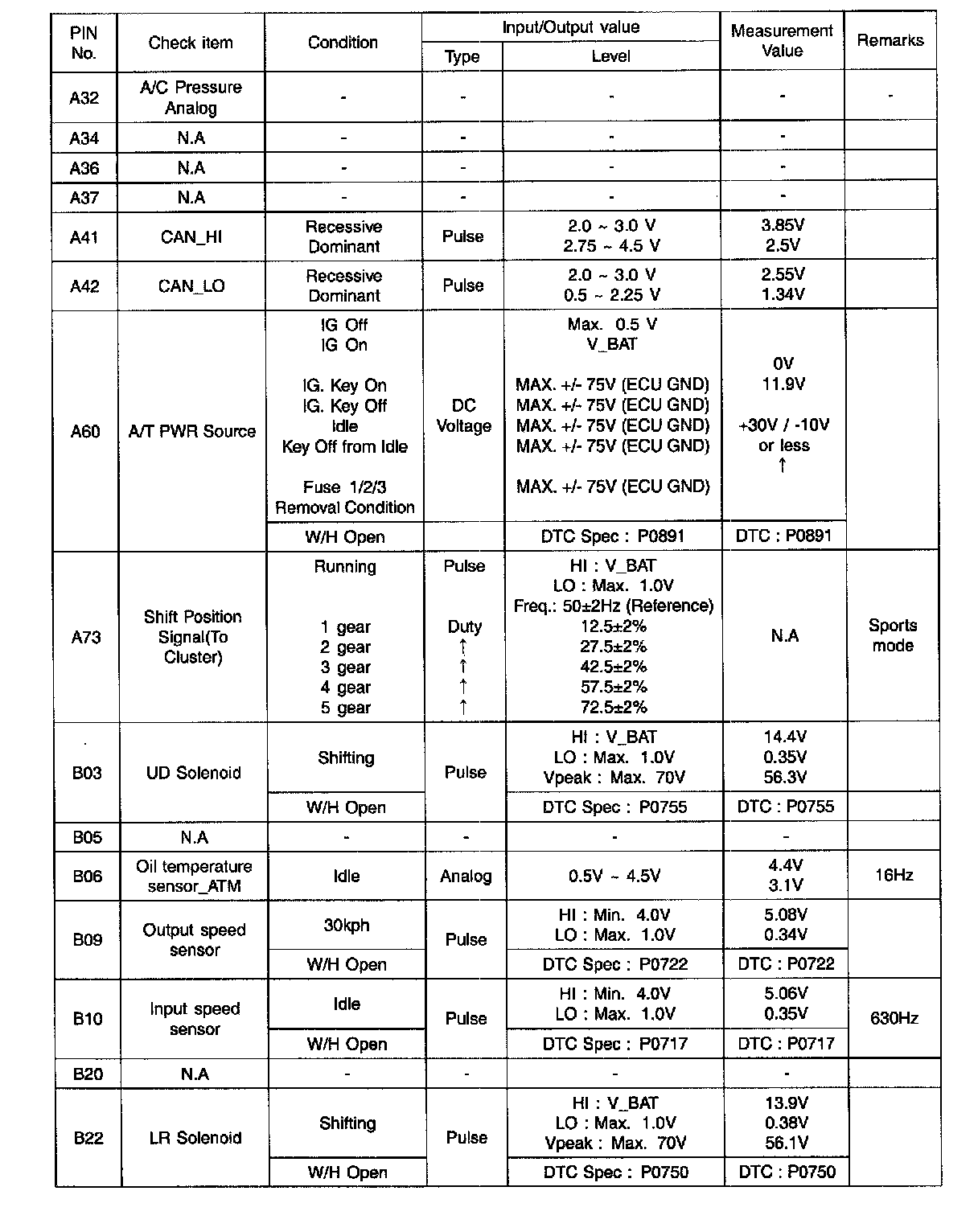

INPUT/OUTPUT SIGNAL VOLTAGE CHECK SHEET (Part 2):

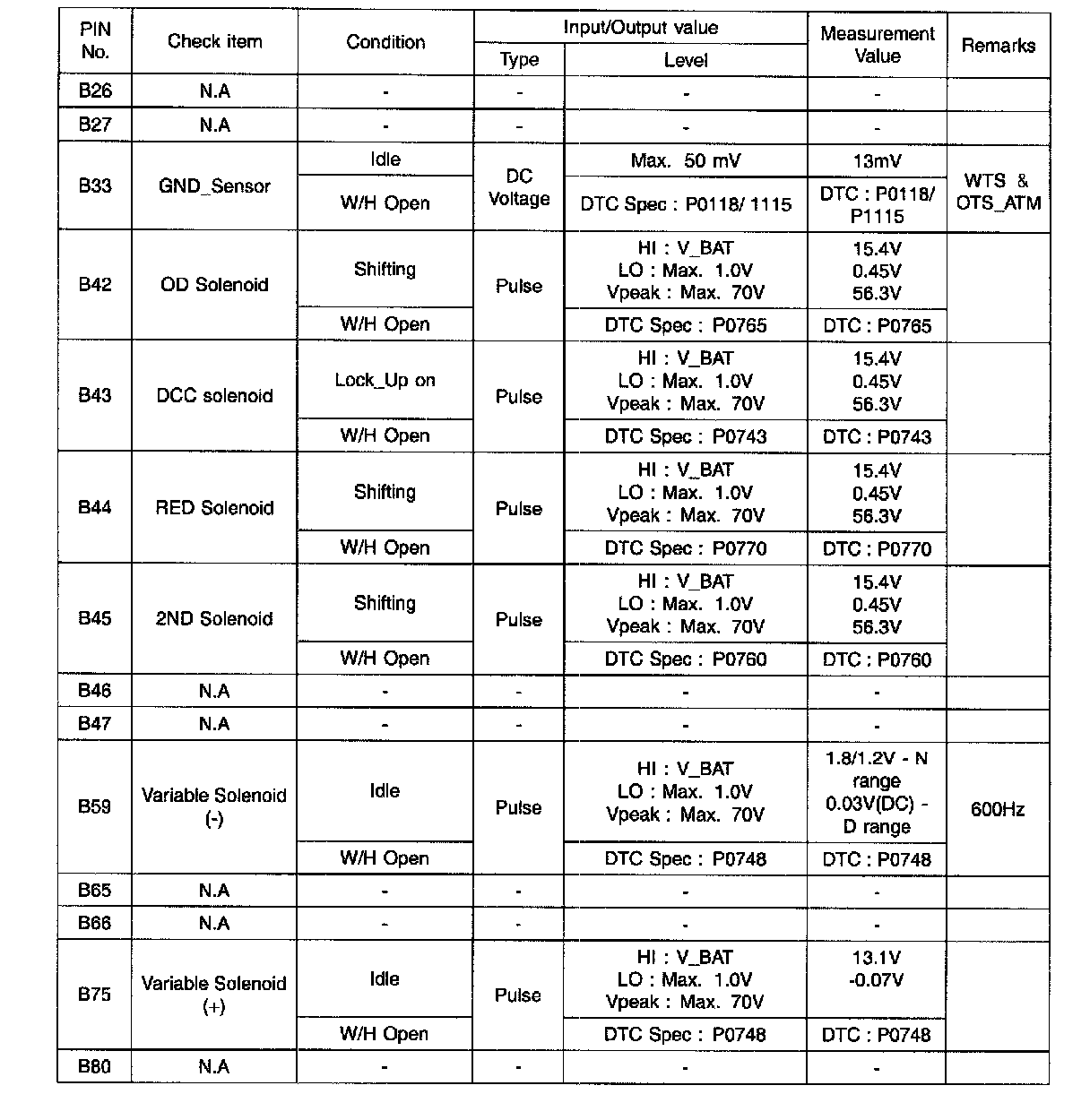

INPUT/OUTPUT SIGNAL VOLTAGE CHECK SHEET (Part 3):
