Mechanical System

MECHANICAL SYSTEM

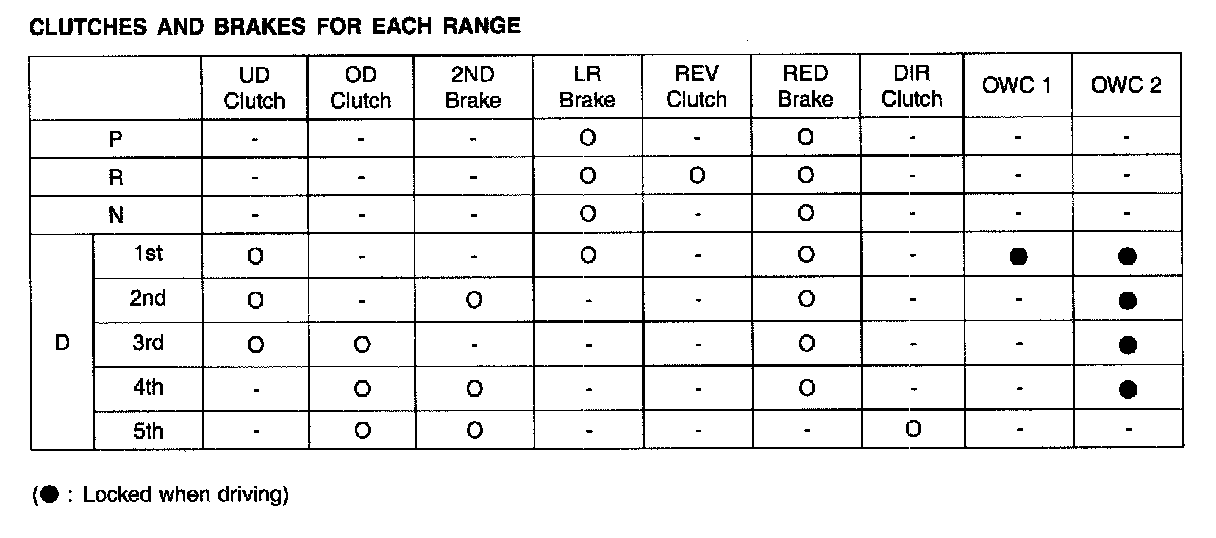

CLUTCHES AND BRAKES FOR EACH RANGE:

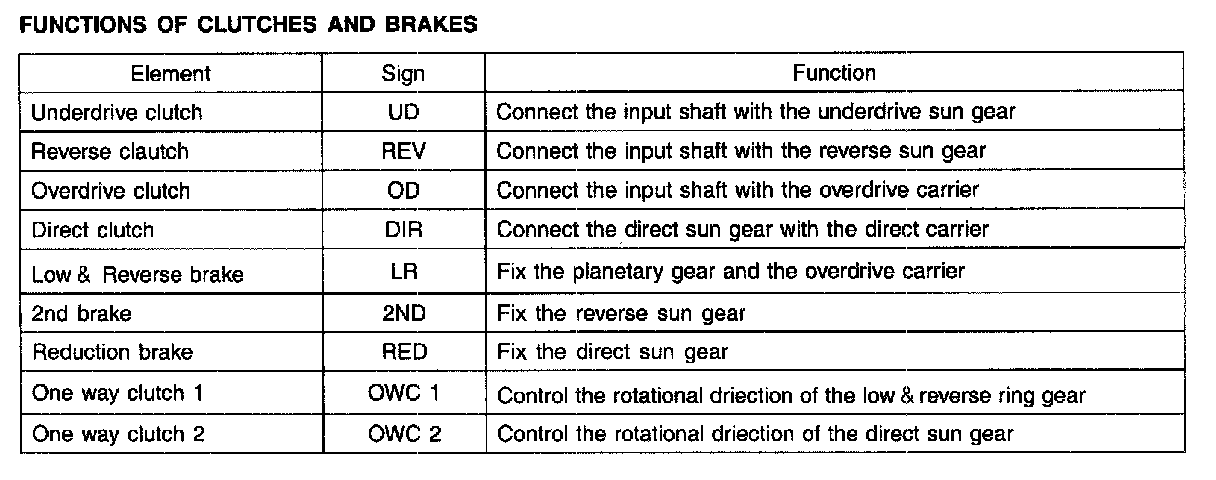

FUNCTIONS OF CLUTCHES AND BRAKES:
