Automatic Transaxle Hydraulic Circuit

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT

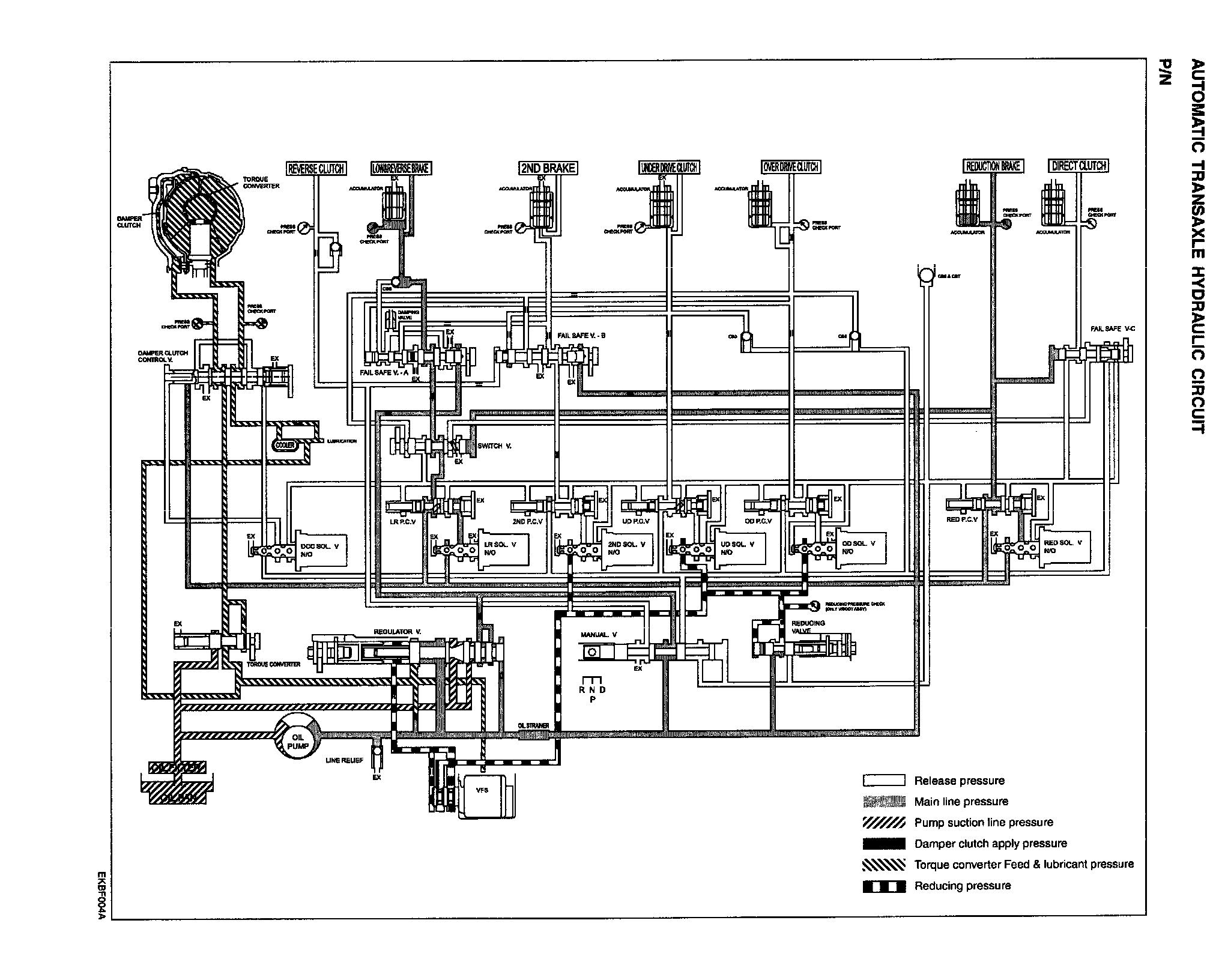

P/N:

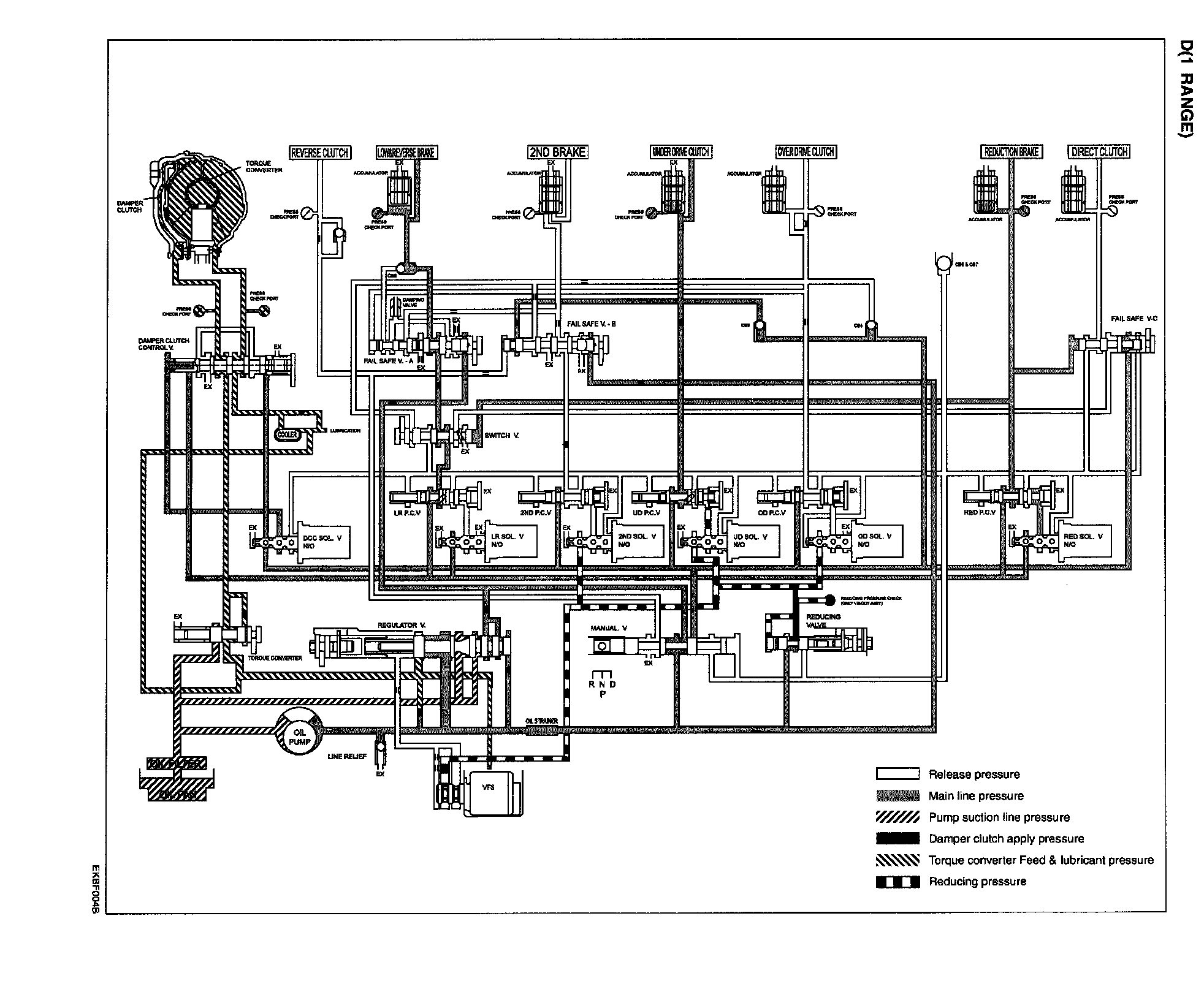

D(1 RANGE):

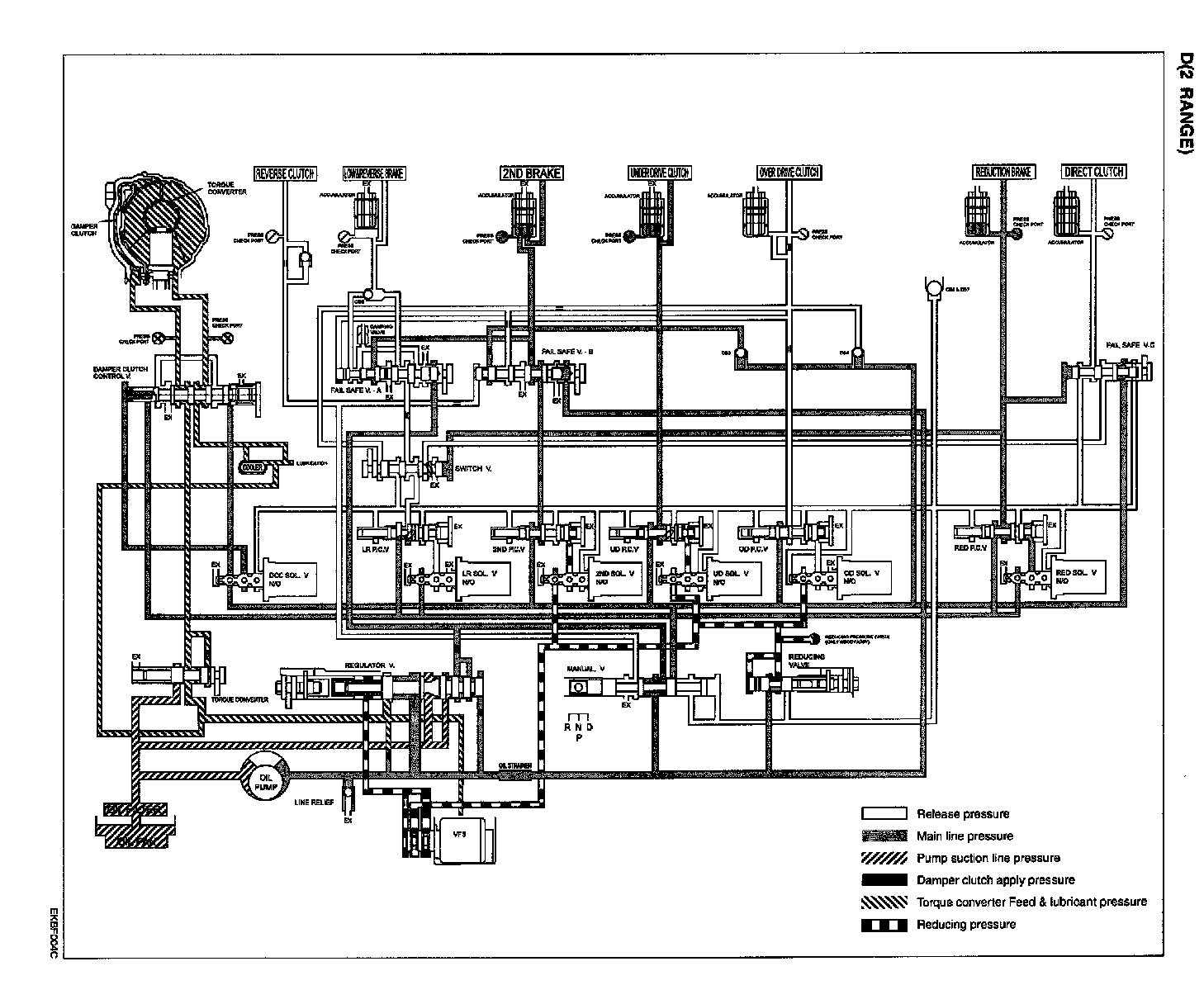

D(2 RANGE):

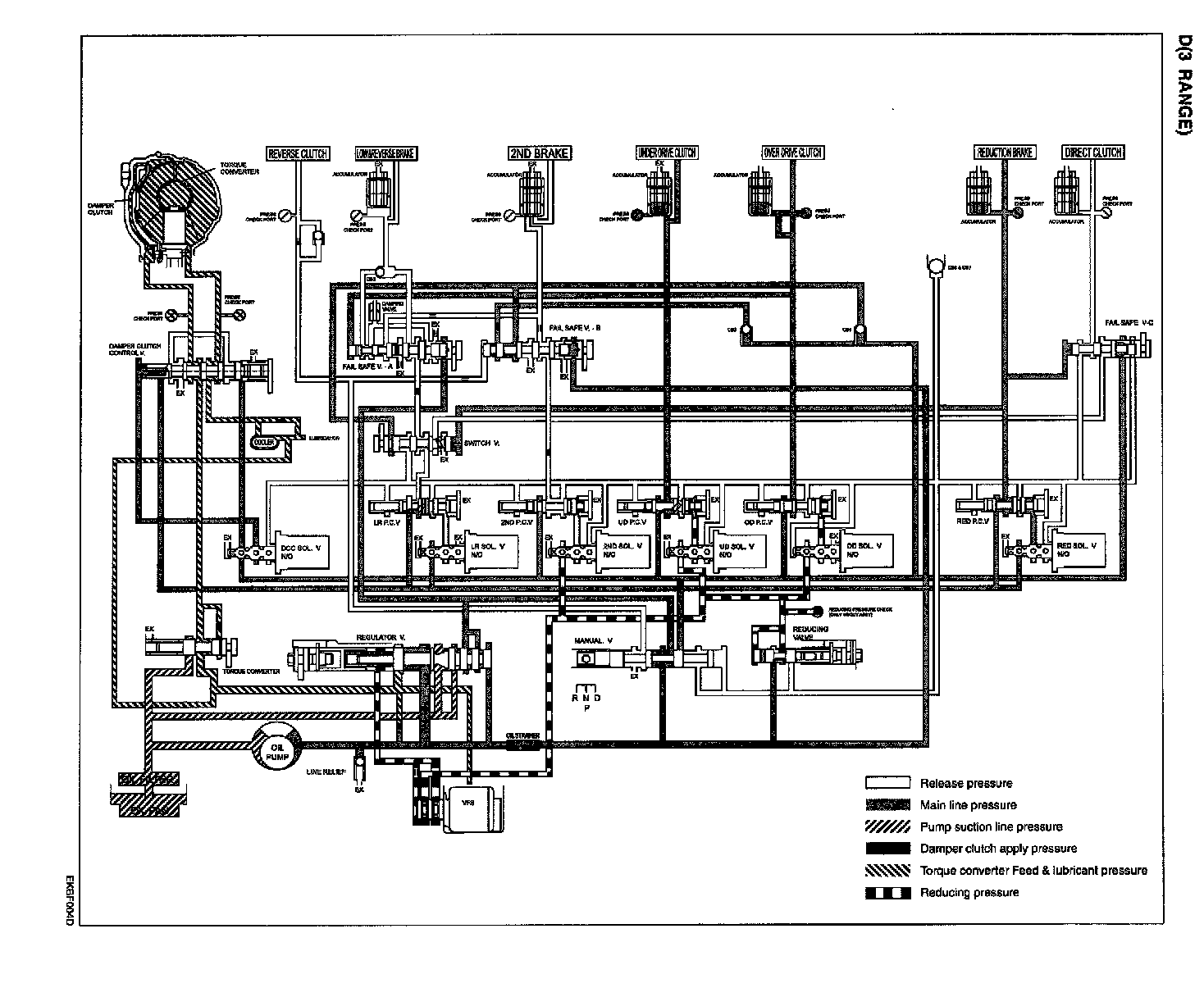

D(3 RANGE):

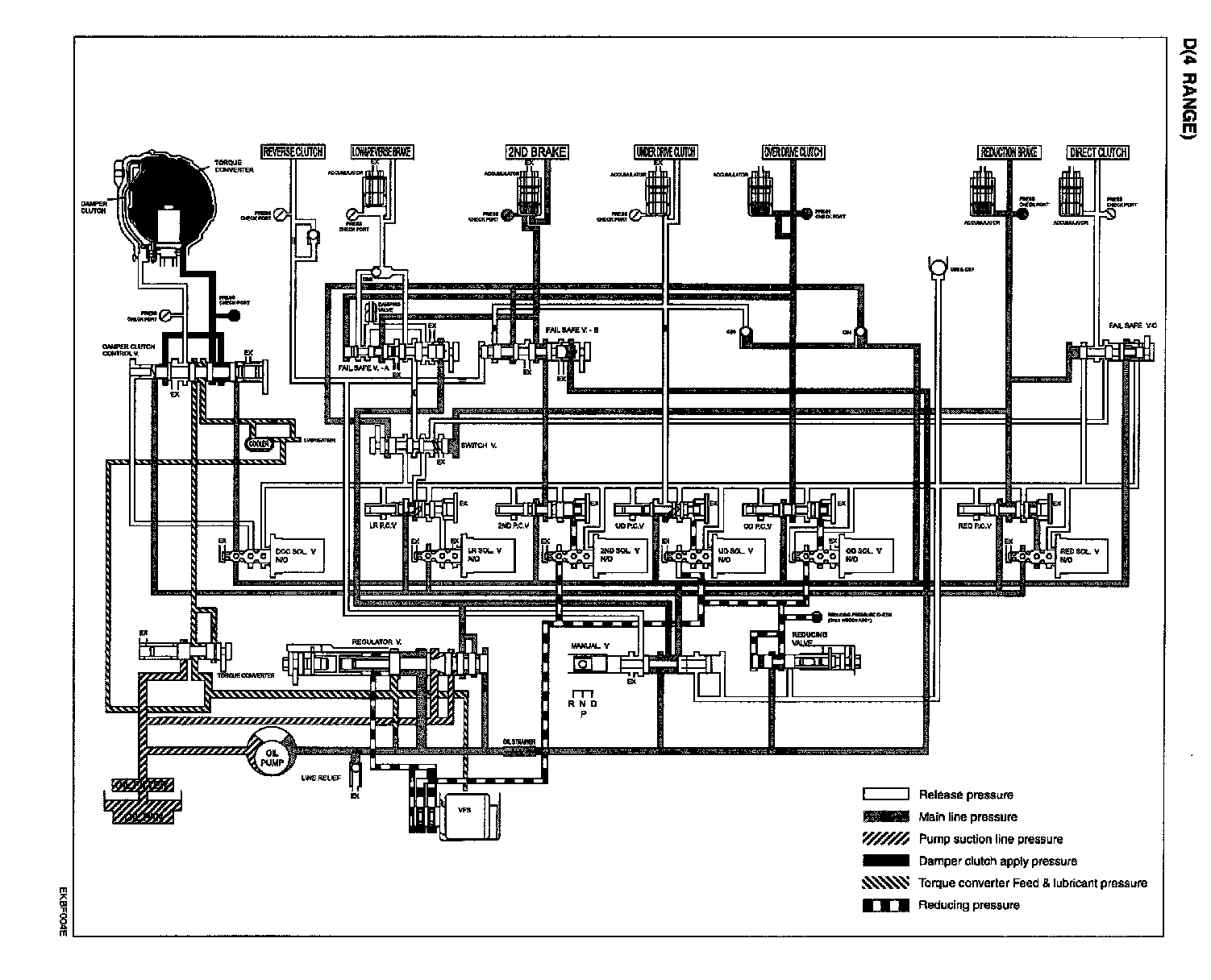

D(4 RANGE):

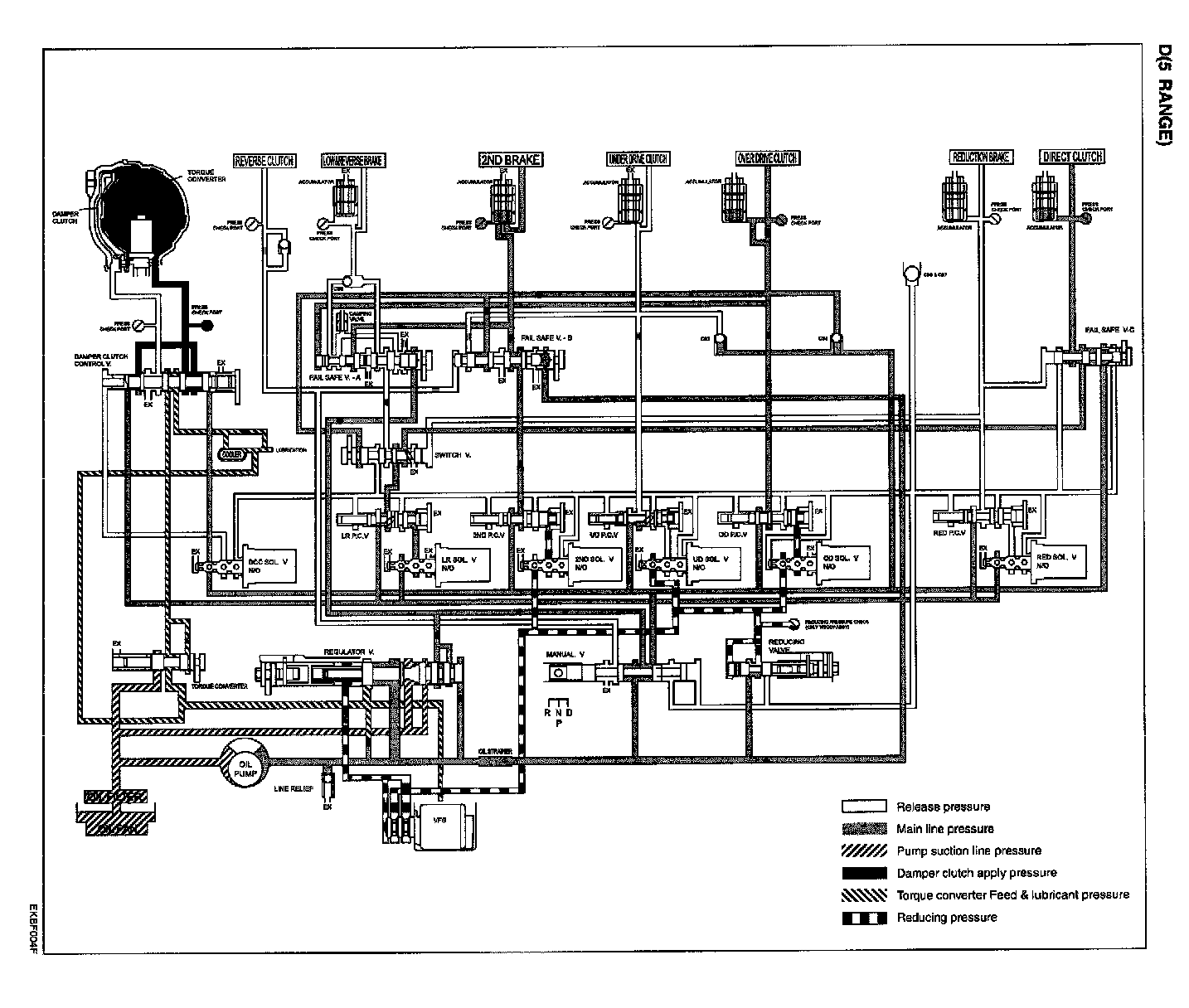

D(5 RANGE):

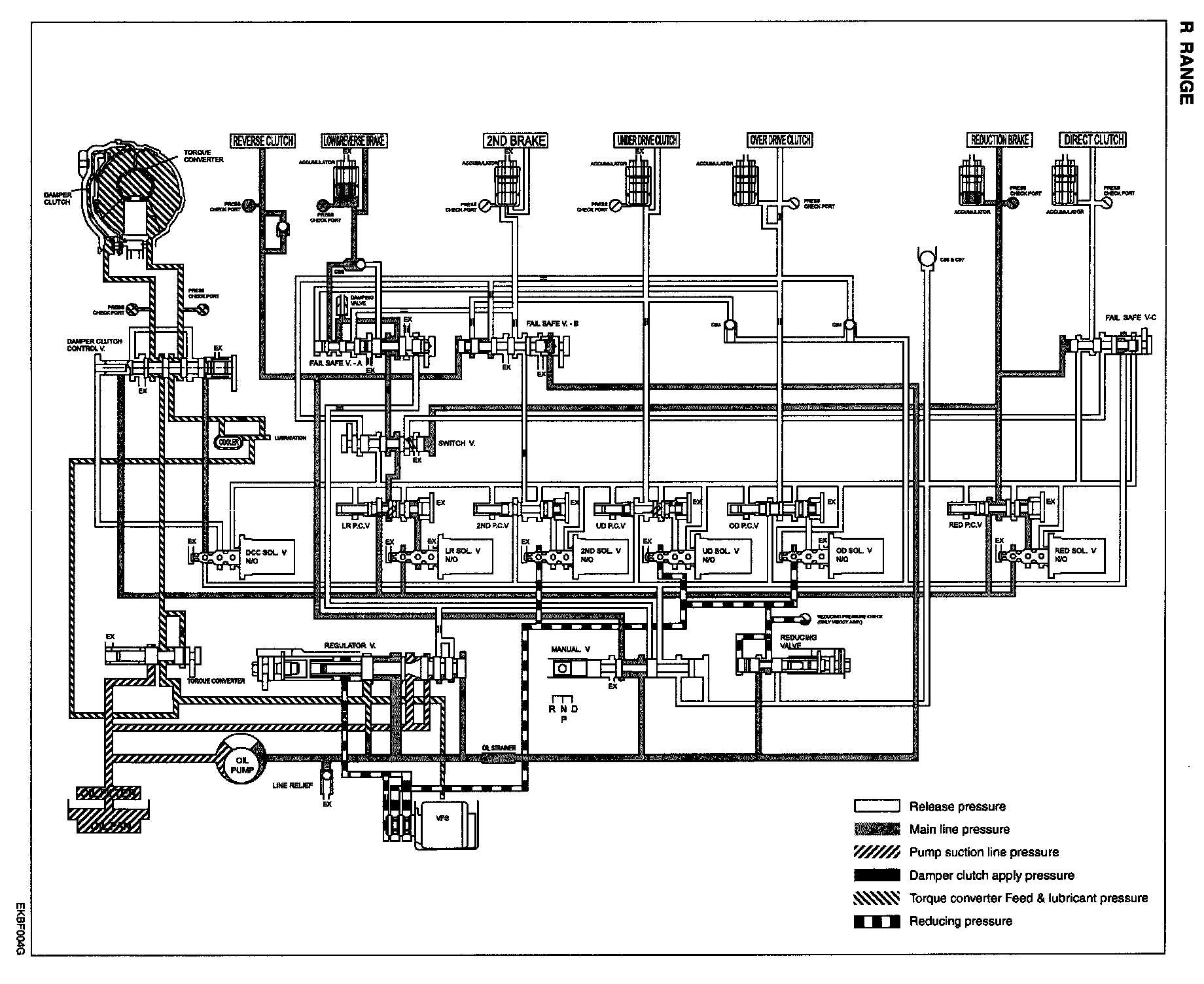

R RANGE:
