Installation

TRAILING ARM

INSTALLATION

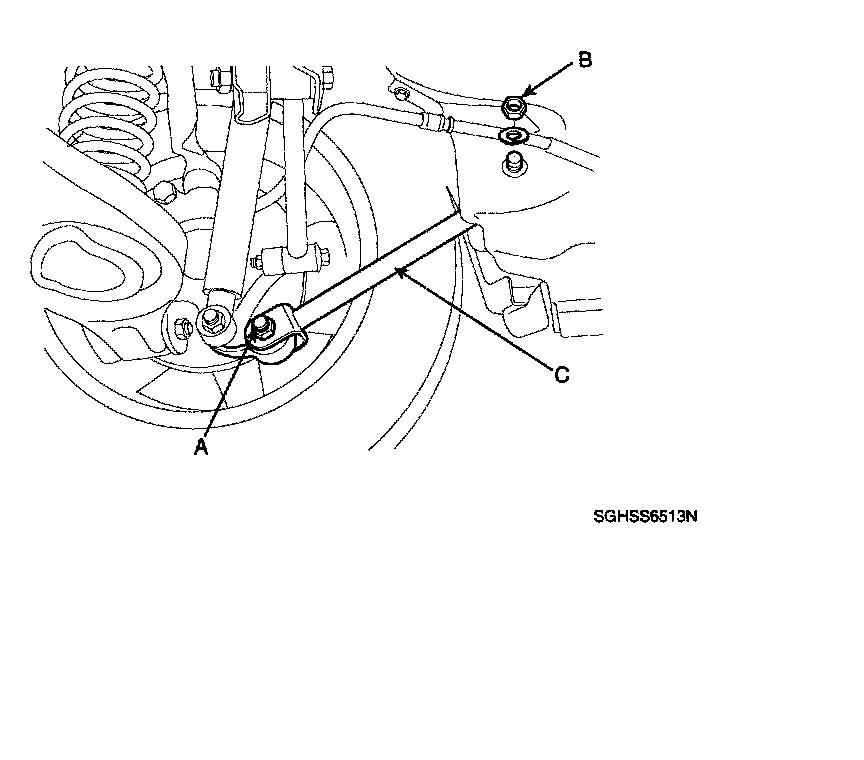

1. Install the trailing arm (C) to body and tighten the bolt and nut (B).

Tightening torque Nm (kgf.m, lb-ft): 140 - 160 (14.0 - 16.0, 101 - 116)

2. Connect the trailing arm (C) with the carrier and then tighten the bolt (A).

Tightening torque Nm (kgf.m, lb-ft): 140 - 160 (14.0 - 16.0, 101 - 116)
