Disposal

FRONT STRUT ASSEMBLY

DISPOSAL
1. Fully extend the piston rod.

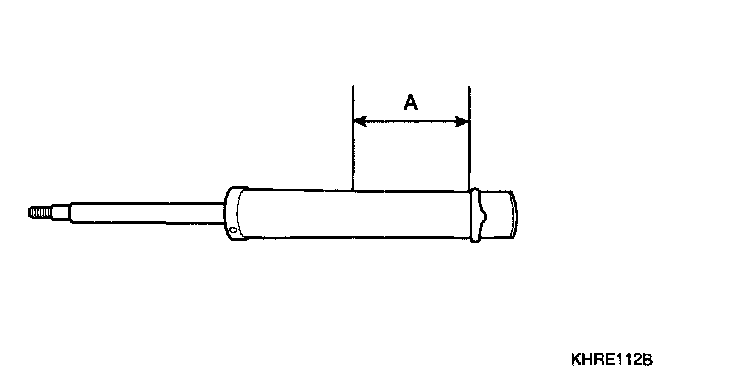

2. Drill a hole on the (A) section to discharge gas from the cylinder.





CAUTION
The gas coming out is harmless, but be careful of chips that may fly when drilling. Be sure to wear safety goggles or eye protection when performing this task.
