Reassembly

FRONT STRUT ASSEMBLY

REASSEMBLY
1. Install the front shock absorber to SST (0954626000).
2. Assemble the components of the front strut assembly in sequence. (Refer to Front strut assembly components)

CAUTION

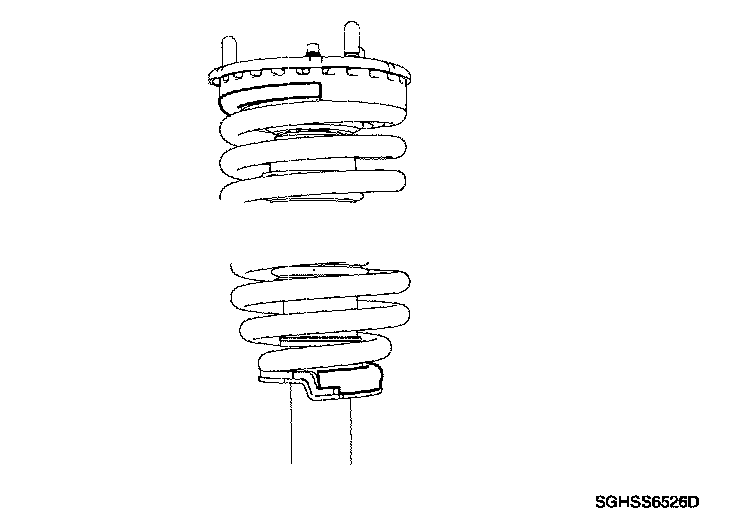

After seating the upper and lower ends of the coil spring in the upper and lower spring seat grooves correctly, tighten new self-locking nut temporarily.

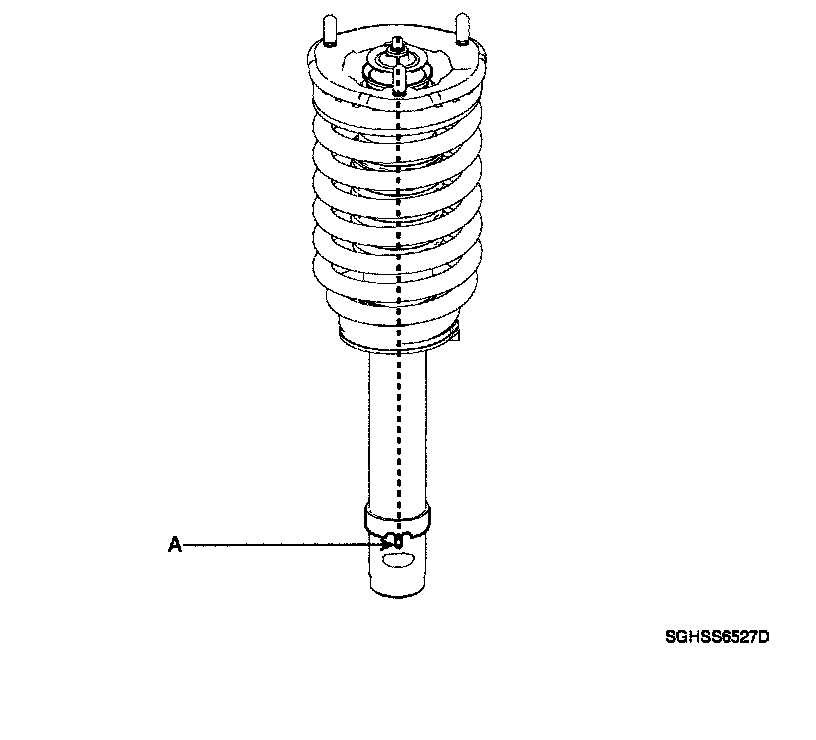

Align the assembling mark and fork bracket protrusion (A) and then tighten the self-locking nut as illustration below.
