Removal

REAR STABILIZER BAR

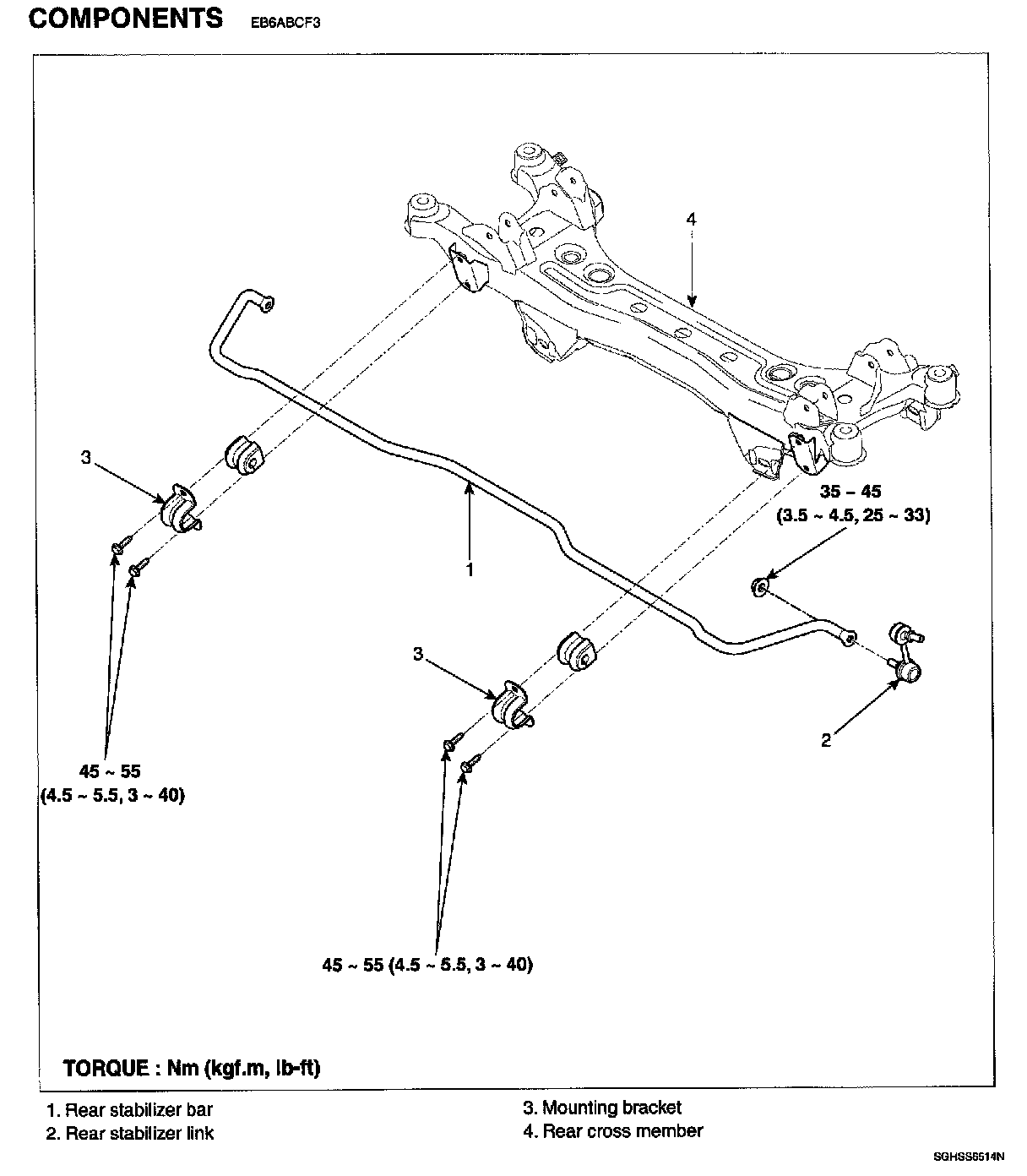

COMPONENTS:

REMOVAL
1. Remove the rear wheel & tire.

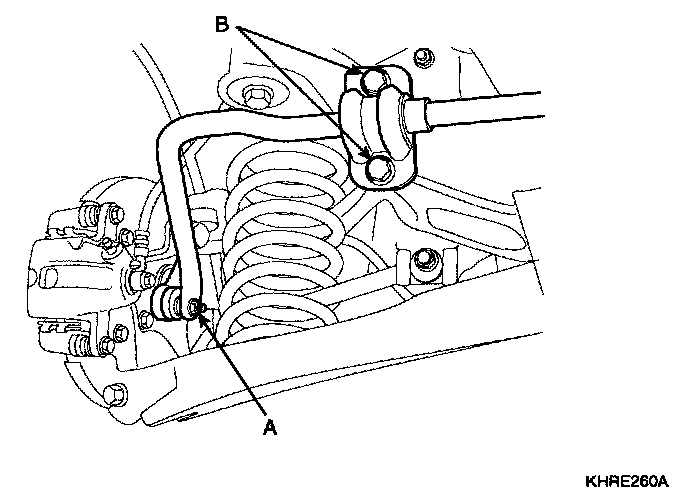

2. Disconnect the rear stabilizer bar with link by loosening the nut (A).
3. Remove the rear stabilizer bar from the rear cross member by loosening the bracket mounting bolts (B).
