Installation
REAR STABILIZER BARINSTALLATION

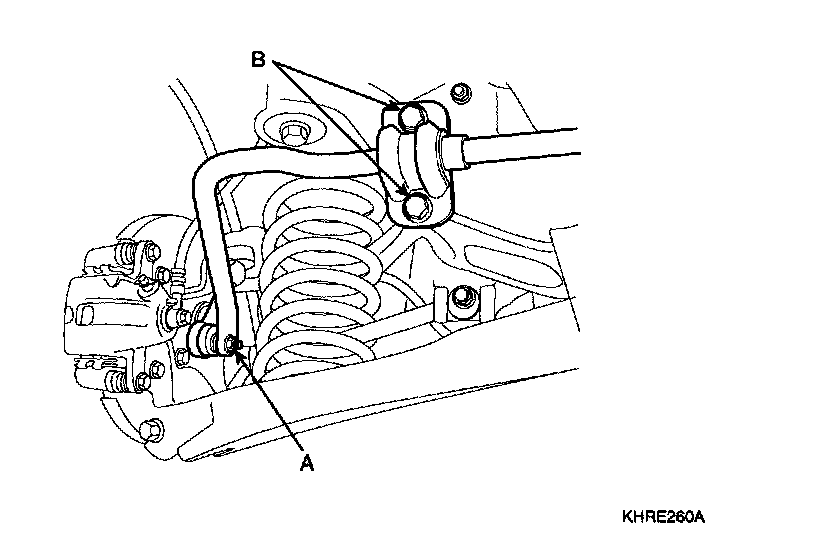

1. Install the rear stabilizer bar to the rear cross member by tightening the bracket mounting bolts (B).
Tightening torque Nm (kgf.m, lb-ft):45 - 55 (4.5 - 5.5, 3 - 40)
2. Connect the rear stabilizer bar with link and tighten the nut (A).
Tightening torque Nm (kgf.m, lb-ft): 35 - 45 (3.5 - 4.5, 25 - 33)
3. Install the rear wheel & tire.
Tightening torque Nm (kgf.m, lb-ft):90 - 110 (9.0 - 11.0, 65 - 8)
