Removal

FRONT STABILIZER BAR

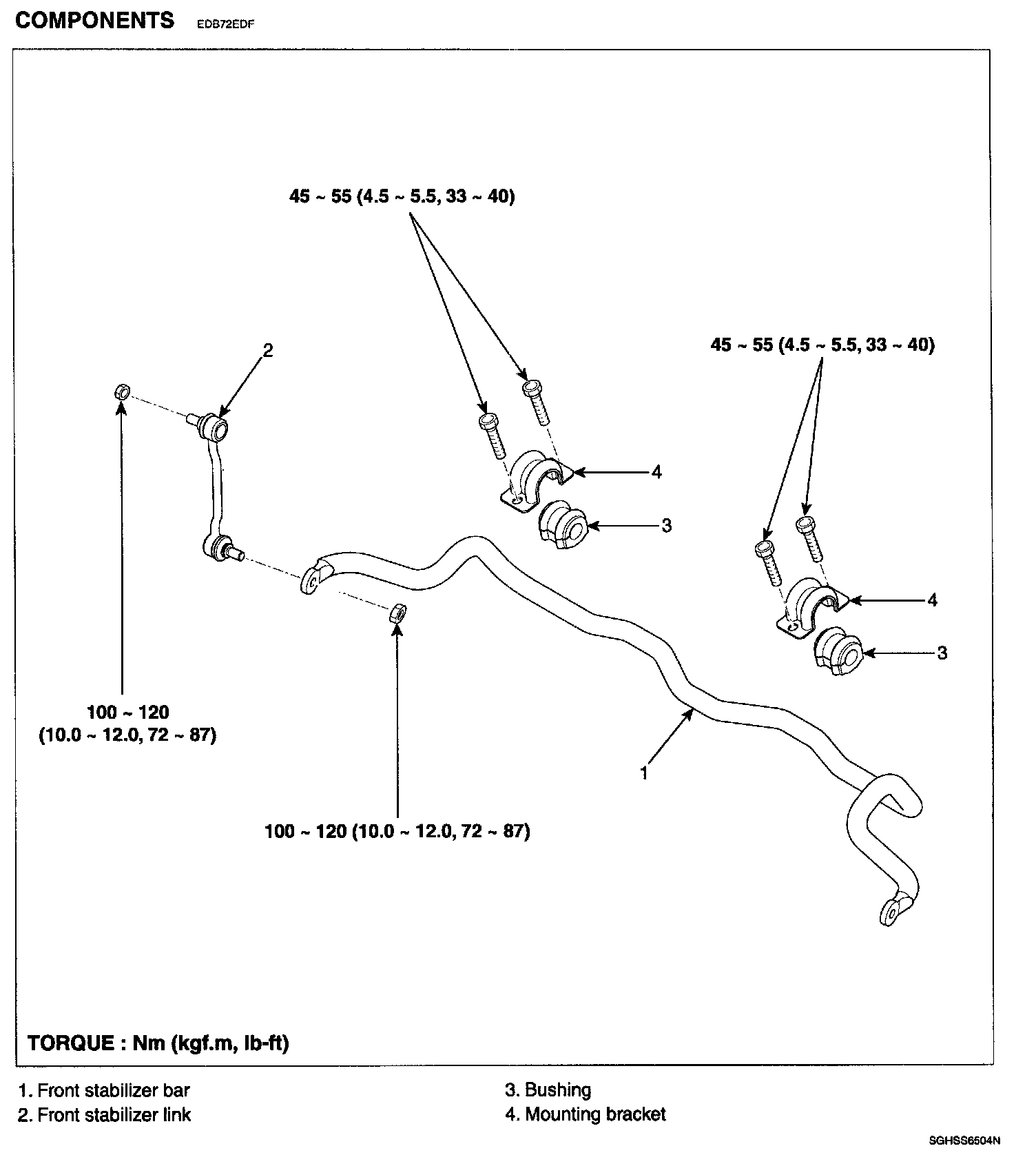

COMPONENTS:

REMOVAL
1. Remove the front wheel & tire.
2. Disconnect the power steering pressure tube from the pump by loosening the eye bolt and loosen pressure hose bracket bolt.

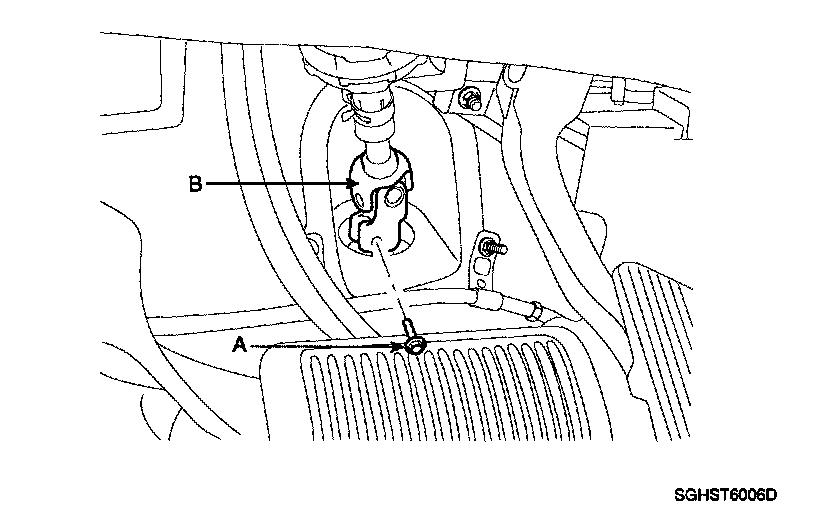

3. Loosen the bolt (A) and then disconnect the universal joint assembly (B) from the pinion of the steering gear box.

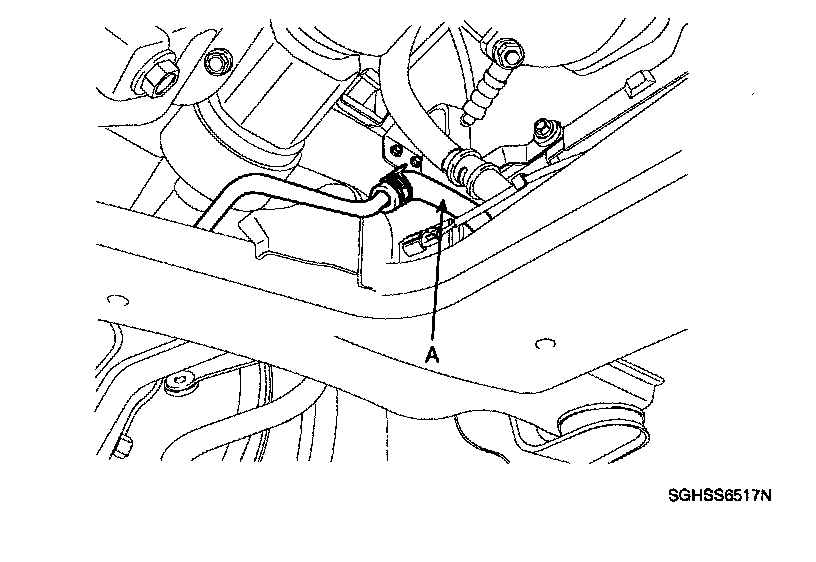

4. Disconnect the power steering return hose (A).

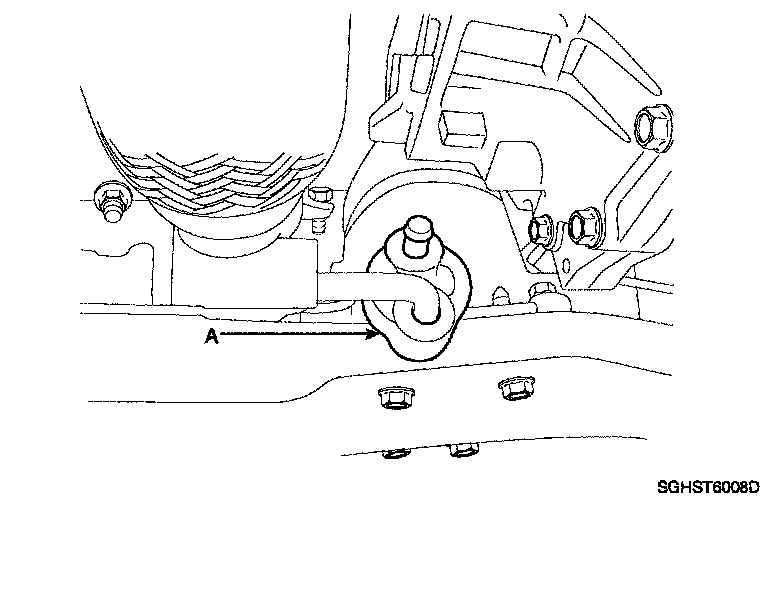

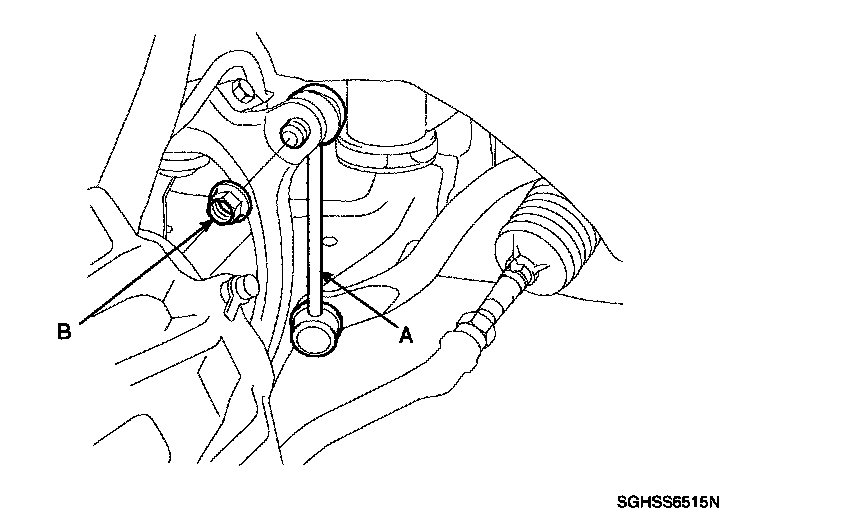

5. Loosen the nut (B) and then disconnect the stabilizer link (A) with the mounting fork.

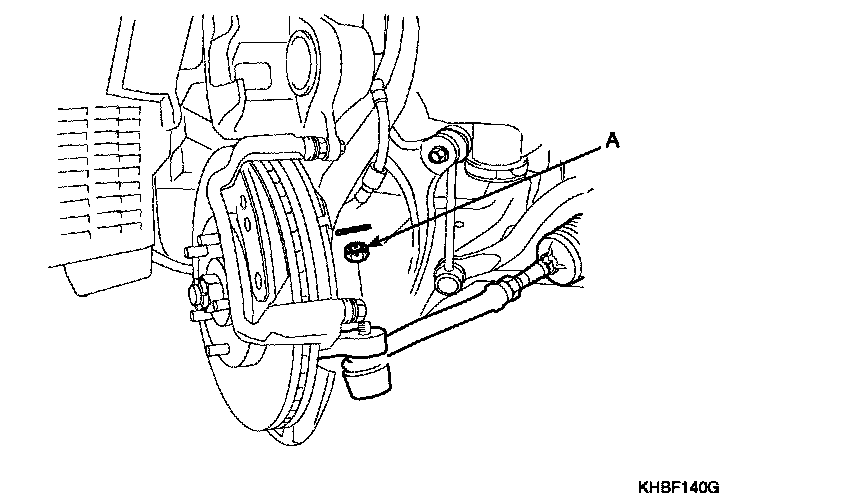

6. Remove the split pin and castle nut (A).

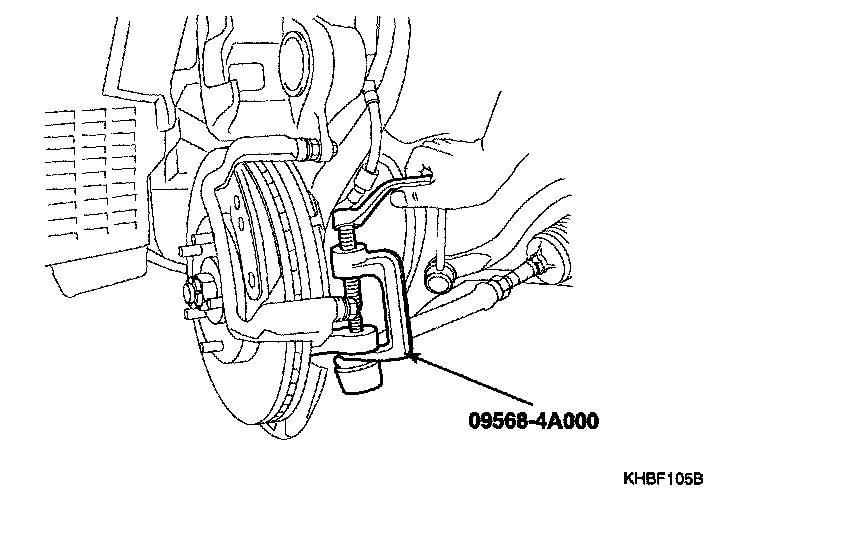

7. Disconnect the tie-rod end from the knuckle by using SST (09568-34000).

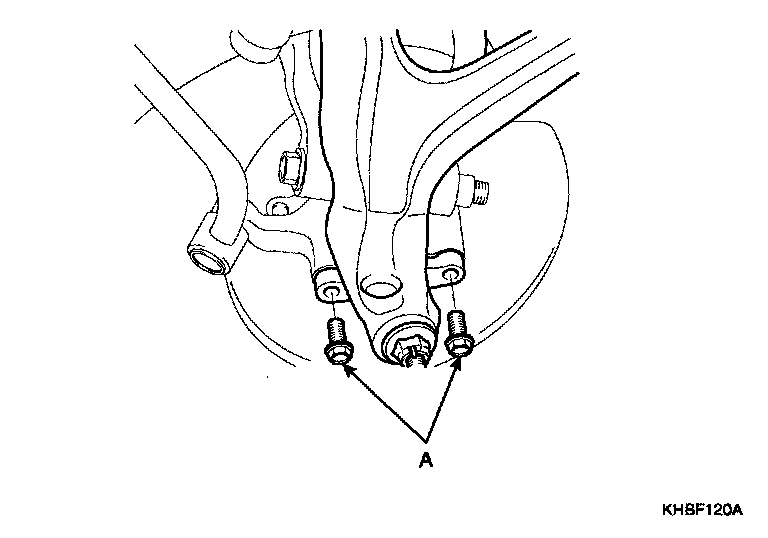

8. Disconnect the lower arm with knuckle by loosening the mounting bolts (A).

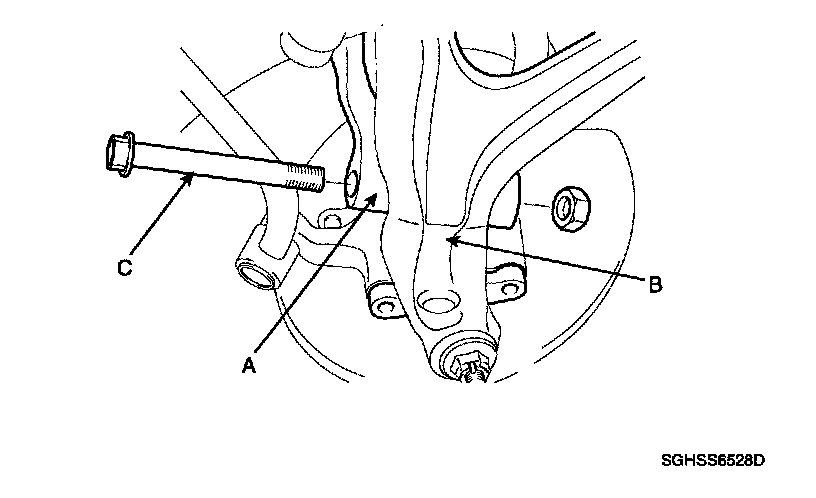

9. Remove the through bolt (C) and nut and then disconnect the mounting fork (A) with the lower arm (B).





10. Remove the muffler rubber hanger (A).





11. Remove the front roll stopper through bolt (A) and nut.





12. Loosen the rear roll stopper mounting bolts (A).

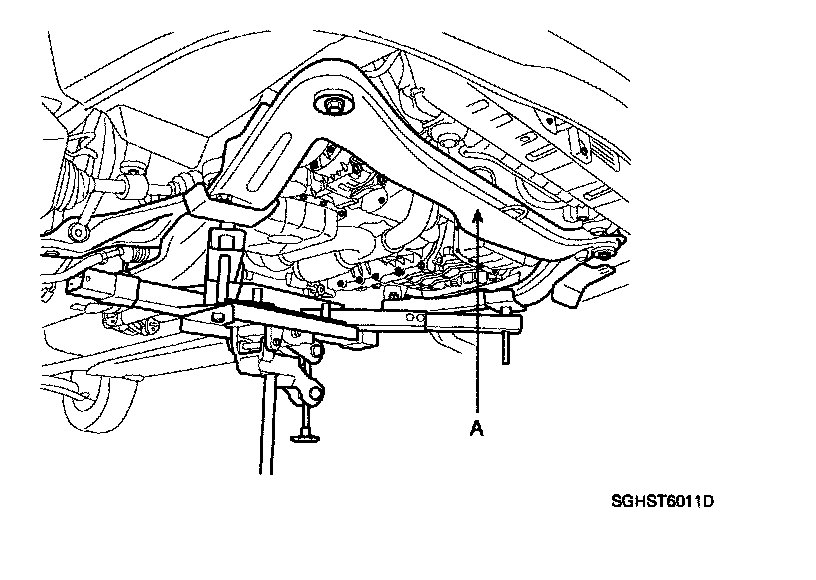

13. Remove the sub-frame (A) from the body by loosening the mounting bolts and nuts.

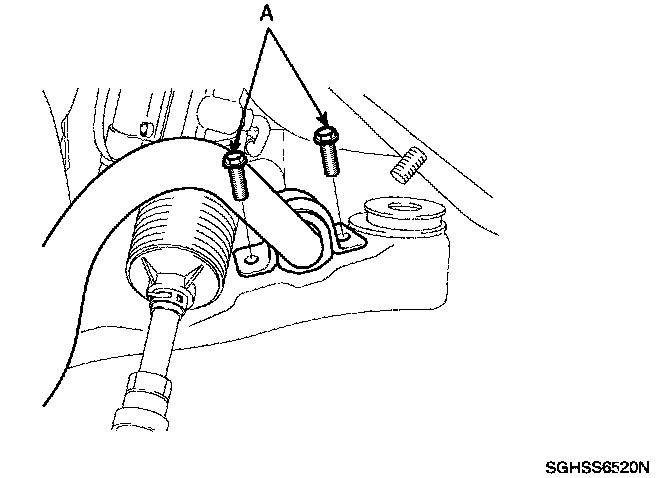

14. Remove stabilizer from the sub-frame by loosening the bracket mounting bolts (A).

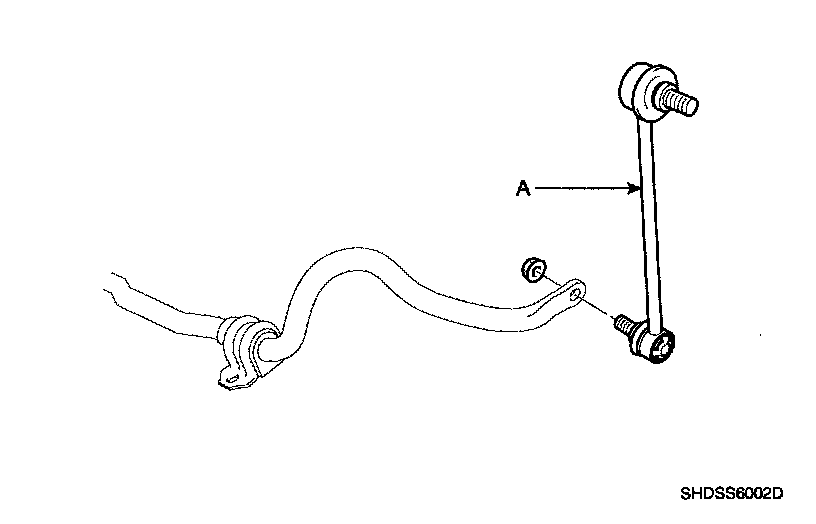

15. Disconnect the stabilizer link (A) with the stabilizer bar by loosening the nut.

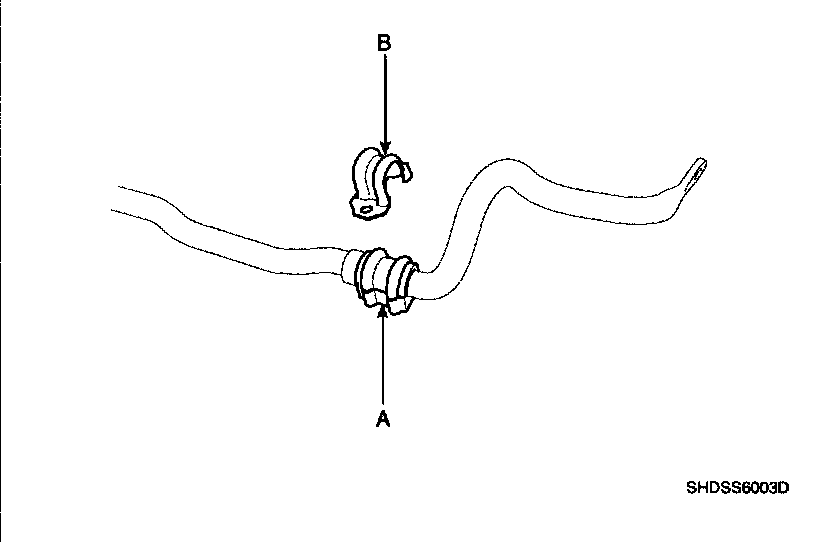

16. Remove the bushing (A) and the bracket (B) from the stabilizer bar.
