Rear Upper Arm

REAR UPPER ARM

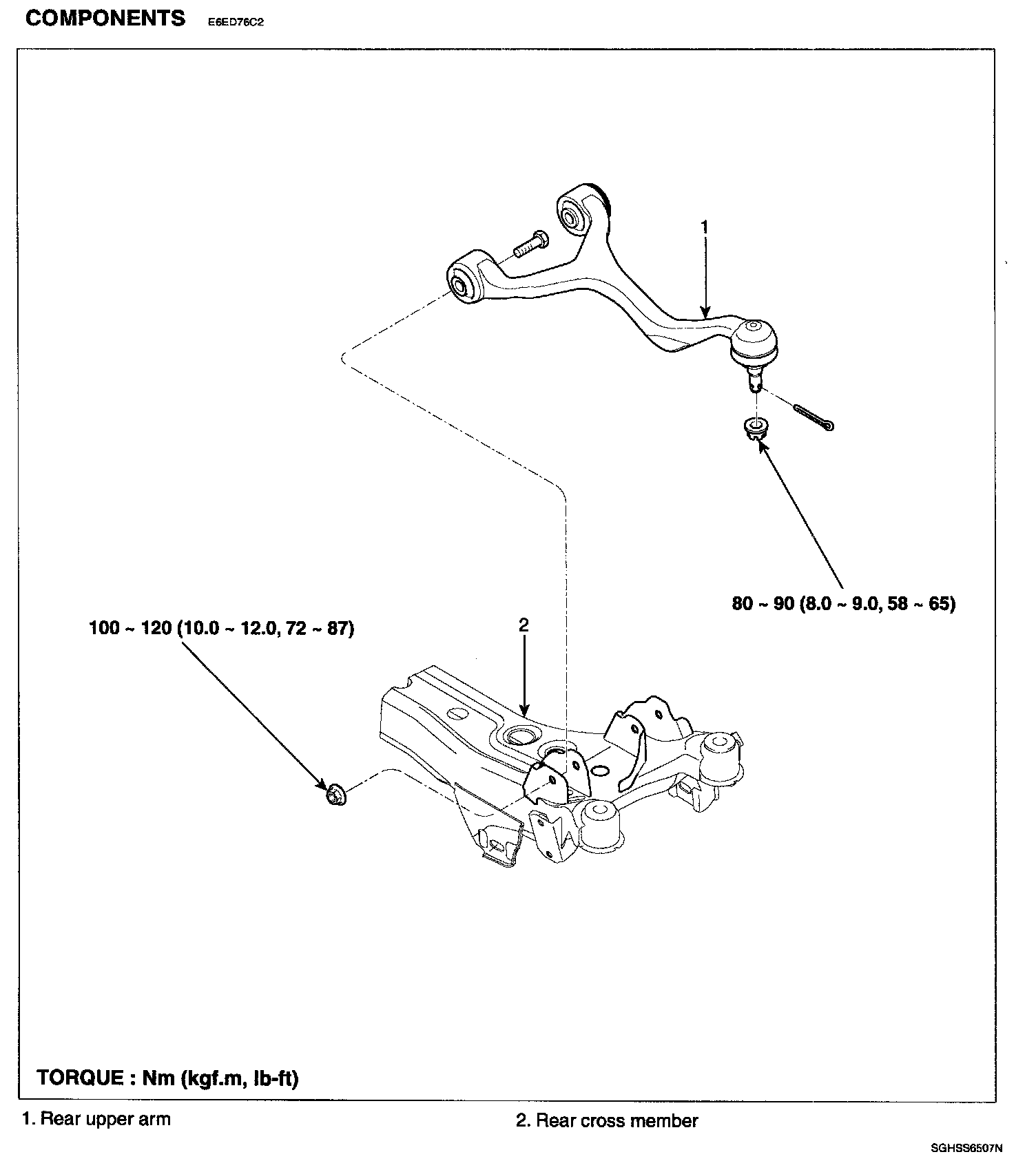

COMPONENTS:

REMOVAL
1. Remove the rear wheel & tire.

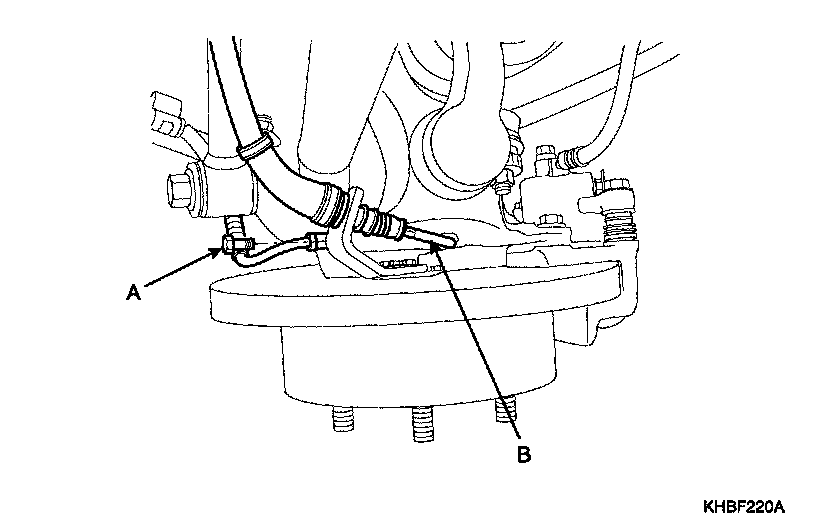

2. Remove the parking brake cable (B) and wheel speed sensor mounting bolt (A).

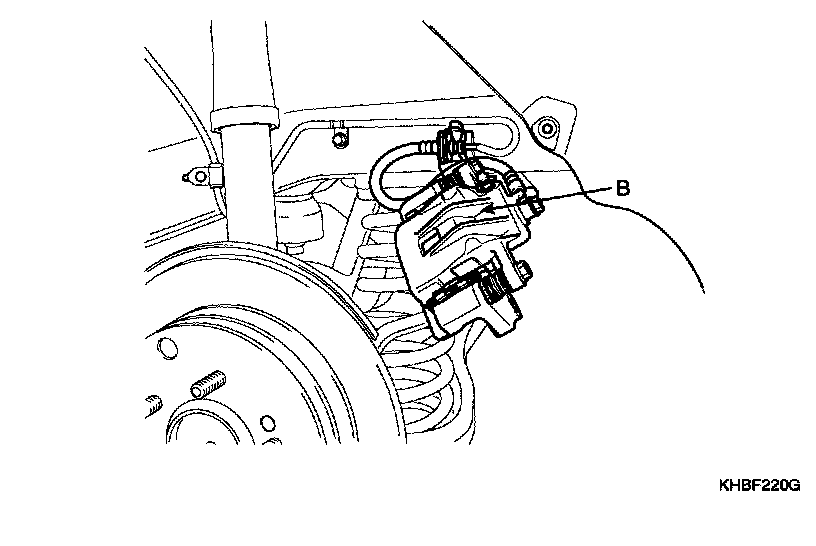

3. Remove the caliper (B) from the carrier by loosening the mounting bolts (A) and then suspend it with wire.

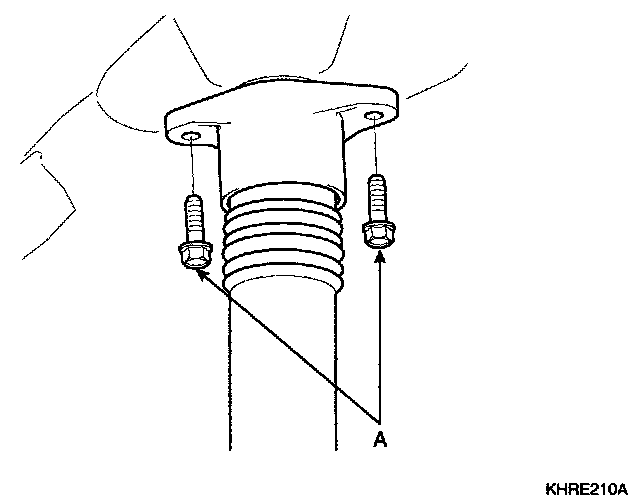

4. Remove the rear shock absorber bracket mounting bolts (A).

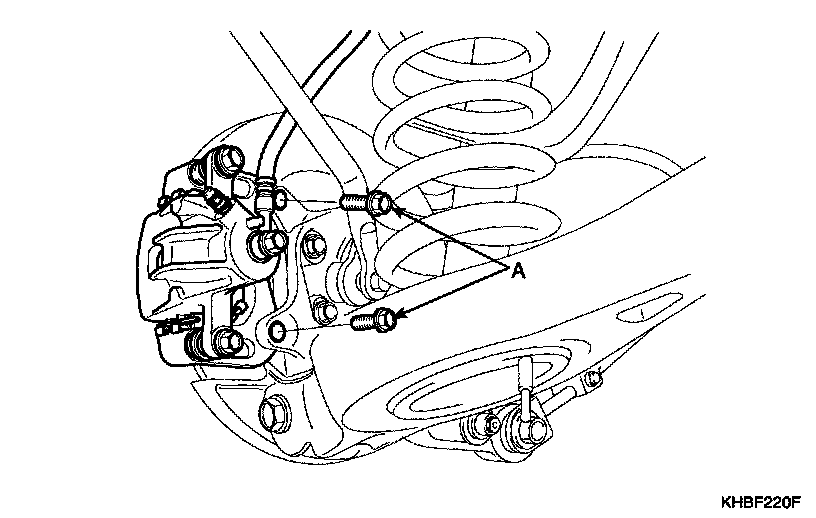

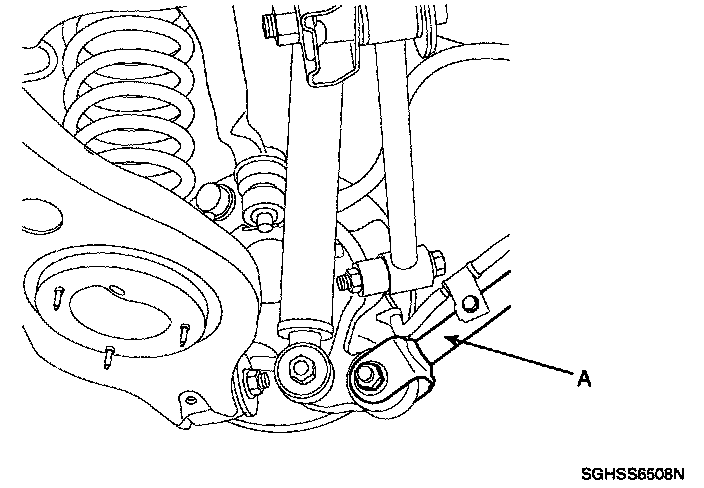

5. Disconnect the trailing arm (A) with carrier by loosening the bolt and nut.





6. Remove the center and main muffler.

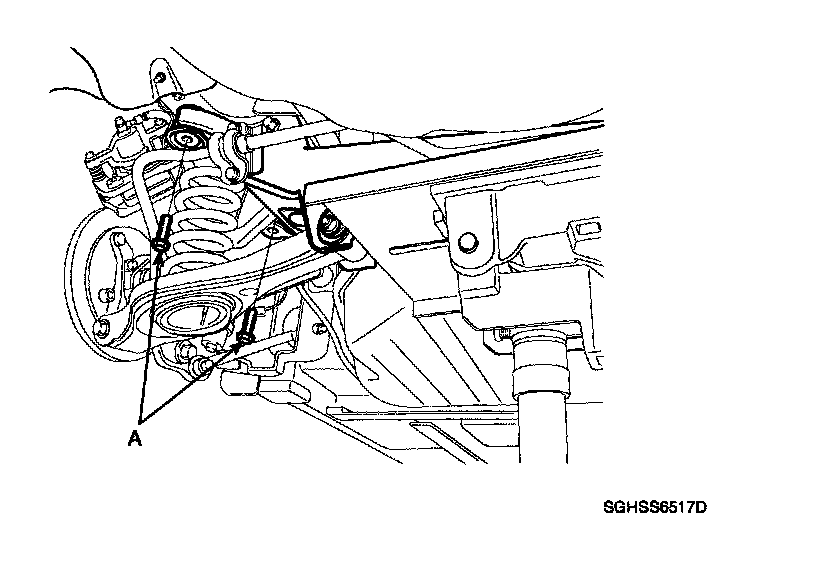

7. Remove the rear cross member from the body by loosening the mounting bolts (A).

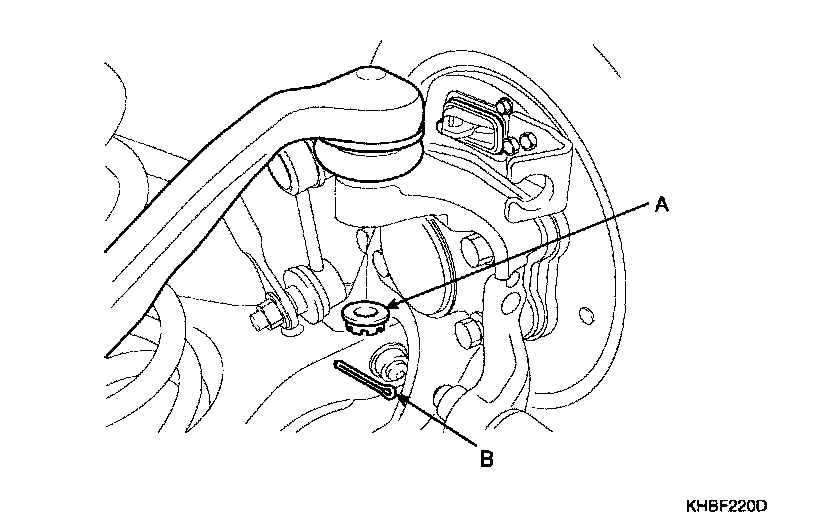

8. Remove the split pin (B) and castle nut (A) from the rear upper arm ball joint.

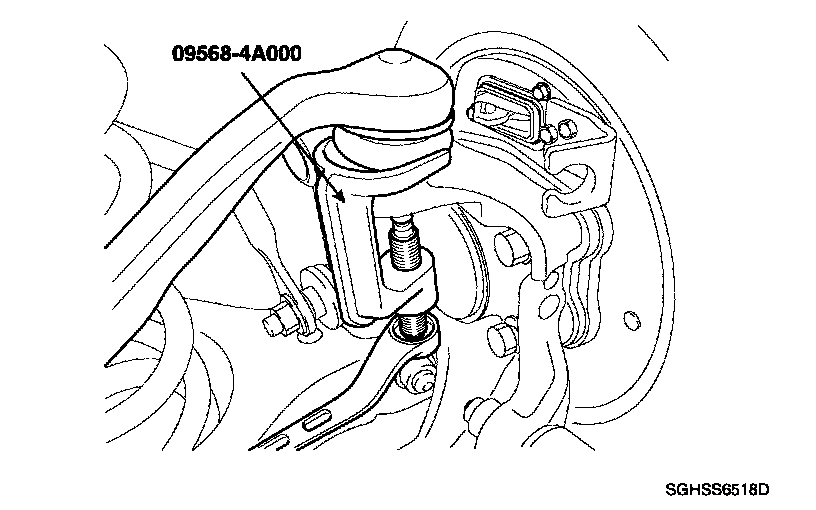

9. Disconnect the upper arm ball joint with the carrier by using SST (09568-4A000 or 09568-34000).

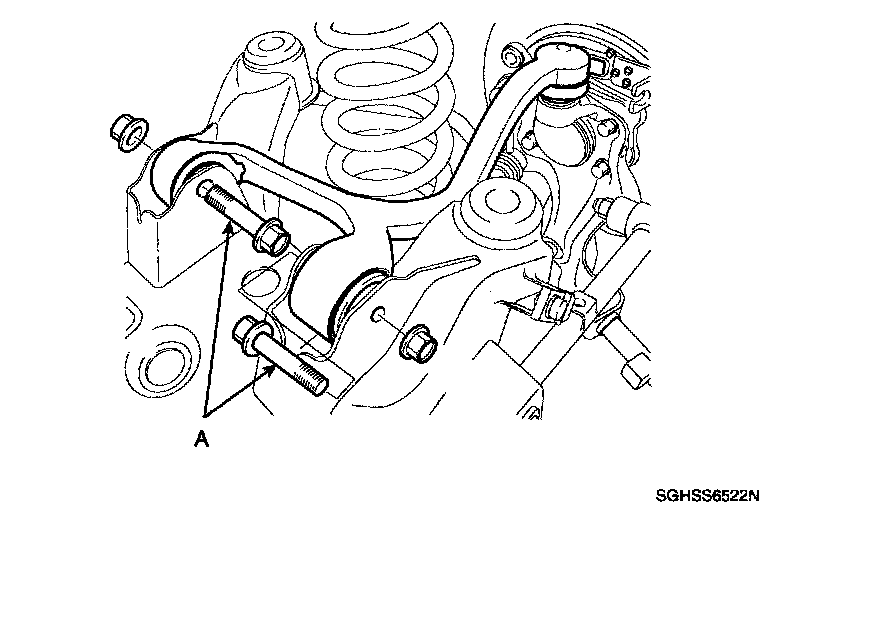

10. Remove the upper arm from the rear cross member by loosening the bolts (A) and nut.
