Rear Assist Arm

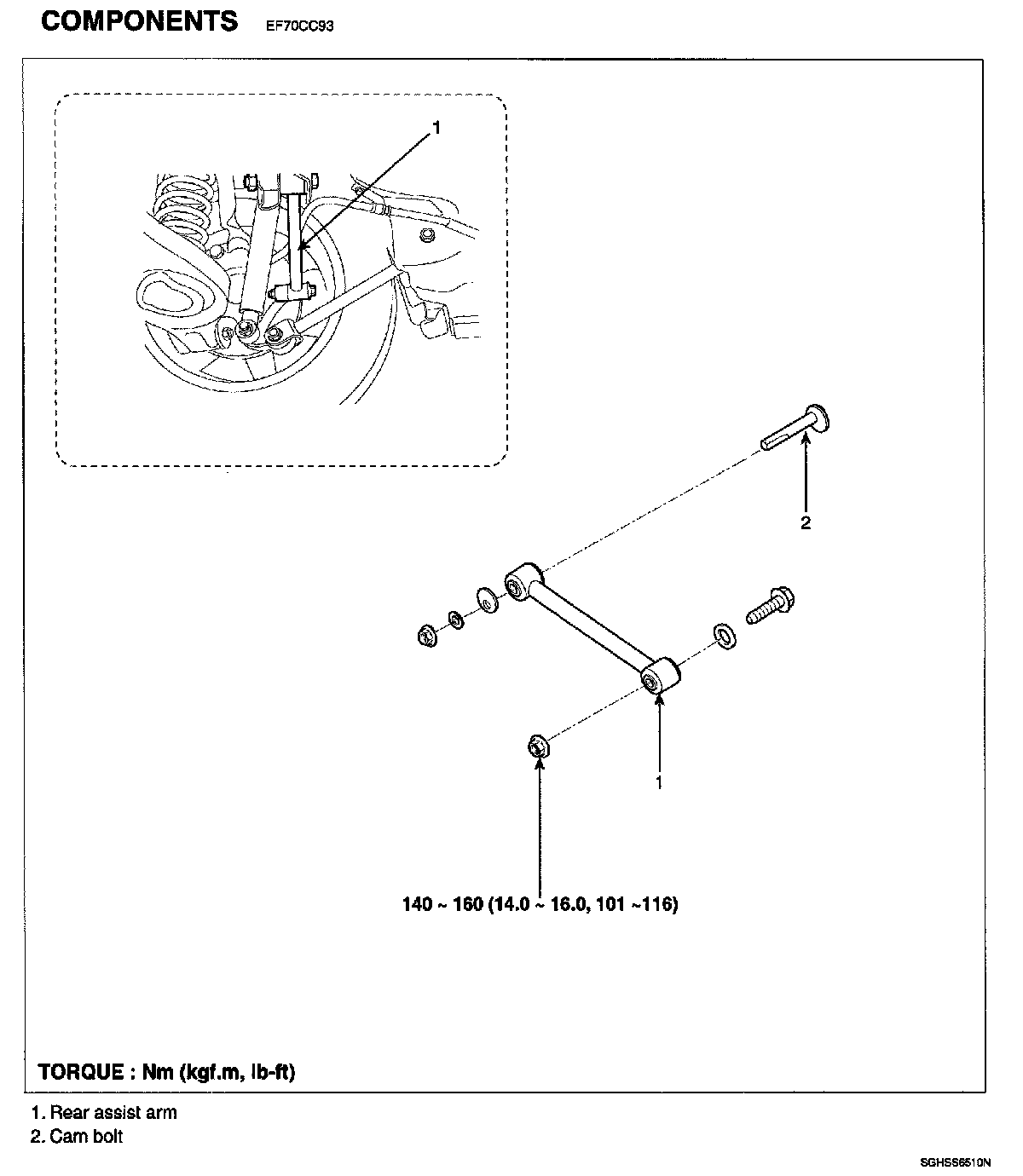

REAR ASSIST ARMCOMPONENTS:
REMOVAL
1. Remove the rear wheel & tire.

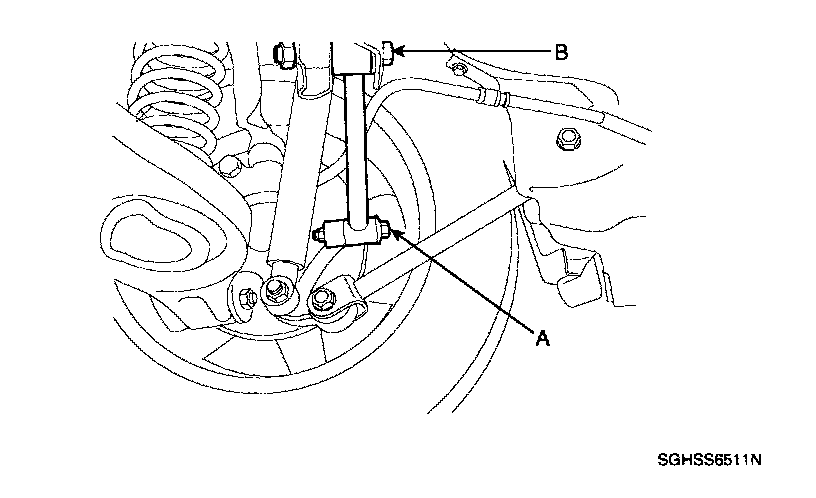

2. Remove the bolt (A) holding carrier to rear assist arm.
3. Remove the cam bolt (B) and assist arm by loosening the nut.
REMOVAL
1. Remove the rear wheel & tire.
2. Remove the bolt (A) holding carrier to rear assist arm.
3. Remove the cam bolt (B) and assist arm by loosening the nut.
