Front Lower Arm

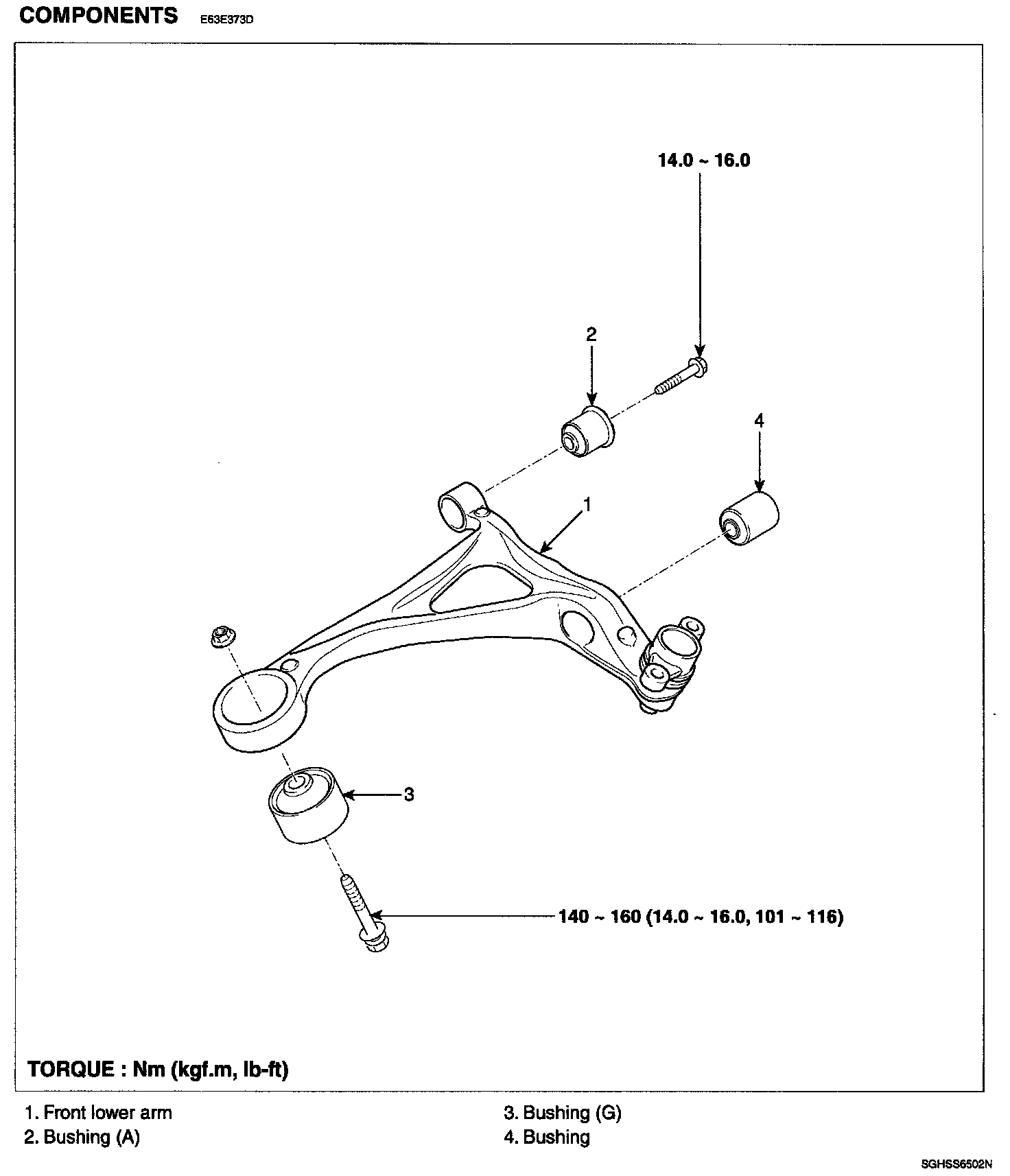

FRONT LOWER ARMCOMPONENTS:
REMOVAL
1. Remove the front wheel & tire.

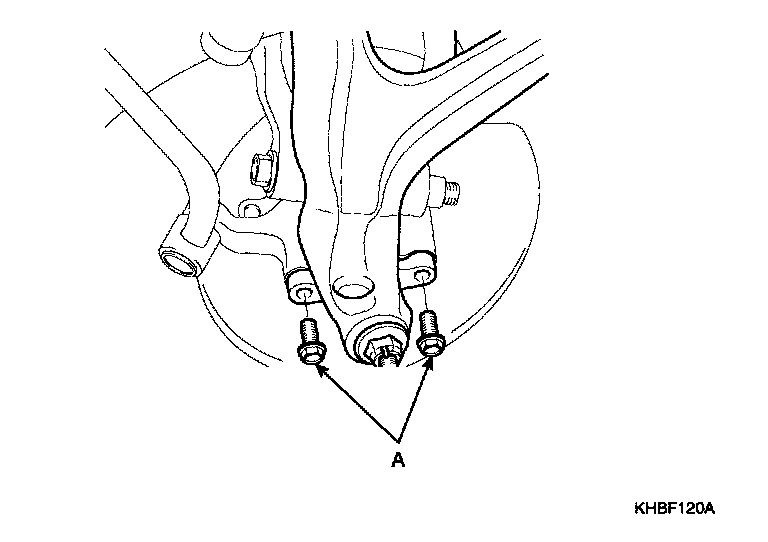

2. Disconnect the lower arm with knuckle by loosening the mounting bolts (A).

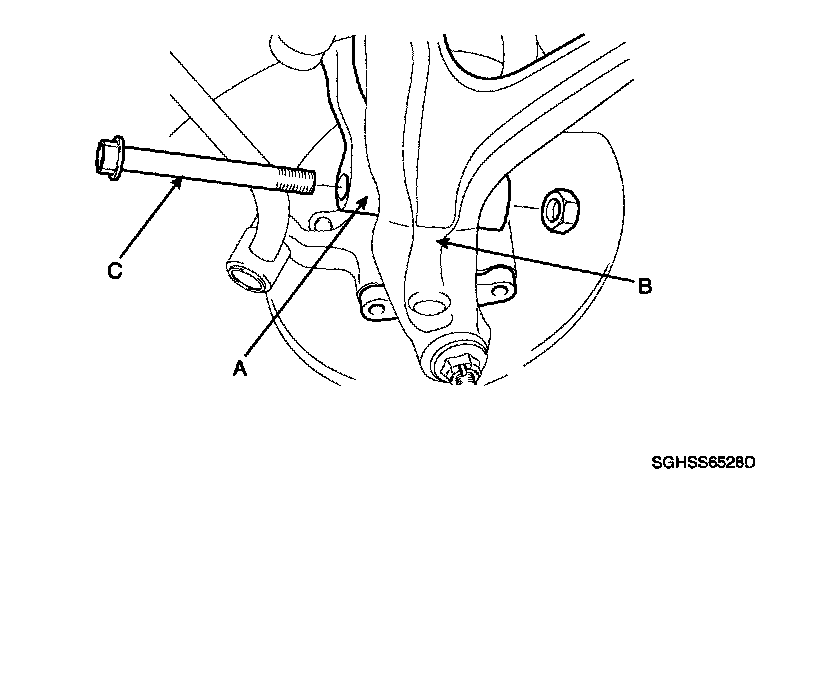

3. Remove the through bolt (C) and nut and then disconnect the mounting fork (A) with the lower arm (B).

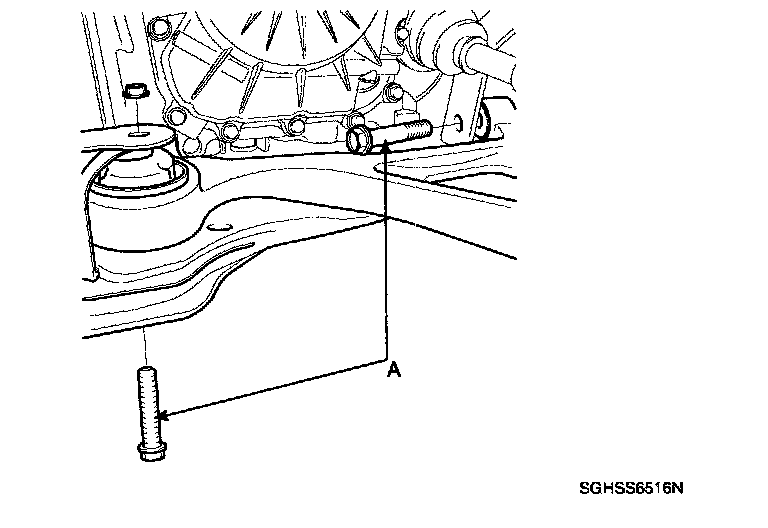

4. Loosen the bolts (A) and remove the lower arm from the sub-frame.
