Rear Upper Arm
REAR UPPER ARMINSTALLATION

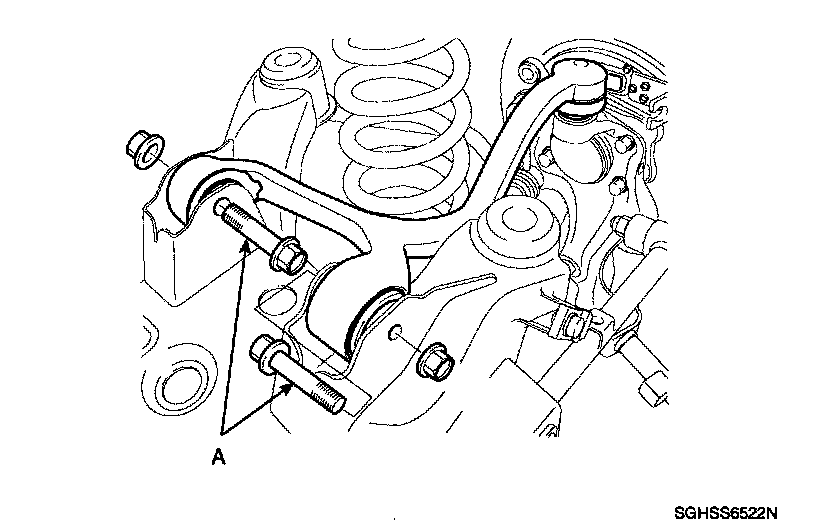

1. Install the rear upper arm to rear cross member and tighten the bolts (A) and nuts.
Tightening torque Nm (kgf.m, lb-ft): 100 - 120 (10.0 - 12.0, 72 - 87)

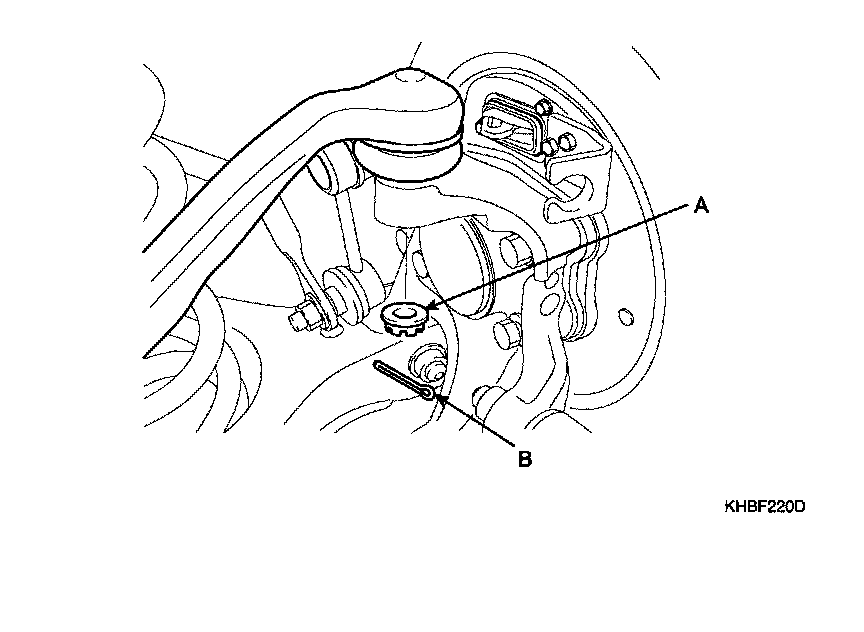

2. Connect the rear upper arm ball joint with carrier and then install the castle nut (A) and split pin (B).
Tightening torque Nm (kgf.m, lb-ft): 80 - 90 (8.0 - 9.0, 58 - 65)

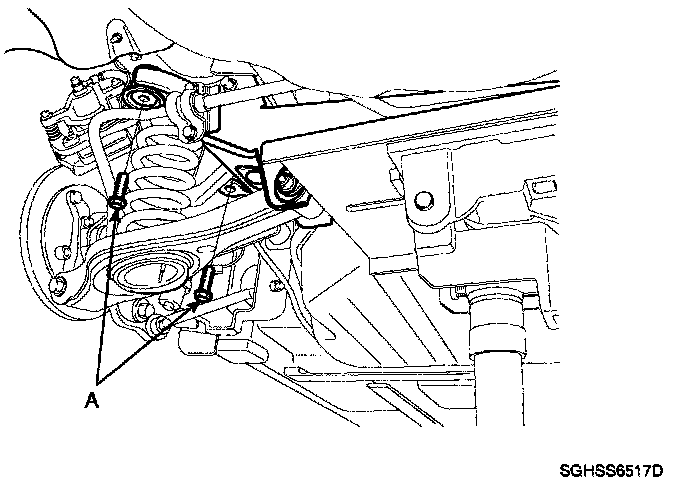

3. Install the rear cross member to body by tightening the mounting bolts (A).
Tightening torque Nm (kgf.m, lb-ft): 140 - 160 (14.0 - 16.0, 101 - 116)
4. Install the center and main muffler.

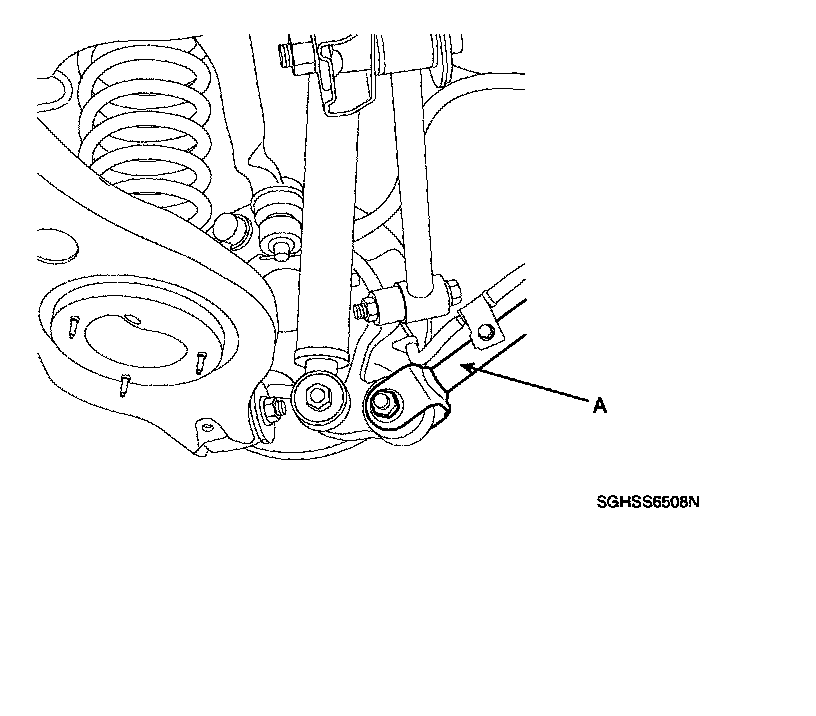

5. Connect the trailing arm (A) with carrier and then tighten the bolt and nut.
Tightening torque Nm (kgf.m, lb-ft): 140 - 160 (14.0 - 16.0, 101 - 116)

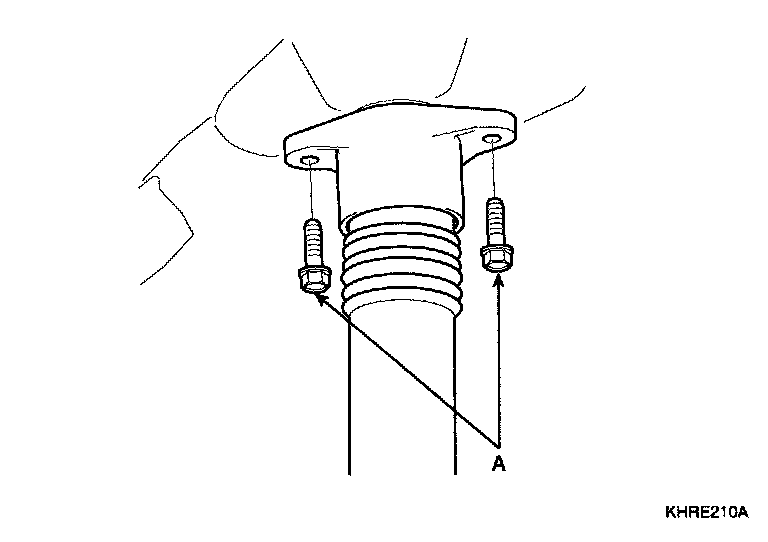

6. Install the rear shock absorber bracket to body and tighten the mounting bolts (A).
Tightening torque Nm (kgf.m, lb-ft):50 - 65 (5.0 - 6.5, 40 - 47)

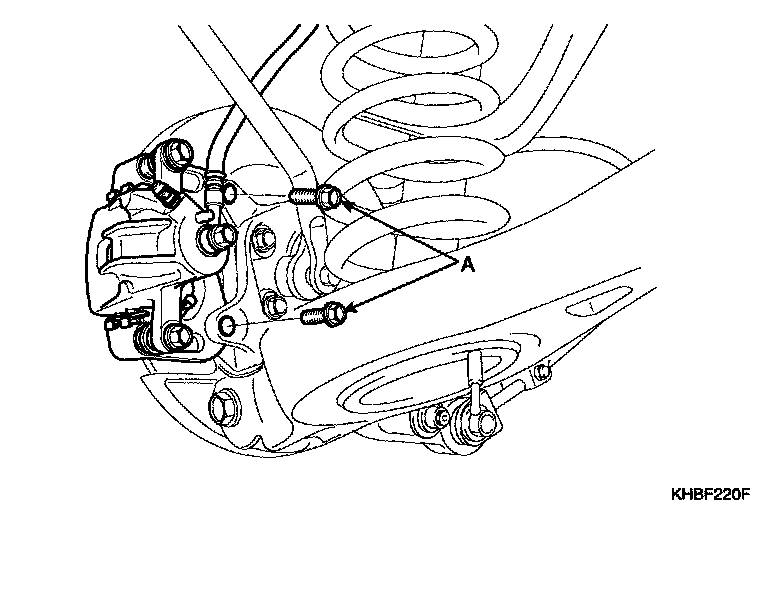

7. Install the rear caliper to carrier by tightening the mounting bolts (A).
Tightening torque Nm (kgf.m, lb-ft): 50 - 65 (5.0 - 6.5, 40 - 47)

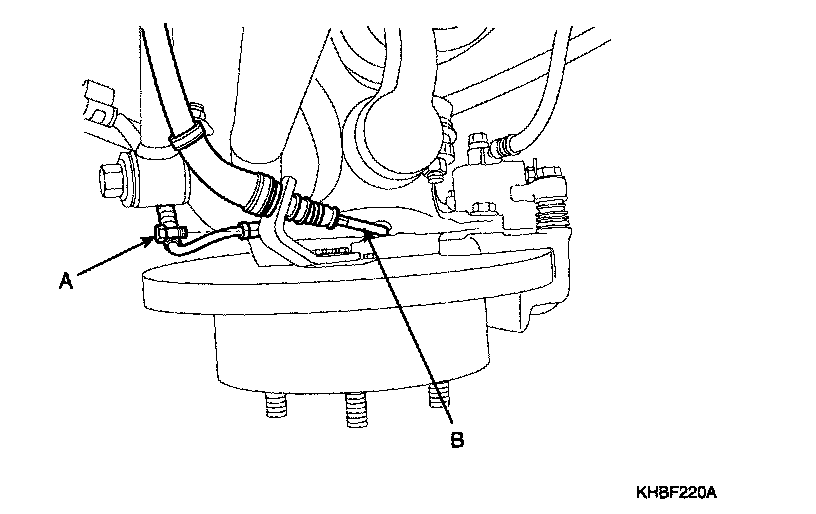

8. Install the parking brake cable (B) assembly and wheel speed sensor (A).
9. Install the rear wheel & tire.
Tightening torque Nm (kgf.m, lb-ft): 90 - 110 (9.0 - 11.0, 65 - 80)
